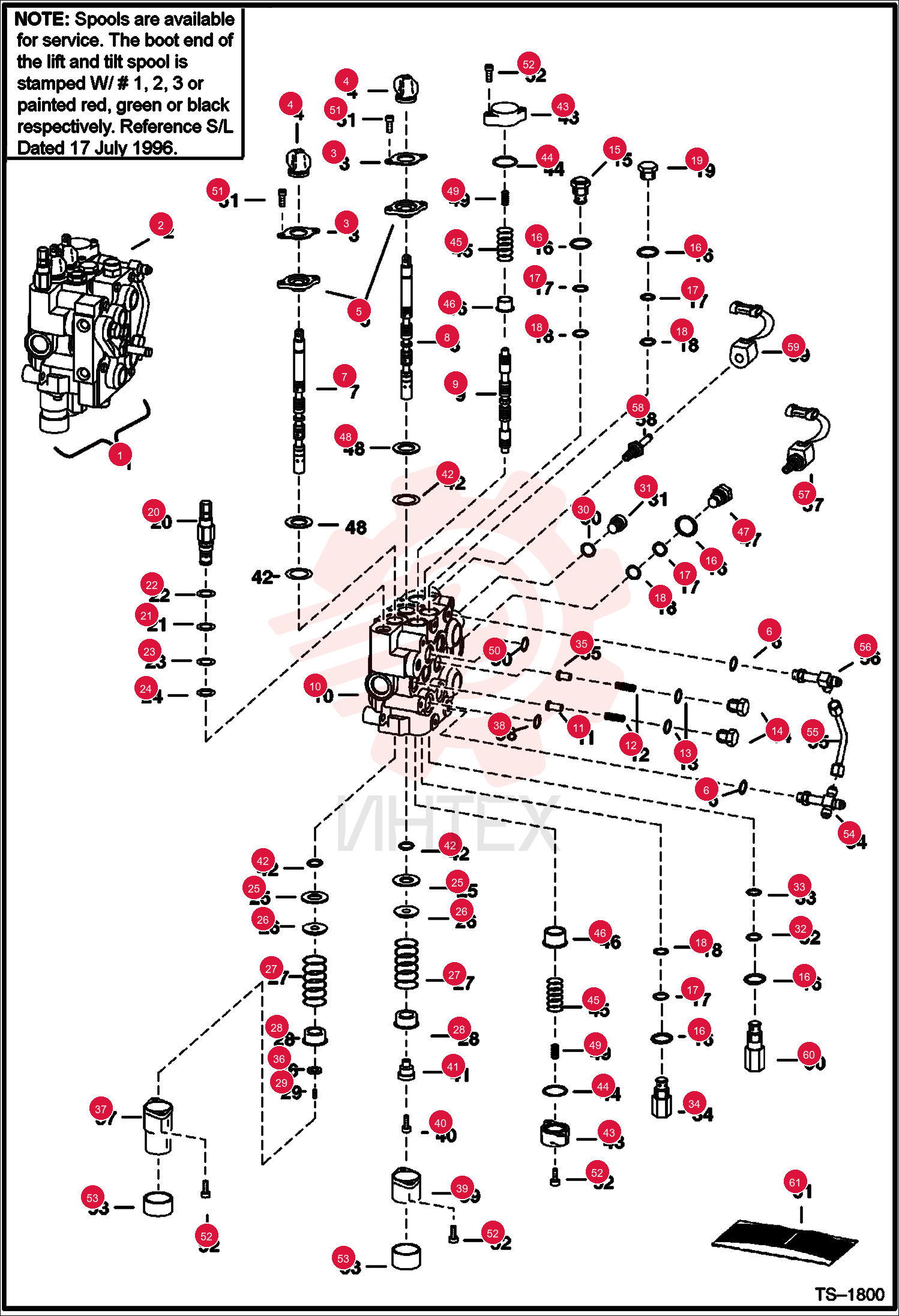

RETAINER 6589564 (5)
1 6589564
- 6589564 - RETAINER
2 6587763
- 6587763 - BOOT
3 6589565
- 6589565 - SEAL
4 99K6
- 99K6 - O-RING
- tapered boss face
5 7222716
- 7222716 - SPOOL
- LIFT
- lift - #1 or red - SEE NOTE - Was 6674297
6 7222717
- 7222717 - SPOOL
- LIFT
- lift - #2 or green - SEE NOTE - Was 6674298
7 7222718
- 7222718 - SPOOL
- LIFT
- lift - #3 or black - SEE NOTE - Was 6674299
8 6674302
- 6674302 - SPOOL
- tilt - # 3 or Black - SEE NOTE - Was 6805068
9 7108242
- 7108242 - SPOOL
- TILT
10 7300937
- 7300937 - SPOOL AUX
- auxiliary - SEE NOTE - Was 6588074
11 6592115
- 6592115 - SEAT
- load check
12 6592117
- 6592117 - SPRING
- LOAD CHECK
13 79K8
- 79K8 - O RING 10
14 6592116
- 6592116 - NUT
- load check
15 6667549
- 6667549 - VALVE
- CHECK
- anti-cavity check - W/Ref. 16-18
16 79K10
- 79K10 - O RING 10
17 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
18 58K014
- 58K014 - O-RING 10
- back-up washer required
19 6677106
- 6677106 - O-RING
- back-up washer not required
20 6599161
- 6599161 - VALVE
- RELIEF
- port relief - W/Ref. 16-18
21 6595663
- 6595663 - BUSHING
22 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
23 6587580
- 6587580 - SPRING
24 6592100
- 6592100 - COLLAR
25 6801167
- 6801167 - SPOOLPLUG
- plastic - 0.69" long
26 99K12
- 99K12 - O-RING
27 90K8
- 90K8 - PLUG
- W/Ref. 30 - SOCKET HEAD - Was 90KV00008B
28 6671583
- 6671583 - VALVE
- RELIEF
29 6596569
- 6596569 - SEAT
30 54K20002
- 54K20002 - O'RING 10
31 6803092
- 6803092 - BONNET
- .625 flange
32 55K12
- 55K12 - O'RING
33 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- Was 6587633
34 30G416
- 30G416 - BOLT
35 6592109
- 6592109 - ADAPTER
36 6683274
- 6683274 - SEAL
- SPOOL 10
- Was 6665846
37 6588781
- 6588781 - END CAP
- .87" thick
38 58K124
- 58K124 - O RING 10
39 6596332
- 6596332 - SPRING
40 7108780
- 7108780 - SLEEVE
- Was 6595951
41 6592720
- 6592720 - PLUG
- W/Ref. 16-18
42 1K127
- 1K127 - O-RING 10
- Was 93K127
43 6595131
- 6595131 - SPRING
- .72'' OD - Red
44 55K204
- 55K204 - O RING 10
45 29G412
- 29G412 - BOLT
46 29G416
- 29G416 - BOLT
- 1" long
47 6662848
- 6662848 - CAP
48 6817553
- 6817553 - CROSS
- W/Ref. 6 - tapered boss face - Was 6805241
49 6577690
- 6577690 - TUBELINE
50 6805243
- 6805243 - FITTING ELBOW
- W/Ref. 6 - tapered boss face - Tee - Was 6804360
51 6665084
- 6665084 - VALVE
- SOLENOID
- W/Ref. 58 & 59
52 6666616
- 6666616 - VALVE
- STEM SOLENOID
53 6586459
- 6586459 - SEAL KIT
54 6717706
- 6717706 - COIL
- 10 VOLT
- w/nut - pwm - 10 volt - Was 6666547
55 6676566
- 6676566 - NUT
56 6678552
- 6678552 - RELIEF VLV ANTI-CAV
- PORT RELIEF & ANTI-CAV. - W/Ref. 16
- 32
- 33 - 3500 PSI - USE IN TILT CYLINDER BASE END PORT - Was 6671632
57 6673904
- 6673904 - SEAL KIT
- W/Ref. 16
- 32
- 33
58 6816250
- 6816250 - KIT
- SEAL
- one spool - Ref. 4
- 42
- 48
- 51 & 52 - Was 6803605
59 6816253
- 6816253 - KIT
- SEAL
- complete - Ref. 4
- 13
- 16-18
- 21-24
- 42
- 44 & 50-52 - also Order 6816250 seal kit - Was 6809448
60 6632279
- 6632279 - KIT
- SEAL
- main relief - Ref. 21-24
61 6809425
- 6809425 - SEAL KIT
- Ref. 13 & 16-18 - Was 6586461
