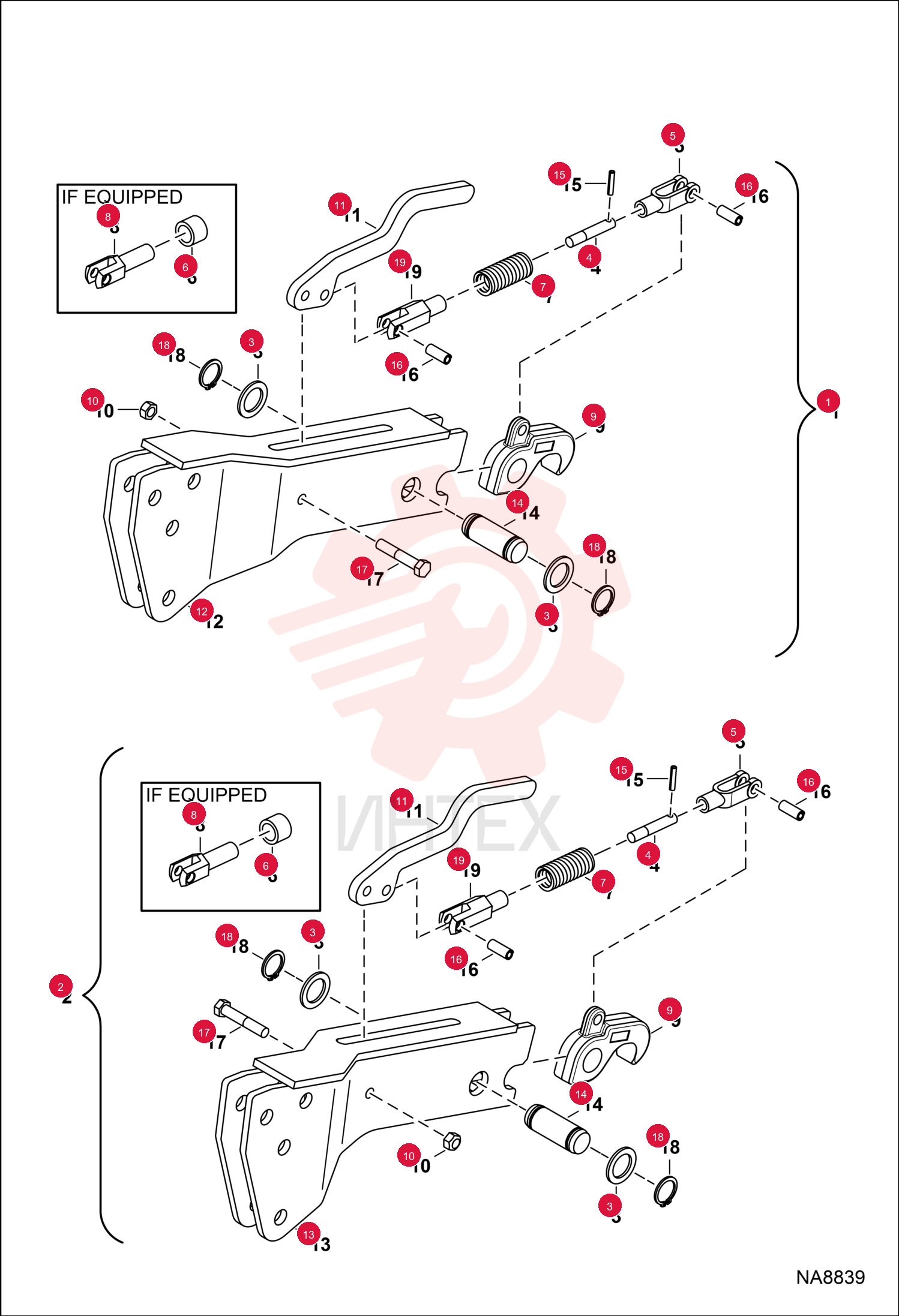

LATCH, BACKHOE 7250447 (2)

LATCH, BACKHOE 7250447 (2)

LATCH, BACKHOE 7250447 (2)

1 7250447

  • 7250447 - LATCH
  • BACKHOE
  • RH - Ref. 3-12 & 14-19

2 7250448

  • 7250448 - LATCH
  • BACKHOE
  • LH - Ref. 3-11 & 13-19

3 6532519

  • 6532519 - WASHER

4 6533158

  • 6533158 - ROD

5 6533159

  • 6533159 - CLEVIS

6 6533160

  • 6533160 - BUSHING
  • if equipped - Use W/Ref. 8

7 6578253

  • 6578253 - SPRING
  • COMPRESSION

8 6704248

  • 6704248 - PIVOT
  • WEDGE

9 6816819

  • 6816819 - LATCH

10 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

11 7172209

  • 7172209 - LATCH
  • BACKHOE

12 6812834

  • 6812834 - PIN
  • PIVOT

13 14J2520

  • 14J2520 - PIN

14 14J5020

  • 14J5020 - PIN
  • ROLL

15 17C844

  • 17C844 - BOLT

16 22J20

  • 22J20 - SNAP RING

17 7304045

  • 7304045 - PIVOT
  • WEDGE
