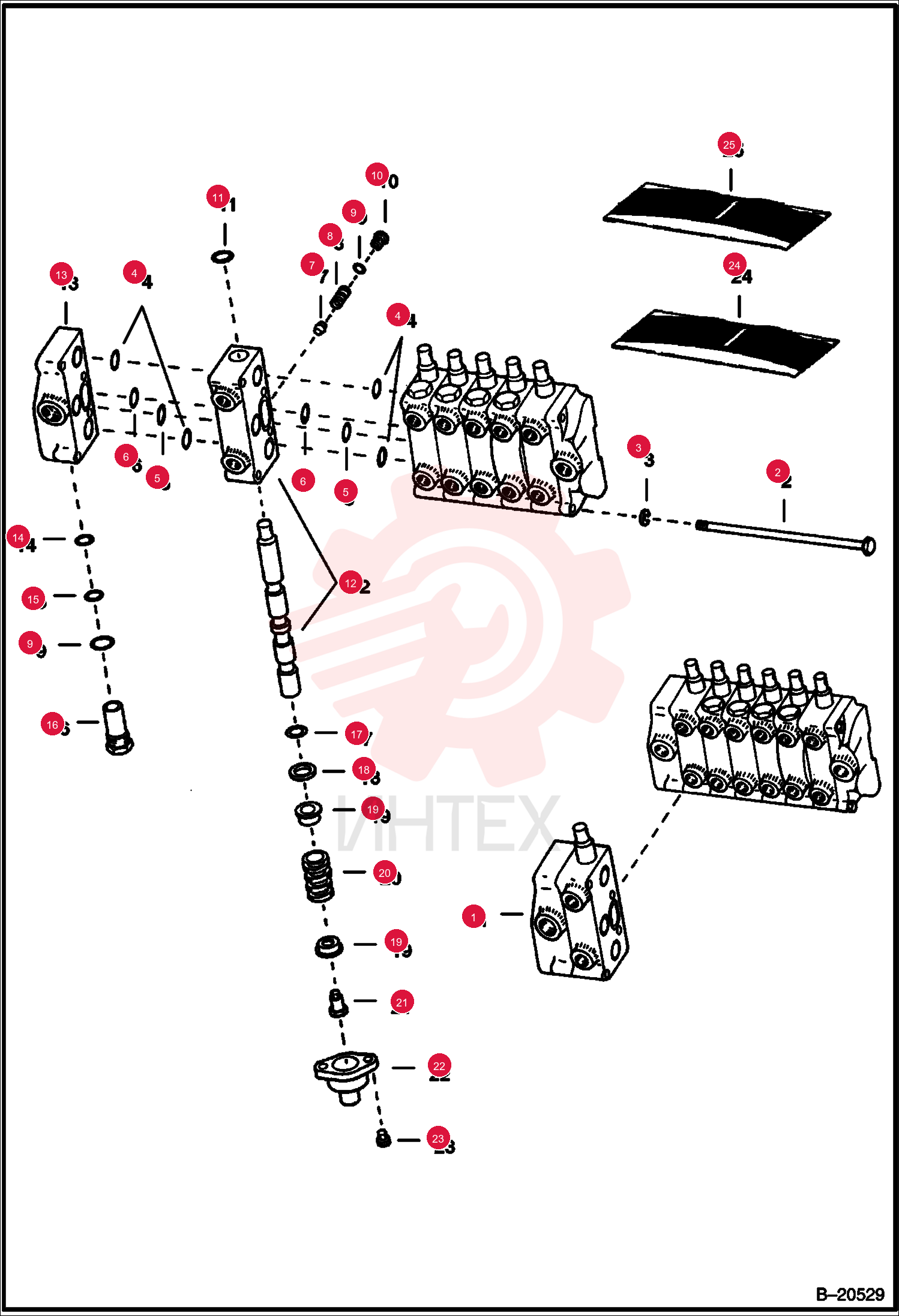

VALVE SEC 947632

VALVE SEC 947632

VALVE SEC 947632

1 947632

  • 947632 - VALVE SEC
  • stabilizer - R.H. - Ref. 7-12 & 17-23

2 947743

  • 947743 - BOLT

3 4E6

  • 4E6 - WASHER

4 25K20104

  • 25K20104 - O RING 10

5 58K28

  • 58K28 - O RING 10

6 58K024

  • 58K024 - O-RING 10

7 947717

  • 947717 - PLUNGER
  • lift check

8 947737

  • 947737 - SPRING

9 25K30028

  • 25K30028 - O RING 10

10 947759

  • 947759 - PLUG
  • W/Ref. 9

11 25K40024

  • 25K40024 - O RING 10

12 947636

  • 947636 - PLATE
  • port - R.H.

13 25K30030

  • 25K30030 - O RING 10

14 1550498

  • 1550498 - VALVE
  • relief - W/Ref. 9

15 25K30024

  • 25K30024 - O RING 10

16 947745

  • 947745 - RETAINER

17 947749

  • 947749 - WASHER

18 947738

  • 947738 - SPRING

19 947750

  • 947750 - SCREW

20 947710

  • 947710 - CAP ASSY

21 6631988

  • 6631988 - BOLT

22 948309

  • 948309 - KIT
  • stab. section - Ref. 9
  • 11 & 17

23 948311

  • 948311 - KIT
  • SEAL
  • between section - Ref. 4
  • 5 & 6 - one kit per valve bank
