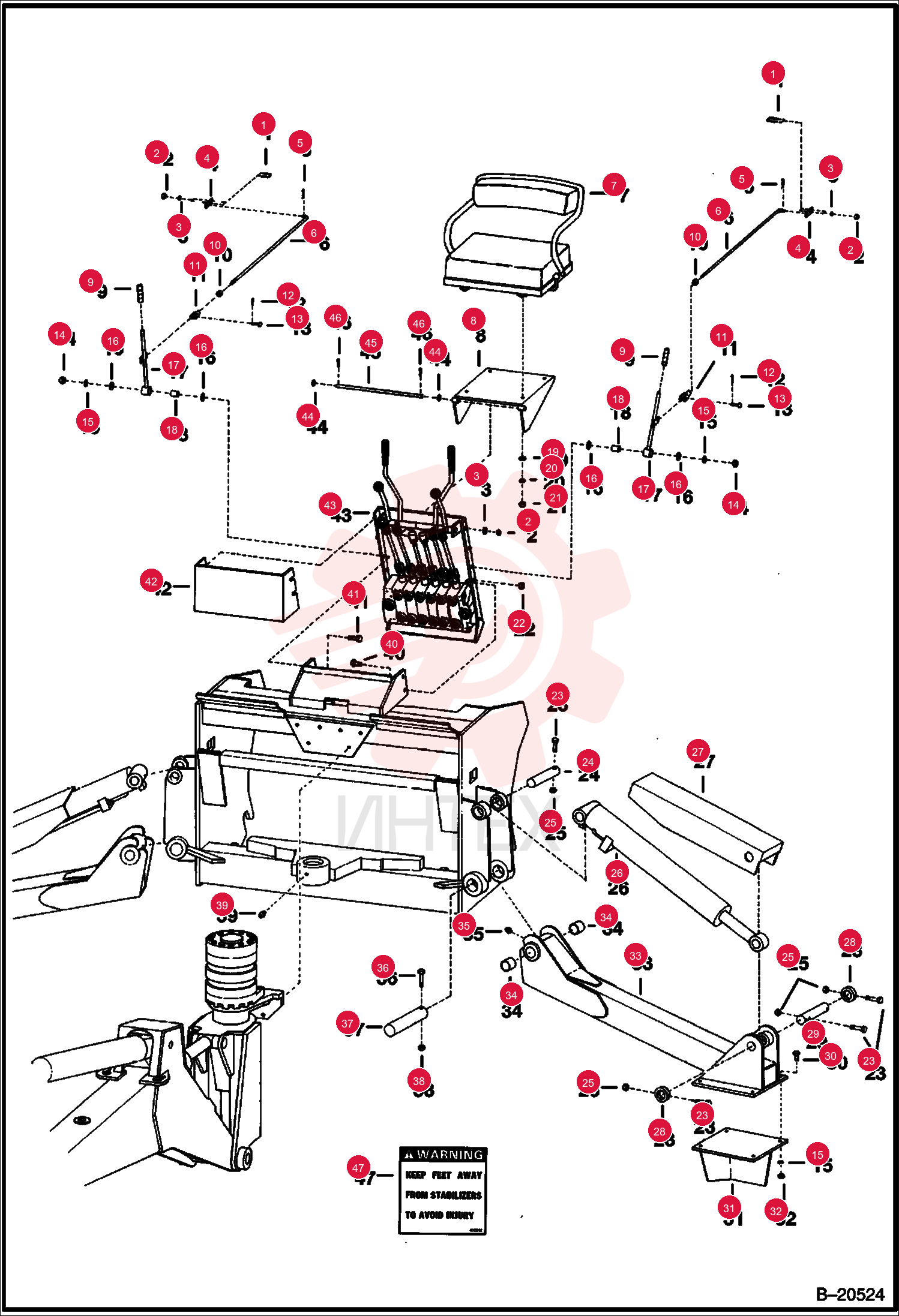

U BOLT 799674 (1)

U BOLT 799674 (1)

U BOLT 799674 (1)

1 799674

  • 799674 - U BOLT

2 62D4

  • 62D4 - NUT HEX FINISHED GR5

3 4E4

  • 4E4 - WASHER

4 6508441

  • 6508441 - FLAT

5 1318565

  • 1318565 - PIN 5

6 6592805

  • 6592805 - ROD
  • extended steering - Was 6508440

7 6515200

  • 6515200 - CUSHION
  • seat

8 6515201

  • 6515201 - CUSHION
  • back

9 6501961

  • 6501961 - PLATE

10 8D6

  • 8D6 - NUT HEX JAM

11 1F312

  • 1F312 - PIN

12 663350

  • 663350 - PIN
  • hinge

13 61D8

  • 61D8 - NUT 5

14 4E8

  • 4E8 - WASHER

15 25E21

  • 25E21 - WASHER FLAT PLAIN

16 6592803

  • 6592803 - LEVER
  • auxiliary steering

17 6508444

  • 6508444 - BUSHING

18 25E15

  • 25E15 - WASHER FLAT PLAIN

19 4E5

  • 4E5 - WASHER

20 62D5

  • 62D5 - NUT

21 81D8

  • 81D8 - NUT

22 18C648

  • 18C648 - BOLT

23 947670

  • 947670 - PIN
  • hinge

24 82D6

  • 82D6 - NUT

25 6508367

  • 6508367 - SHIELD

26 6508372

  • 6508372 - COLLAR
  • locking

27 6508370

  • 6508370 - PIN
  • hinge

28 18C824

  • 18C824 - BOLT

29 6515823

  • 6515823 - SPADE
  • stabilizer

30 62D8

  • 62D8 - NUT

31 6508545

  • 6508545 - LEG
  • stabilizer - W/Ref. 34 & 35

32 6508233

  • 6508233 - BUSHING

33 10H35

  • 10H35 - FTG GREASE STRAIGHT

34 18C872

  • 18C872 - SCREW

35 947669

  • 947669 - PIN
  • hinge

36 82D8

  • 82D8 - NUT

37 10H25

  • 10H25 - FTG GREASE STRAIGHT

38 17C816

  • 17C816 - BOLT

39 6504365

  • 6504365 - GUARD
  • hand controls

40 784469

  • 784469 - WASHER

41 6504391

  • 6504391 - PIN
  • hinge

42 1F416

  • 1F416 - PIN

43 6583862

  • 6583862 - DECAL
  • WARNING
  • Was 6562922
