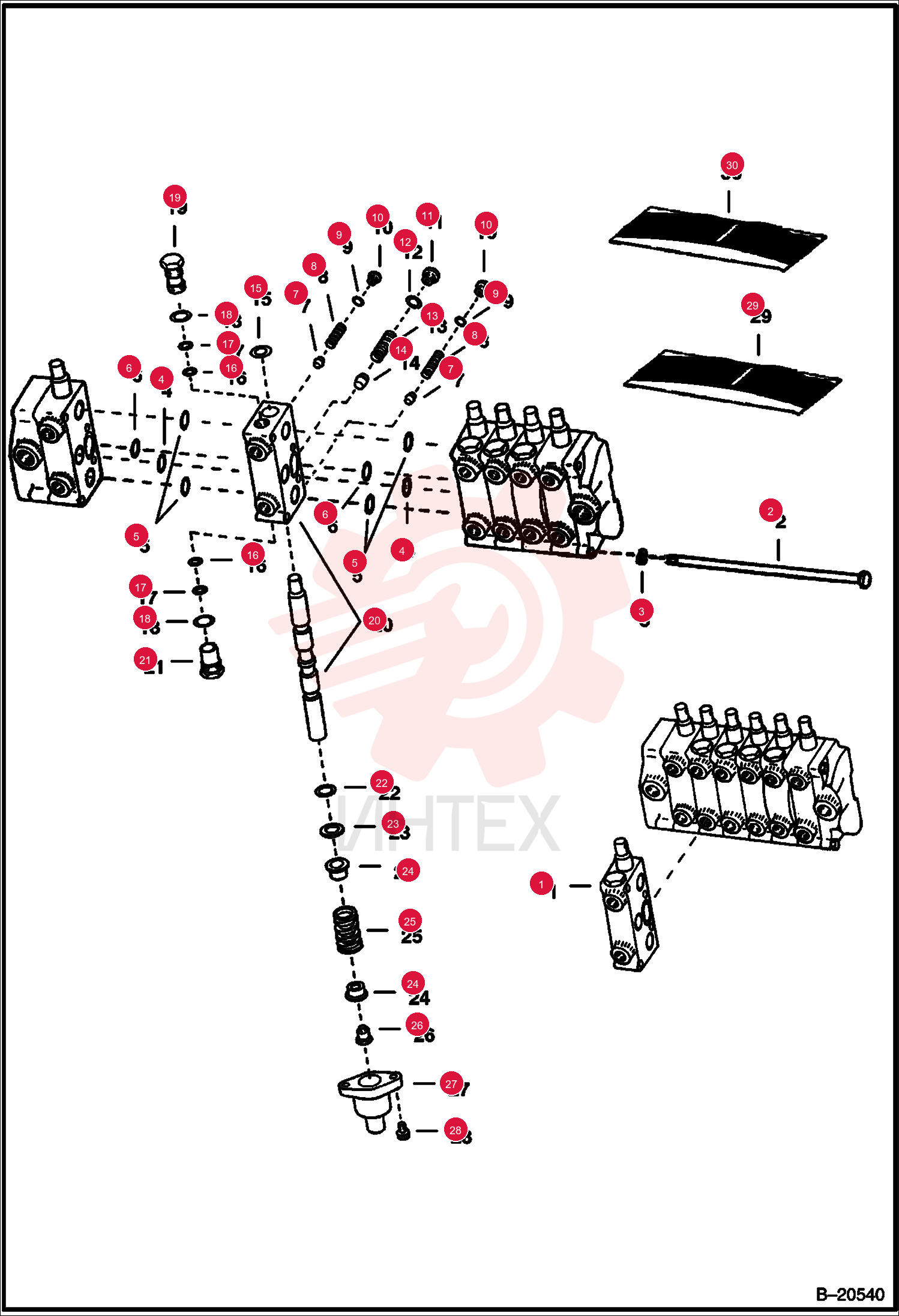

SECTION 947633 (1)
1 947633
- 947633 - SECTION
- Ref. 7-15
- 20 & 22-28
2 947743
- 947743 - BOLT
3 4E6
- 4E6 - WASHER
4 58K28
- 58K28 - O RING 10
5 25K20104
- 25K20104 - O RING 10
6 58K024
- 58K024 - O-RING 10
7 947718
- 947718 - PLUNGER
8 1550482
- 1550482 - SPRING
9 25K30016
- 25K30016 - O RING 10
10 6632473
- 6632473 - PLUG
- W/Ref. 9 - Was 947754B
11 947759
- 947759 - PLUG
- W/Ref. 12
12 25K30028
- 25K30028 - O RING 10
13 947737
- 947737 - SPRING
14 947717
- 947717 - PLUNGER
15 25K40024
- 25K40024 - O RING 10
16 25K30018
- 25K30018 - O RING 10
17 25K30026
- 25K30026 - O RING 10
18 947751
- 947751 - PLUG
- W/Ref. 18
19 25K30024
- 25K30024 - O RING 10
20 947745
- 947745 - RETAINER
21 947749
- 947749 - WASHER
22 947738
- 947738 - SPRING
23 947750
- 947750 - SCREW
24 947710
- 947710 - CAP ASSY
25 6631988
- 6631988 - BOLT
26 948308
- 948308 - KIT
- Ref. 12
- 15 - 15 & 22
27 948311
- 948311 - KIT
- SEAL
- between sections - Ref. 4-6 - one kit per valve bank
