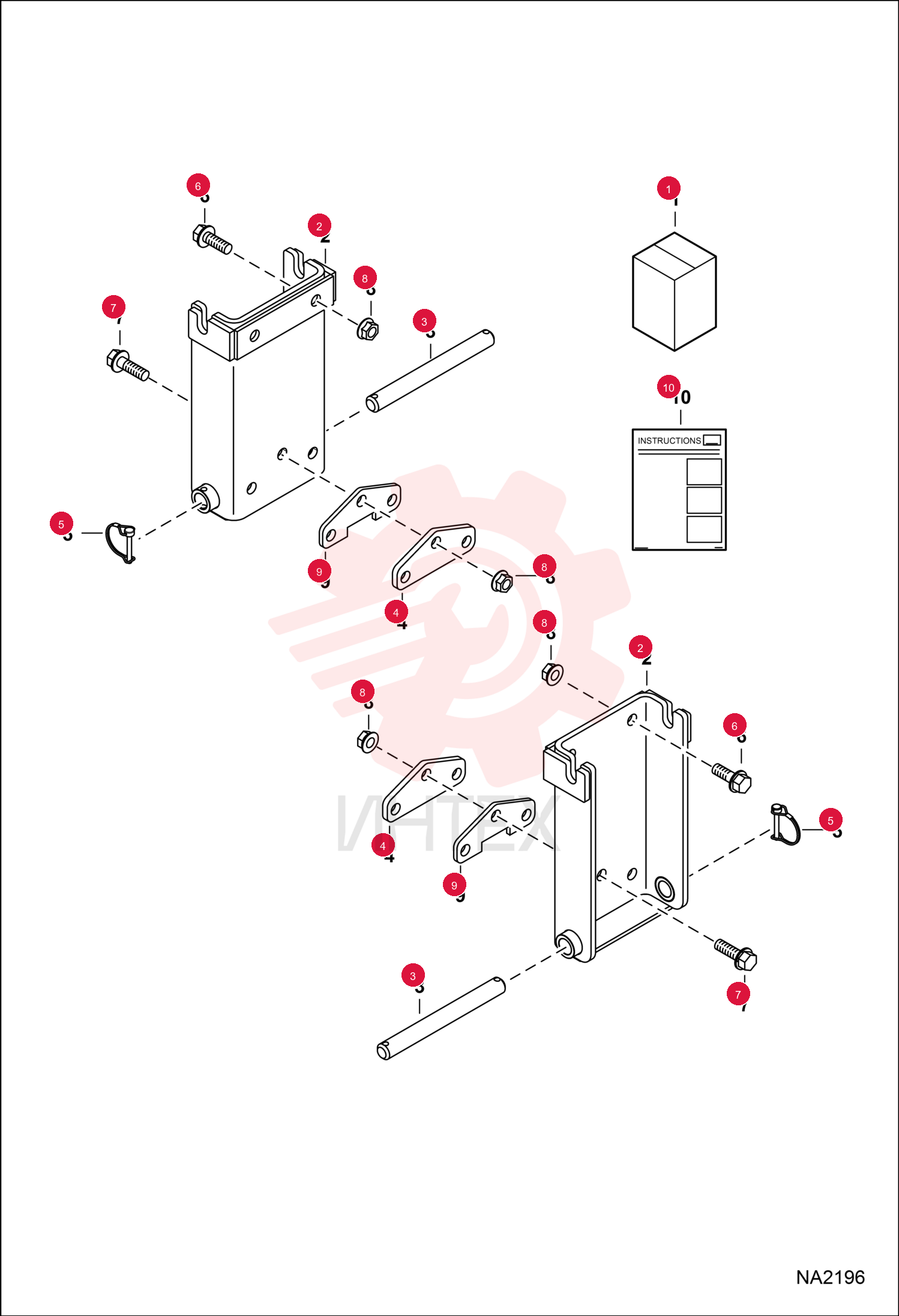

MOUNT STABILIZER 7342770

MOUNT STABILIZER 7342770

MOUNT STABILIZER 7342770

1 7342770

  • 7342770 - MOUNT STABILIZER
  • Was 7152506

2 6811474

  • 6811474 - PIN

3 7152510

  • 7152510 - PLATE

4 6656009

  • 6656009 - PIN

5 31C1028

  • 31C1028 - BOLT 5

6 31C1032

  • 31C1032 - BOLT

7 53D10

  • 53D10 - NUT

8 7251909

  • 7251909 - PLATE

9 6987307ENUS

  • 6987307ENUS - INSTRUCTIONS
  • Was 6987307
