R360LC-7A
/
Гидравлическая система
/

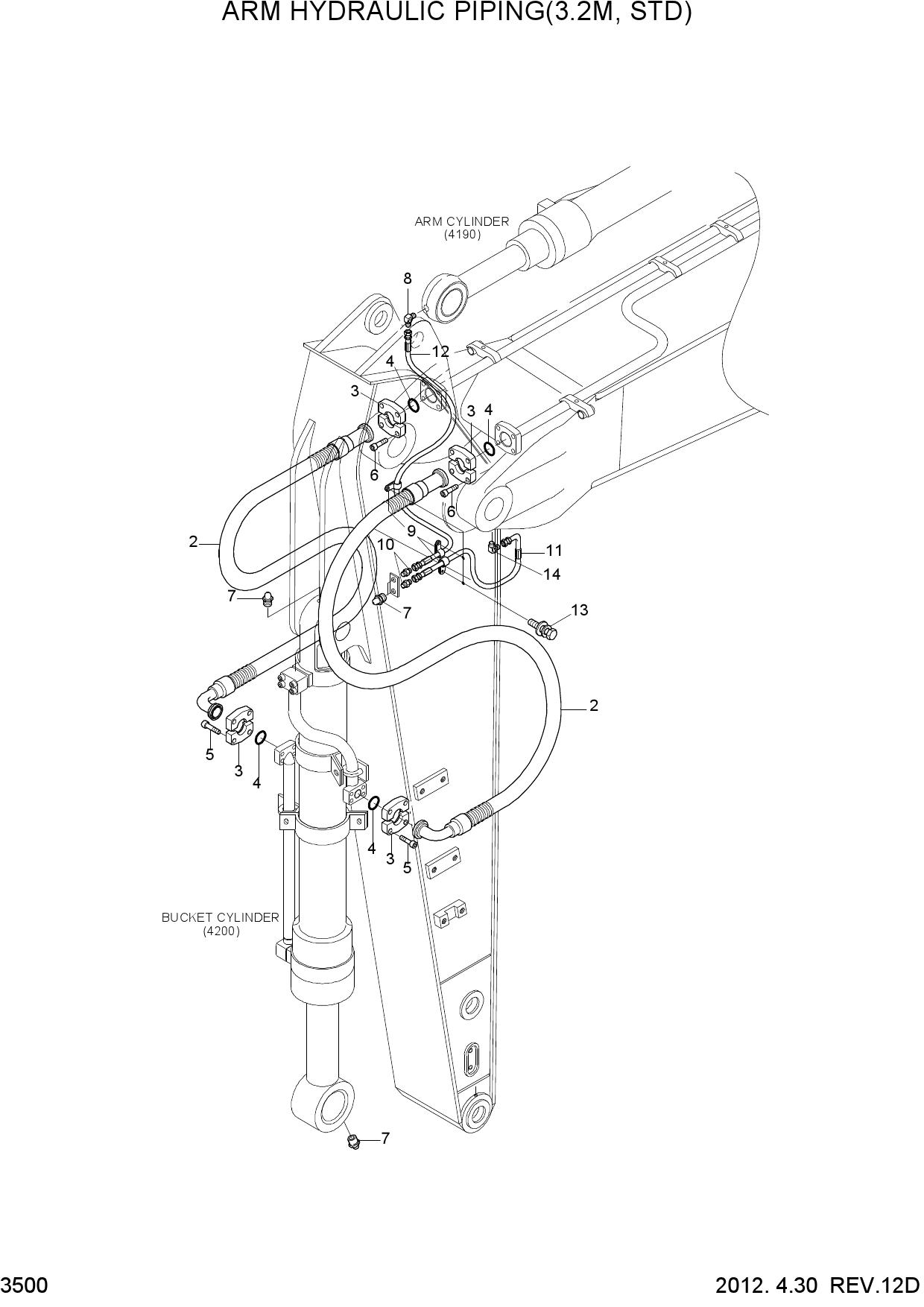

ARM HYDRAULIC PIPING(3.2M, STD)

ARM HYDRAULIC PIPING(3.2M, STD)

ARM HYDRAULIC PIPING(3.2M, STD)

1 31NA-61011

  • 31NA-61011 - HOSE ASSY-FLG 0X90
  • Поз.: 2

2 31NA-61012

  • 31NA-61012 - HOSE ASSY-FLG 0X90
  • Поз.: 2

3 31NA-61013

  • 31NA-61013 - HOSE ASSY
  • Поз.: 2

4 P174-200106

  • P174-200106 - FLANGE-SPLIT
  • Поз.: 3

5 Y171-027004

  • Y171-027004 - O-RING
  • Поз.: 4

6 S109-120456

  • S109-120456 - BOLT-SOCKET
  • Поз.: 5

7 S109-100456

  • S109-100456 - BOLT-SOCKET
  • Поз.: 6

8 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 7

9 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 7

10 31NB-50280

  • 31NB-50280 - ELBOW-90
  • Поз.: 8

11 31N8-50370

  • 31N8-50370 - CLAMP-HOSE
  • Поз.: 9

12 P010-430011

  • P010-430011 - CONNECTOR
  • Поз.: 10

13 P840-042014

  • P840-042014 - HOSE ASSY-SYN THD
  • Поз.: 11

14 P840-042027

  • P840-042027 - HOSE ASSY-SYN THD
  • Поз.: 12

15 S035-062026

  • S035-062026 - BOLT-W/WASHER
  • Поз.: 13

16 61E7-0059

  • 61E7-0059 - ELBOW-90
  • Поз.: 14
