Гусеничные экскаваторы
/
R360LC-7A
/
Гидравлическая система
/

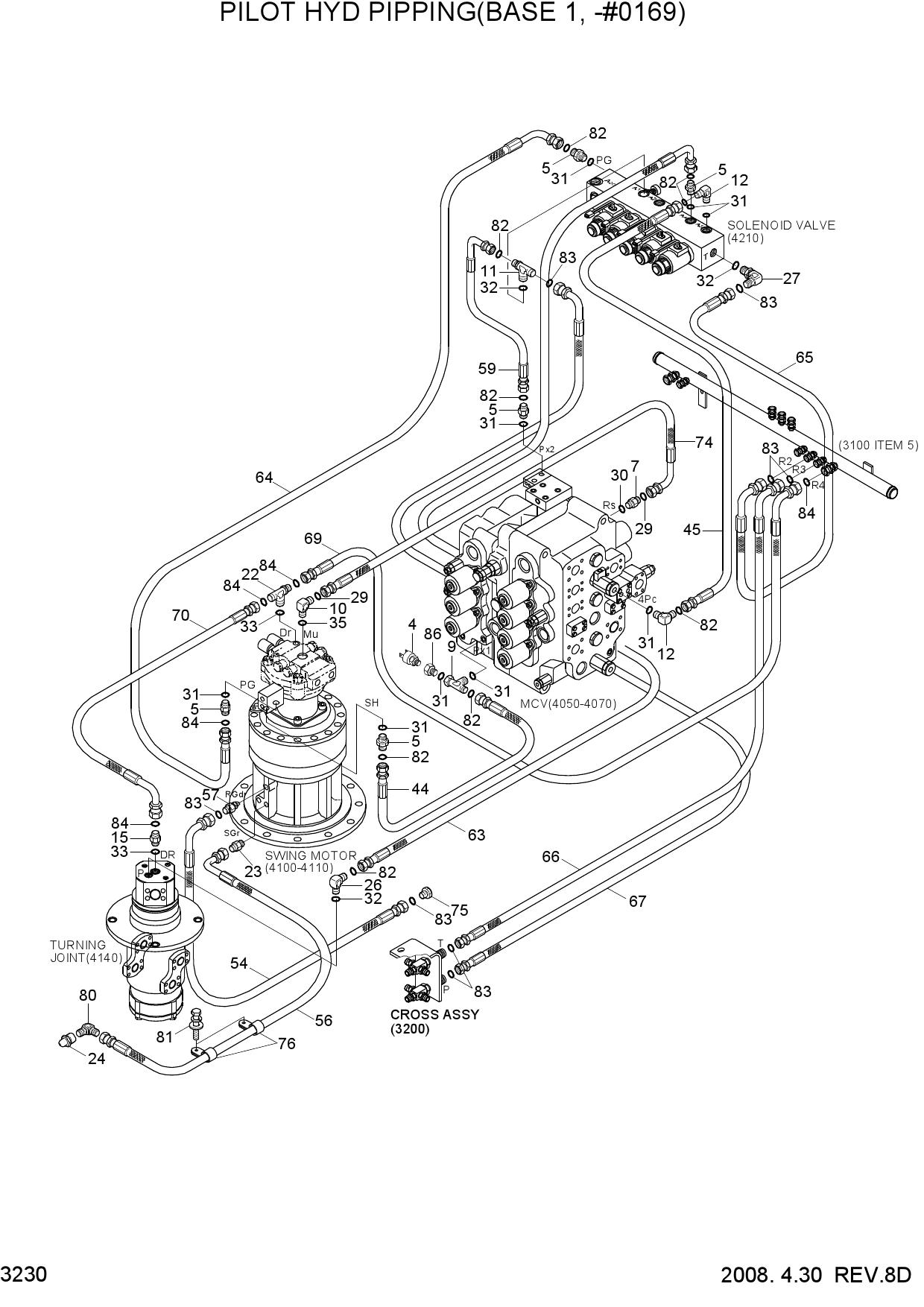

PILOT HYD PIP(BASE 1,MCV TYPE1,-#0169)

PILOT HYD PIP(BASE 1,MCV TYPE1,-#0169)

PILOT HYD PIP(BASE 1,MCV TYPE1,-#0169)

1 31NA-20080

  • 31NA-20080 - SWITCH-PRESSURE
  • Поз.: 4

2 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 5

3 X500-110005

  • X500-110005 - CONNECTOR-ORFS
  • Поз.: 7

4 31NA-22310

  • 31NA-22310 - TEE-BRANCH TYPE
  • Поз.: 9

5 X520-110020

  • X520-110020 - ELBOW-90
  • ORFS
  • Поз.: 10

6 X820-065251

  • X820-065251 - TEE-R/TYPE
  • ORFS
  • Поз.: 11

7 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 12

8 X500-110003

  • X500-110003 - CONNECTOR-ORFS
  • Поз.: 15

9 X820-085353

  • X820-085353 - TEE-R/TYPE
  • ORFS
  • Поз.: 22

10 P010-430011

  • P010-430011 - CONNECTOR
  • Поз.: 23

11 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 24

12 X500-110012

  • X500-110012 - CONNECTOR-ORFS
  • Поз.: 26

13 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 27

14 S621-021001

  • S621-021001 - O-RING
  • Поз.: 29

15 S631-029004

  • S631-029004 - O-RING
  • Поз.: 30

16 S631-011004

  • S631-011004 - O-RING
  • Поз.: 31

17 S631-014004

  • S631-014004 - O-RING
  • Поз.: 32

18 S631-018004

  • S631-018004 - O-RING
  • Поз.: 33

19 S631-038004

  • S631-038004 - O-RING
  • Поз.: 35

20 X400-042036

  • X400-042036 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 44

21 X400-042052

  • X400-042052 - HOSE ASSY-SYNF
  • ORFS(0X0)
  • Поз.: 45

22 P930-062020

  • P930-062020 - HOSE ASSY-ORFS 0X90
  • Поз.: 54

23 P860-042025

  • P860-042025 - HOSE ASSY-SYN 0X90
  • Поз.: 56

24 X500-430002

  • X500-430002 - CONNECTOR-ORFS
  • Поз.: 57

25 X420-042045

  • X420-042045 - HOSE ASSY-ORFS 0X90
  • Поз.: 59

26 X420-042062

  • X420-042062 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 63

27 X420-042067

  • X420-042067 - HOSE ASSY-ORFS 0X90
  • Поз.: 64

28 X420-062048

  • X420-062048 - HOSE ASSY-ORFS 0X90
  • Поз.: 65

29 X400-062050

  • X400-062050 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 66

30 X400-062077

  • X400-062077 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 67

31 P930-082022

  • P930-082022 - HOSE ASSY-ORFS 0X90
  • Поз.: 69

32 P930-082034

  • P930-082034 - HOSE ASSY-ORFS 0X90
  • Поз.: 70

33 31NA-22350

  • 31NA-22350 - HOSE ASSY
  • Поз.: 74

34 X700-100103

  • X700-100103 - PLUG-ORFS
  • Поз.: 75

35 S543-160002

  • S543-160002 - CLAMP-TUBE
  • Поз.: 76

36 31NB-50280

  • 31NB-50280 - ELBOW-90
  • Поз.: 80

37 S037-101522

  • S037-101522 - BOLT-W/WASHER
  • Поз.: 81

38 S621-011001

  • S621-011001 - O-RING
  • Поз.: 82

39 S621-012001

  • S621-012001 - O-RING
  • Поз.: 83

40 S621-014001

  • S621-014001 - O-RING
  • Поз.: 84

41 31NB-20190

  • 31NB-20190 - ELBOW-90
  • ORFS
  • Поз.: 86
