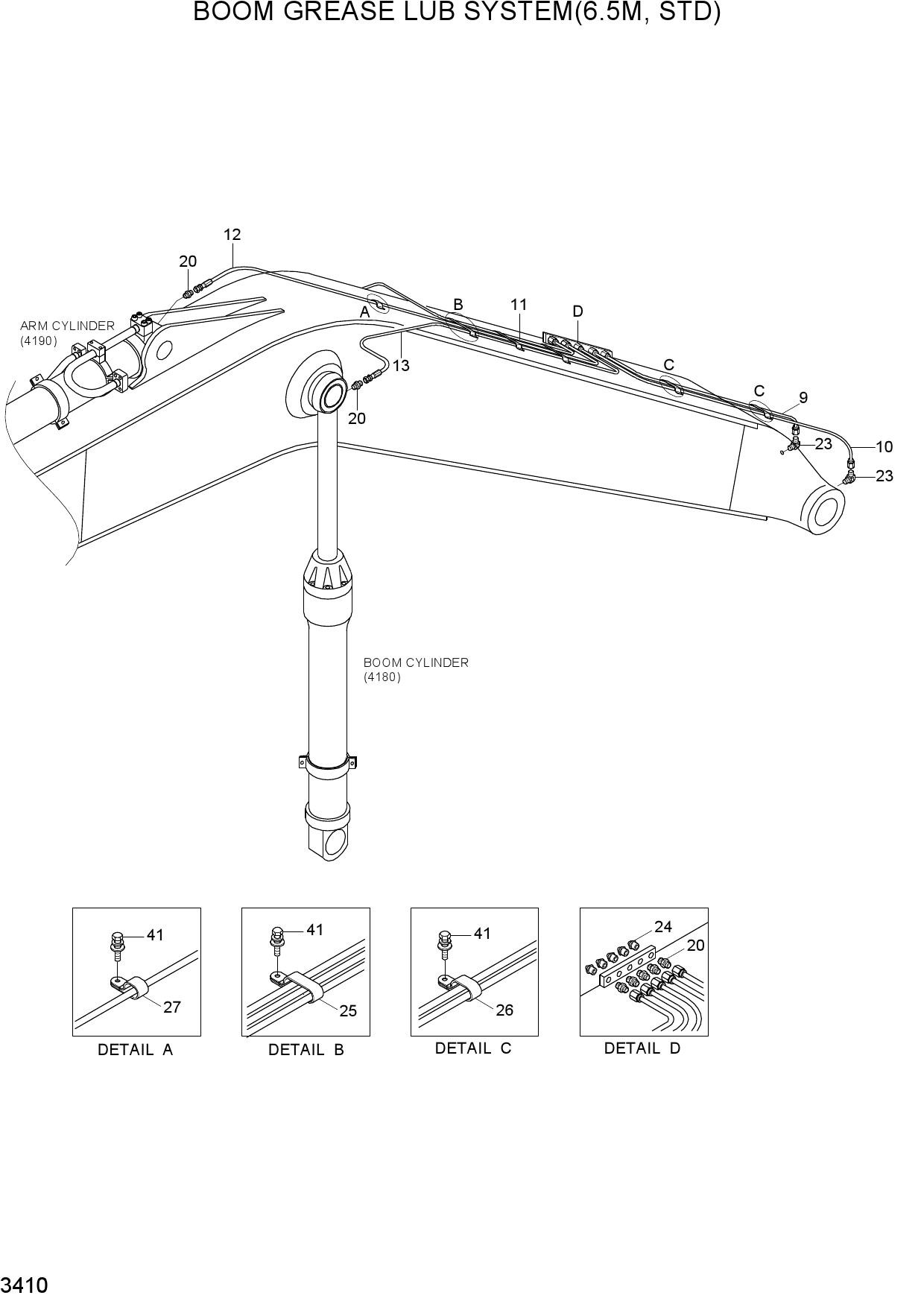

BOOM GREASE LUB SYSTEM(6.5M, STD)

BOOM GREASE LUB SYSTEM(6.5M, STD)

BOOM GREASE LUB SYSTEM(6.5M, STD)

1 P840-042025

  • P840-042025 - HOSE ASSY-SYN THD
  • Поз.: 9

2 P840-042026

  • P840-042026 - HOSE ASSY-SYN THD
  • Поз.: 10

3 P840-042052

  • P840-042052 - HOSE ASSY-SYN THD
  • Поз.: 11

4 P840-042065

  • P840-042065 - HOSE ASSY-SYN THD
  • Поз.: 12

5 P840-042054

  • P840-042054 - HOSE ASSY-SYN THD
  • Поз.: 13

6 P010-430011

  • P010-430011 - CONNECTOR
  • Поз.: 20

7 31NB-50280

  • 31NB-50280 - ELBOW-90
  • Поз.: 23

8 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 24

9 31N8-50390

  • 31N8-50390 - CLAMP-HOSE
  • Поз.: 25

10 31N8-50380

  • 31N8-50380 - CLAMP-HOSE
  • Поз.: 26

11 31N8-50370

  • 31N8-50370 - CLAMP-HOSE
  • Поз.: 27

12 S035-062022

  • S035-062022 - BOLT-W/WASHER
  • Поз.: 41
