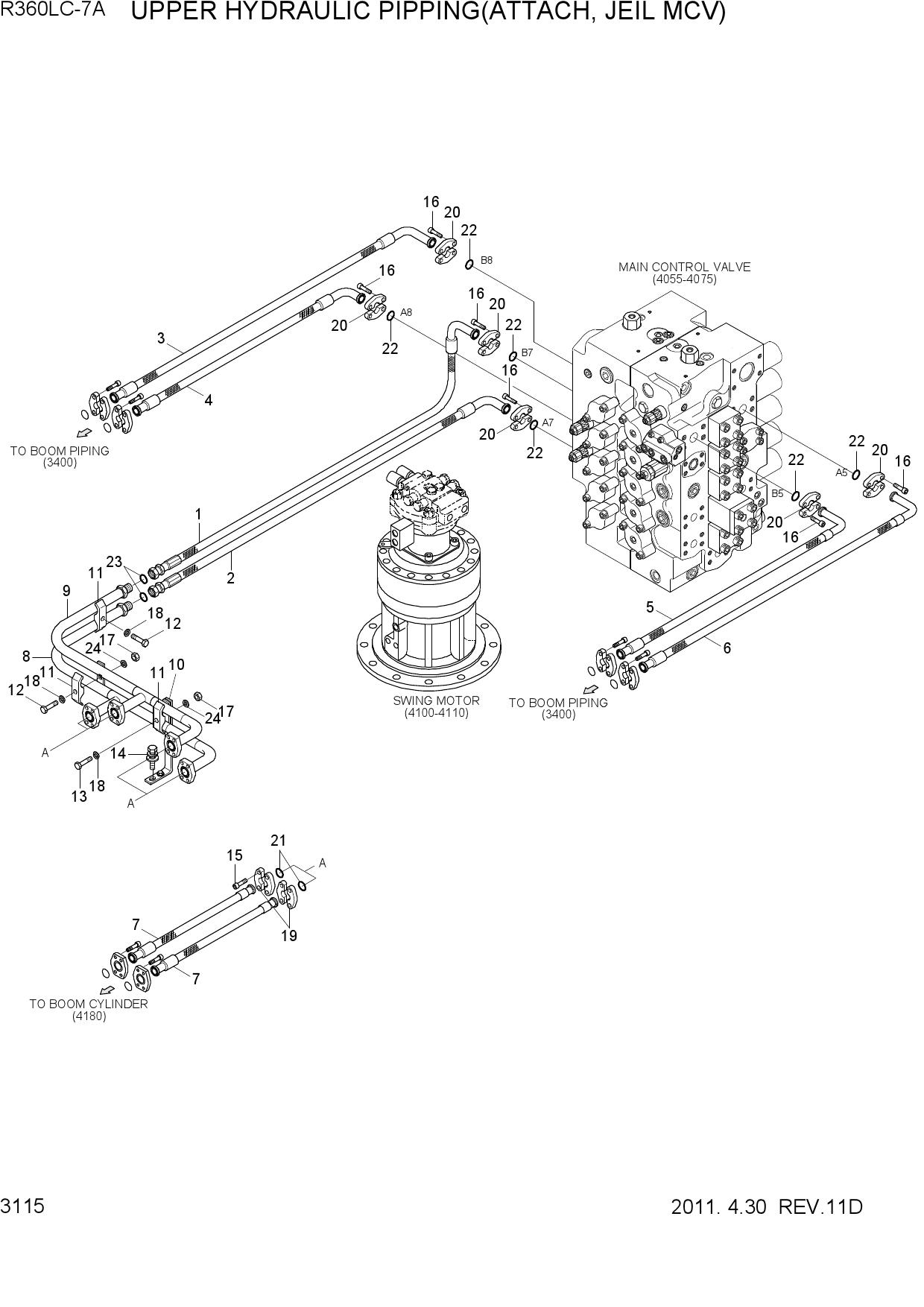

UPPER HYD PIPING(ATTACH, MCV TYPE 3)

UPPER HYD PIPING(ATTACH, MCV TYPE 3)

UPPER HYD PIPING(ATTACH, MCV TYPE 3)

1 31NA-14310

  • 31NA-14310 - HOSE ASSY
  • Поз.: 1

2 31NA-14311

  • 31NA-14311 - HOSE ASSY
  • Поз.: 1

3 31NA-14320

  • 31NA-14320 - HOSE ASSY
  • Поз.: 2

4 31NA-14321

  • 31NA-14321 - HOSE ASSY
  • Поз.: 2

5 31NA-14331

  • 31NA-14331 - HOSE ASSY
  • Поз.: 3

6 31NA-14341

  • 31NA-14341 - HOSE ASSY
  • Поз.: 4

7 31NA-14351

  • 31NA-14351 - HOSE ASSY
  • Поз.: 5

8 31NA-14361

  • 31NA-14361 - HOSE ASSY
  • Поз.: 6

9 31NA-13101

  • 31NA-13101 - HOSE ASSY
  • Поз.: 7

10 31NA-13102

  • 31NA-13102 - HOSE ASSY-FLG(0X0)
  • Поз.: 7

11 31NA-12560

  • 31NA-12560 - PIPE WA-BOOM"LC"
  • Поз.: 8

12 31NA-12570

  • 31NA-12570 - PIPE WA-BOOM "SC"
  • Поз.: 9

13 31NA-13090

  • 31NA-13090 - BRACKET-BOOM PIPE
  • Поз.: 10

14 31EM-12170

  • 31EM-12170 - CLAMP-PIPE
  • Поз.: 11

15 S017-100706

  • S017-100706 - BOLT-HEX
  • Поз.: 12

16 S017-100856

  • S017-100856 - BOLT-HEX
  • Поз.: 13

17 S037-103026

  • S037-103026 - BOLT-W/WASHER
  • Поз.: 14

18 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 15

19 S109-120406

  • S109-120406 - BOLT-SOCKET
  • Поз.: 16

20 S205-10100B

  • S205-10100B - NUT-HEX
  • Поз.: 17

21 S411-100006

  • S411-100006 - WASHER-SPRING
  • Поз.: 18

22 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 19

23 P174-200106

  • P174-200106 - FLANGE-SPLIT
  • Поз.: 20

24 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 21

25 Y171-027004

  • Y171-027004 - O-RING
  • Поз.: 22

26 S621-021001

  • S621-021001 - O-RING
  • Поз.: 23

27 S403-10100B

  • S403-10100B - WASHER-PLAIN
  • Поз.: 24
