R360LC-7A
/
Гидравлическая система
/

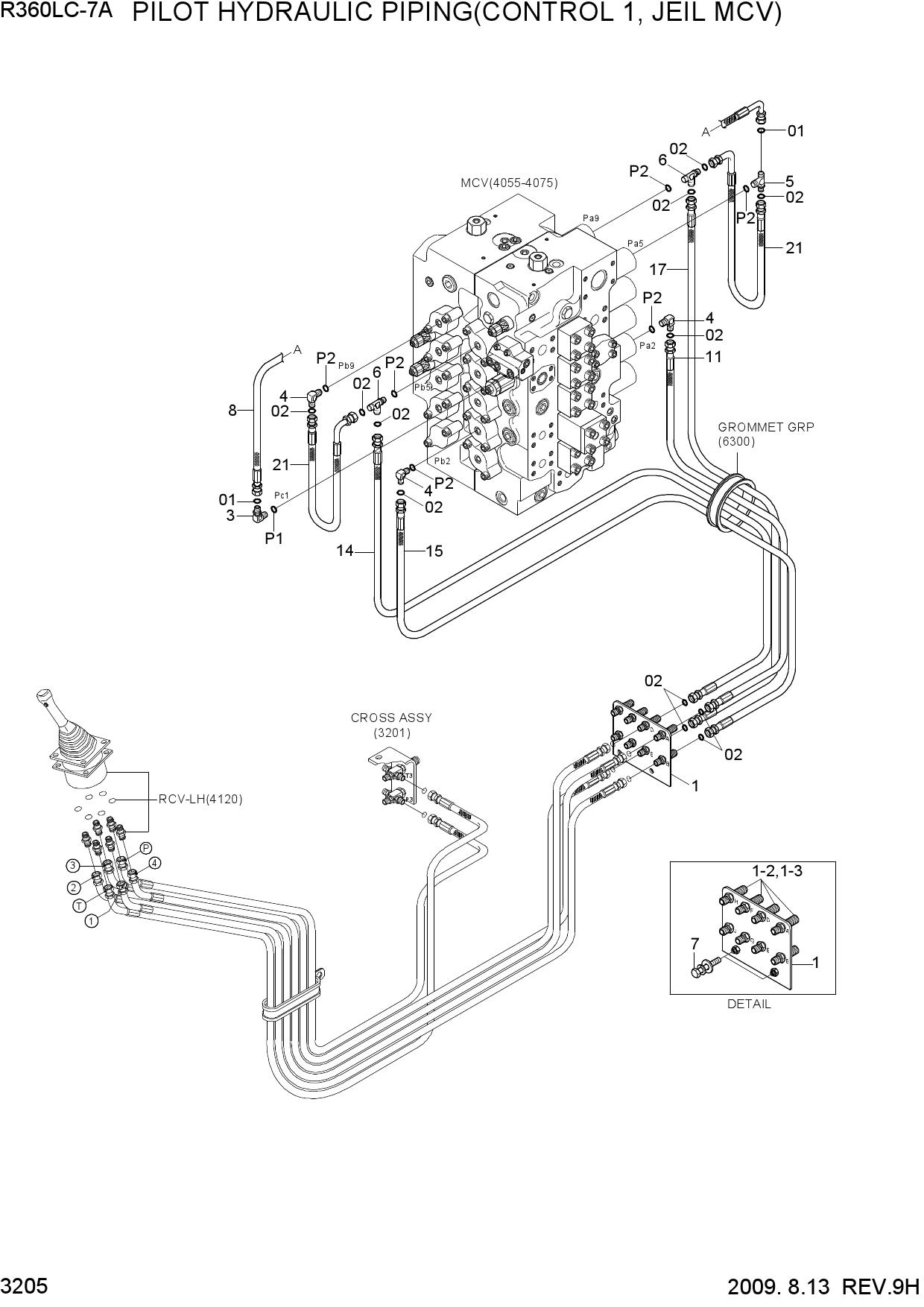

PILOT HYD PIP(CNTL 1,MCV TYPE 3,#0443-)

PILOT HYD PIP(CNTL 1,MCV TYPE 3,#0443-)

PILOT HYD PIP(CNTL 1,MCV TYPE 3,#0443-)

1 31NB-20011

  • 31NB-20011 - TERMINAL ASSY
  • Поз.: 001

2 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 3

3 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 4

4 X820-065251

  • X820-065251 - TEE-R/TYPE
  • ORFS
  • Поз.: 5

5 X820-065252

  • X820-065252 - TEE-R/TYPE
  • ORFS
  • Поз.: 6

6 S037-102526

  • S037-102526 - BOLT-W/WASHER
  • Поз.: 7

7 X420-042018

  • X420-042018 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 8

8 X400-062024

  • X400-062024 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 11

9 X400-062023

  • X400-062023 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 11

10 X400-062038

  • X400-062038 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 14

11 X400-062037

  • X400-062037 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 14

12 X400-062032

  • X400-062032 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 15

13 X400-062030

  • X400-062030 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 17

14 X420-062009

  • X420-062009 - HOSE ASSY-ORFS 0X90
  • Поз.: 21

15 S621-011001

  • S621-011001 - O-RING
  • Поз.: 001

16 S621-012001

  • S621-012001 - O-RING
  • Поз.: 002
