R360LC-7A
/
Гидравлическая система
/

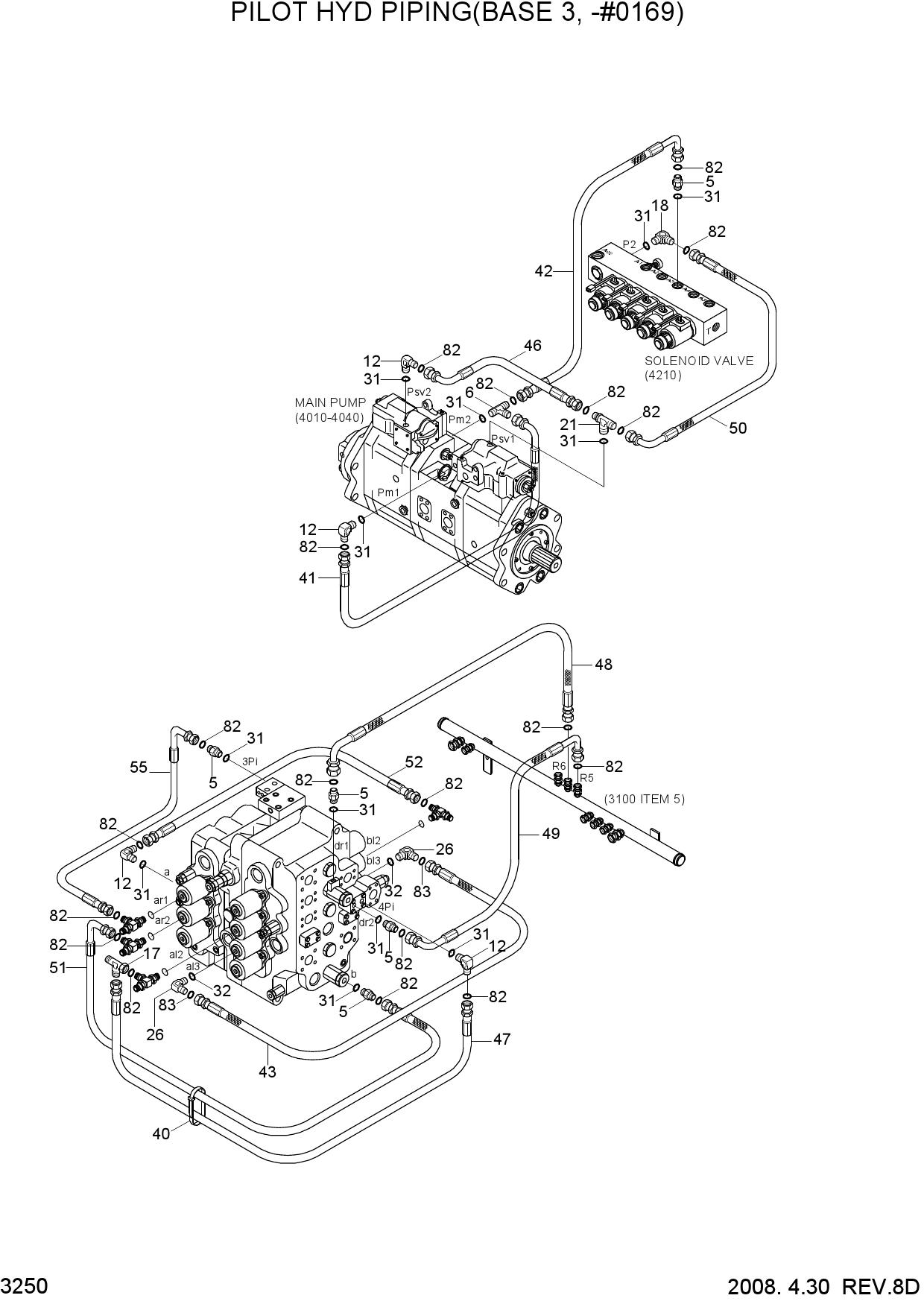

PILOT HYD PIP(BASE 3,MCV TYPE1,-#0169)

PILOT HYD PIP(BASE 3,MCV TYPE1,-#0169)

PILOT HYD PIP(BASE 3,MCV TYPE1,-#0169)

1 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 5

2 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 6

3 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 12

4 X840-525152

  • X840-525152 - TEE-R/TYPE
  • SWIVEL
  • ORFS
  • Поз.: 17

5 X530-110001

  • X530-110001 - ELBOW-45
  • ORFS
  • Поз.: 18

6 X810-045151

  • X810-045151 - TEE-B/TYPE
  • ORFS
  • Поз.: 21

7 X520-110012

  • X520-110012 - ELBOW-90
  • ORFS
  • Поз.: 26

8 S631-011004

  • S631-011004 - O-RING
  • Поз.: 31

9 S631-014004

  • S631-014004 - O-RING
  • Поз.: 32

10 S551-050203

  • S551-050203 - CLAMP-BAND
  • Поз.: 40

11 X420-042013

  • X420-042013 - HOSE ASSY-ORFS 0X90
  • Поз.: 41

12 X400-042018

  • X400-042018 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 42

13 X400-042024

  • X400-042024 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 43

14 X410-042008

  • X410-042008 - HOSE ASSY-ORFS 0X45
  • Поз.: 46

15 X400-042021

  • X400-042021 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 47

16 X420-042009

  • X420-042009 - HOSE ASSY-ORFS 0X90
  • Поз.: 48

17 X420-042025

  • X420-042025 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 50

18 X420-042015

  • X420-042015 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 51

19 X420-042018

  • X420-042018 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 52

20 X420-042023

  • X420-042023 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 55

21 S621-011001

  • S621-011001 - O-RING
  • Поз.: 82

22 S621-012001

  • S621-012001 - O-RING
  • Поз.: 83
