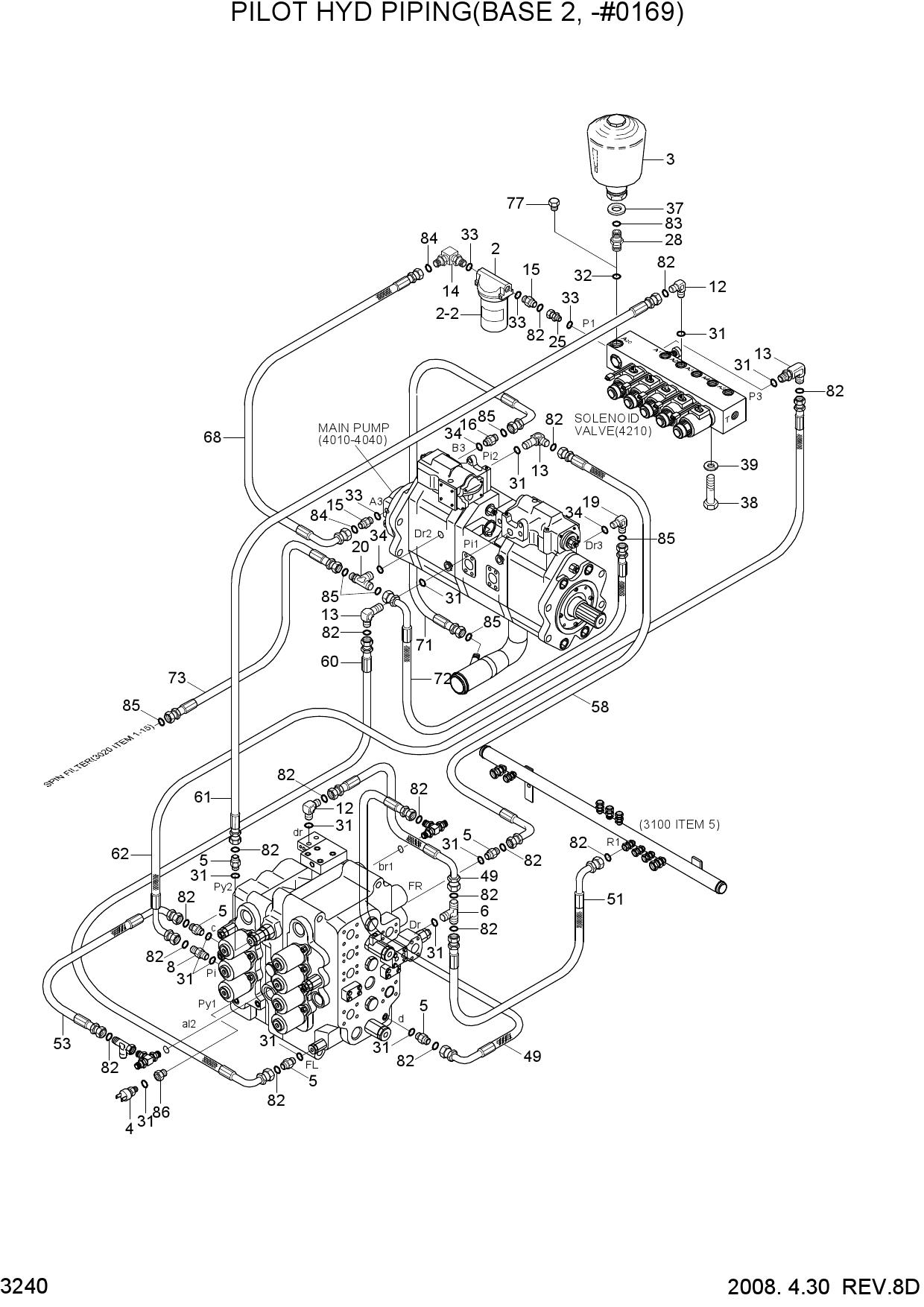

PILOT HYD PIP(BASE 2,MCV TYPE1,-#0169)

PILOT HYD PIP(BASE 2,MCV TYPE1,-#0169)

PILOT HYD PIP(BASE 2,MCV TYPE1,-#0169)

1 31E3-0017

  • 31E3-0017 - FILTER-LINE
  • Поз.: 2

2 31MH-20310

  • 31MH-20310 - FILTER-LINE
  • Поз.: 2

3 31E3-0044

  • 31E3-0044 - BODY
  • Поз.: 2-1

4 31E3-0018

  • 31E3-0018 - ELEMENT-LINE FILTER
  • Поз.: 2-2

5 31MH-20320

  • 31MH-20320 - ELEMENT-LINE FILTER
  • Поз.: 2-2

6 31EC-02190

  • 31EC-02190 - ACCUMULATOR
  • Поз.: 3

7 31NA-20080

  • 31NA-20080 - SWITCH-PRESSURE
  • Поз.: 4

8 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 5

9 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 6

10 31N8-40100

  • 31N8-40100 - CONNECTOR-LONG
  • ORFS
  • Поз.: 8

11 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 12

12 31N6-25110

  • 31N6-25110 - ELBOW-90
  • ORFS
  • LONG
  • Поз.: 13

13 X520-110003

  • X520-110003 - ELBOW-90
  • ORFS
  • Поз.: 14

14 X500-110003

  • X500-110003 - CONNECTOR-ORFS
  • Поз.: 15

15 X500-110004

  • X500-110004 - CONNECTOR-ORFS
  • Поз.: 16

16 X520-110004

  • X520-110004 - ELBOW-90
  • ORFS
  • Поз.: 19

17 X820-125454

  • X820-125454 - TEE-R/TYPE
  • ORFS
  • Поз.: 20

18 31N6-22400

  • 31N6-22400 - ADAPTOR
  • Поз.: 25

19 31NA-24200

  • 31NA-24200 - CONNECTOR
  • Поз.: 28

20 S631-011004

  • S631-011004 - O-RING
  • Поз.: 31

21 S631-014004

  • S631-014004 - O-RING
  • Поз.: 32

22 S631-018004

  • S631-018004 - O-RING
  • Поз.: 33

23 S631-024004

  • S631-024004 - O-RING
  • Поз.: 34

24 X321-018001

  • X321-018001 - RING-ED
  • Поз.: 37

25 S015-080252

  • S015-080252 - BOLT-HEX
  • Поз.: 38

26 S411-080006

  • S411-080006 - WASHER-SPRING
  • Поз.: 39

27 X420-042011

  • X420-042011 - HOSE ASSY-ORFS 0X90
  • Поз.: 49

28 X420-042015

  • X420-042015 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 51

29 X420-042019

  • X420-042019 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 53

30 P930-043043

  • P930-043043 - HOSE ASSY-ORFS 0X90
  • Поз.: 58

31 P930-043048

  • P930-043048 - HOSE ASSY-ORFS 0X90
  • Поз.: 60

32 X420-042050

  • X420-042050 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 61

33 X420-042046

  • X420-042046 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 62

34 P930-082017

  • P930-082017 - HOSE ASSY-ORFS 0X90
  • Поз.: 68

35 P930-122015

  • P930-122015 - HOSE ASSY-ORFS 0X90
  • Поз.: 71

36 P910-122021

  • P910-122021 - HOSE ASSY-ORFS 0X0
  • Поз.: 72

37 P930-122016

  • P930-122016 - HOSE ASSY-ORFS 0X90
  • Поз.: 73

38 P220-110103

  • P220-110103 - PLUG-HEX
  • Поз.: 77

39 S621-011001

  • S621-011001 - O-RING
  • Поз.: 82

40 S621-012001

  • S621-012001 - O-RING
  • Поз.: 83

41 S621-014001

  • S621-014001 - O-RING
  • Поз.: 84

42 S621-018001

  • S621-018001 - O-RING
  • Поз.: 85

43 31NB-20190

  • 31NB-20190 - ELBOW-90
  • ORFS
  • Поз.: 86
