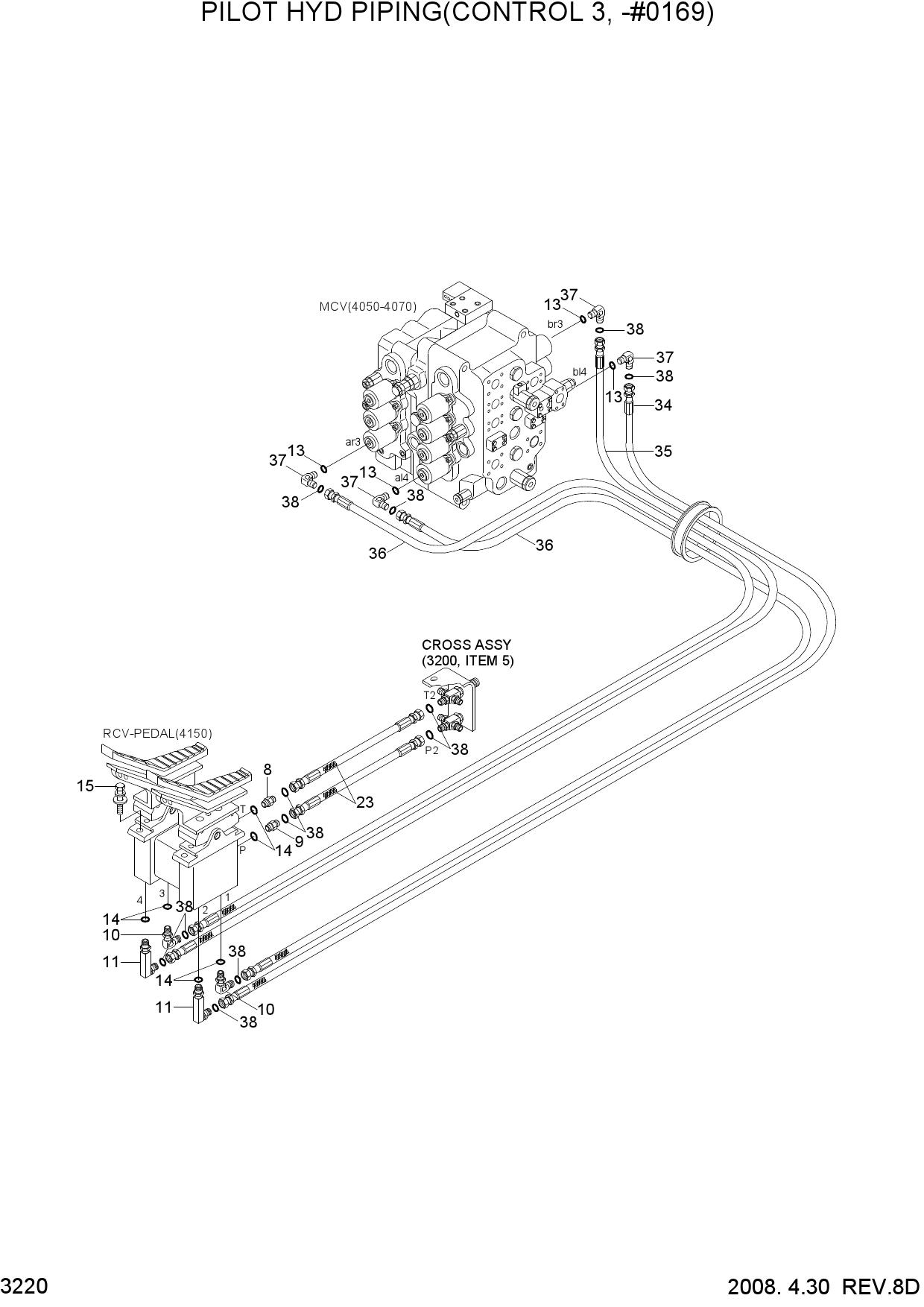

PILOT HYD PIP(CNTL 3,MCV TYPE 1,-#0169)

PILOT HYD PIP(CNTL 3,MCV TYPE 1,-#0169)

PILOT HYD PIP(CNTL 3,MCV TYPE 1,-#0169)

1 X500-110011

  • X500-110011 - CONNECTOR-ORFS
  • Поз.: 8

2 31N6-25070

  • 31N6-25070 - FILTER-LAST GUARD
  • Поз.: 9

3 X520-110011

  • X520-110011 - ELBOW-90
  • ORFS
  • Поз.: 10

4 31N7-22100

  • 31N7-22100 - ELBOW-90
  • ORFS
  • LONG
  • Поз.: 11

5 S631-014004

  • S631-014004 - O-RING
  • Поз.: 13

6 S631-011004

  • S631-011004 - O-RING
  • Поз.: 14

7 S037-103026

  • S037-103026 - BOLT-W/WASHER
  • Поз.: 16

8 X400-062019

  • X400-062019 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 23

9 X400-062072

  • X400-062072 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 34

10 X400-062076

  • X400-062076 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 35

11 X400-062079

  • X400-062079 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 36

12 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 37

13 S621-012001

  • S621-012001 - O-RING
  • Поз.: 38
