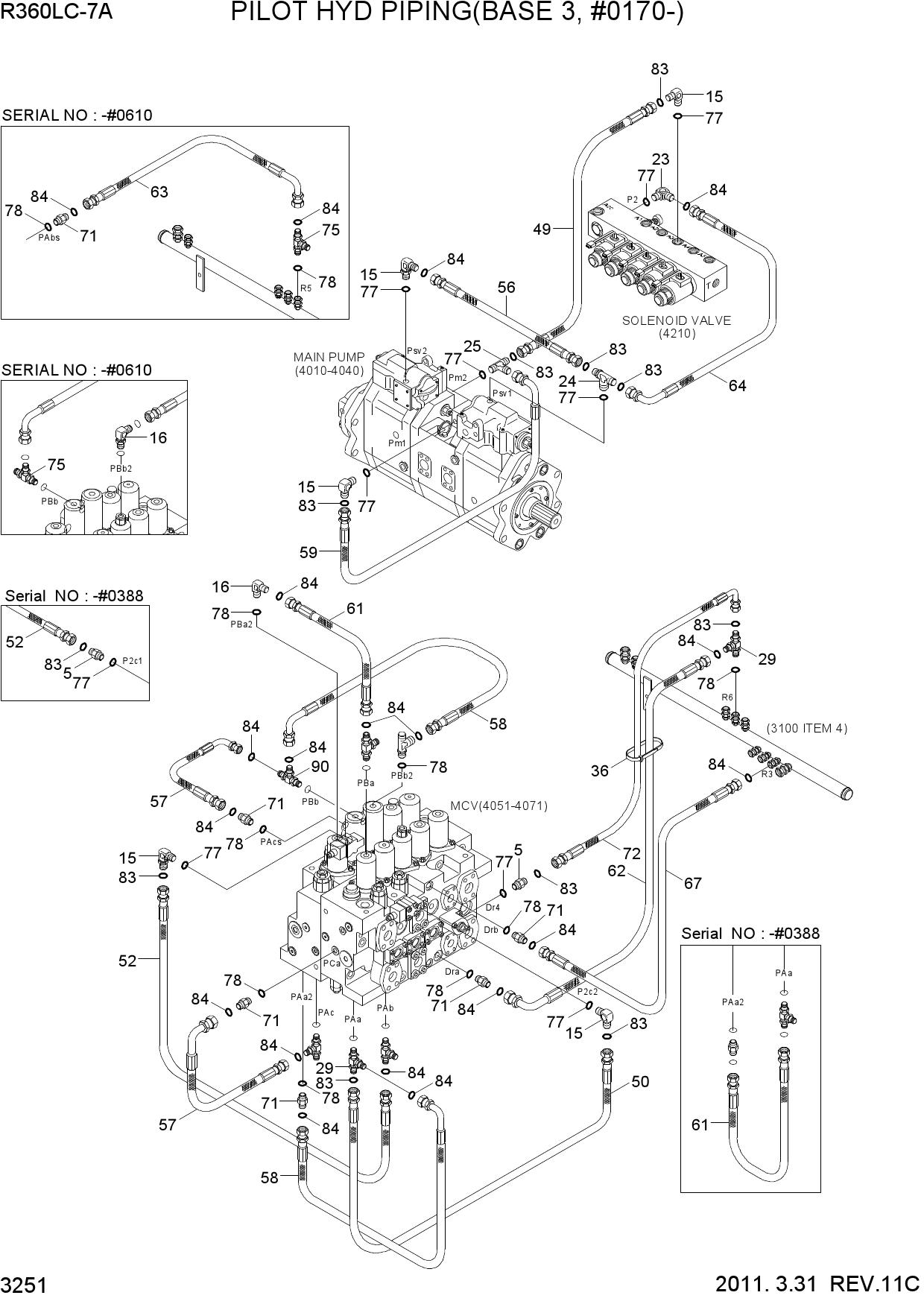

PILOT HYD PIP(BASE 3,MCV TYPE2,#0170-)

PILOT HYD PIP(BASE 3,MCV TYPE2,#0170-)

PILOT HYD PIP(BASE 3,MCV TYPE2,#0170-)

1 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 5

2 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 5

3 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 15

4 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 15

5 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 16

6 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 16

7 X530-110001

  • X530-110001 - ELBOW-45
  • ORFS
  • Поз.: 23

8 X810-045151

  • X810-045151 - TEE-B/TYPE
  • ORFS
  • Поз.: 24

9 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 25

10 X840-525152

  • X840-525152 - TEE-R/TYPE
  • SWIVEL
  • ORFS
  • Поз.: 29

11 S551-050203

  • S551-050203 - CLAMP-BAND
  • Поз.: 36

12 X400-042018

  • X400-042018 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 49

13 X400-042013

  • X400-042013 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 50

14 X400-042016

  • X400-042016 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 52

15 X400-042008

  • X400-042008 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 56

16 X420-062009

  • X420-062009 - HOSE ASSY-ORFS 0X90
  • Поз.: 57

17 X420-062011

  • X420-062011 - HOSE ASSY-ORFS 0X90
  • Поз.: 58

18 X420-062011

  • X420-062011 - HOSE ASSY-ORFS 0X90
  • Поз.: 58

19 X420-042013

  • X420-042013 - HOSE ASSY-ORFS 0X90
  • Поз.: 59

20 X400-062011

  • X400-062011 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 61

21 X400-062011

  • X400-062011 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 61

22 X420-062014

  • X420-062014 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 62

23 X420-062023

  • X420-062023 - HOSE ASSY-ORFS 0X90
  • Поз.: 63

24 X420-042025

  • X420-042025 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 64

25 X400-062008

  • X400-062008 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 67

26 X500-110002

  • X500-110002 - CONNECTOR-ORFS
  • Поз.: 71

27 X500-110002

  • X500-110002 - CONNECTOR-ORFS
  • Поз.: 71

28 X420-042008

  • X420-042008 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 72

29 X840-525252

  • X840-525252 - TEE-R/TYPE
  • SWIVEL
  • ORFS
  • Поз.: 75

30 S631-011004

  • S631-011004 - O-RING
  • Поз.: 77

31 S631-014004

  • S631-014004 - O-RING
  • Поз.: 78

32 S631-014004

  • S631-014004 - O-RING
  • Поз.: 78

33 S621-011001

  • S621-011001 - O-RING
  • Поз.: 83

34 S621-012001

  • S621-012001 - O-RING
  • Поз.: 84

35 S621-012001

  • S621-012001 - O-RING
  • Поз.: 84

36 X820-065252

  • X820-065252 - TEE-R/TYPE
  • ORFS
  • Поз.: 90
