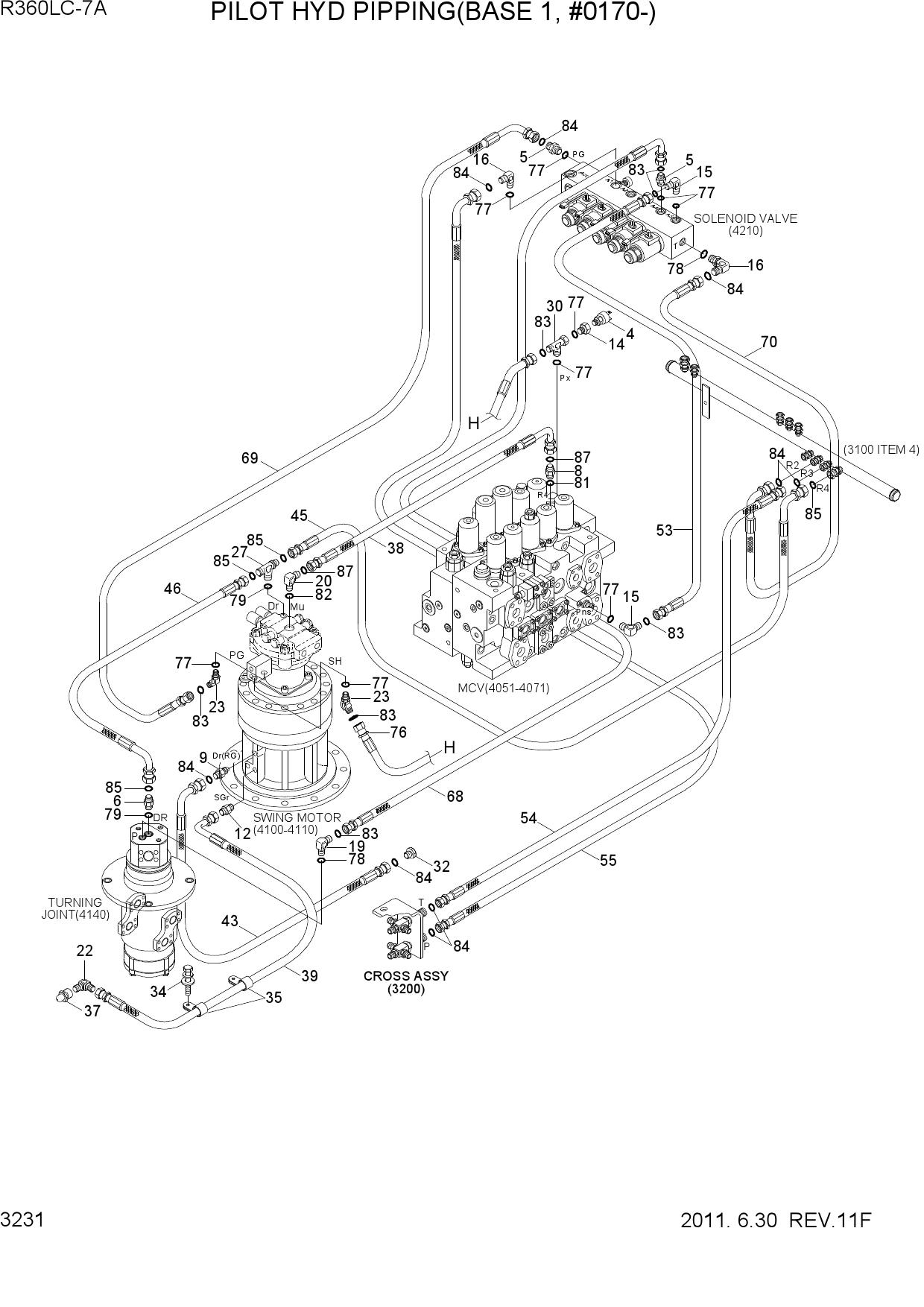

PILOT HYD PIP(BASE 1,MCV TYPE2,#0170-)

PILOT HYD PIP(BASE 1,MCV TYPE2,#0170-)

PILOT HYD PIP(BASE 1,MCV TYPE2,#0170-)

1 31NA-20080

  • 31NA-20080 - SWITCH-PRESSURE
  • Поз.: 4

2 31NA-20100

  • 31NA-20100 - SWITCH-PRESSURE
  • Поз.: 4

3 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 5

4 X500-110003

  • X500-110003 - CONNECTOR-ORFS
  • Поз.: 6

5 X500-110005

  • X500-110005 - CONNECTOR-ORFS
  • Поз.: 8

6 X500-430002

  • X500-430002 - CONNECTOR-ORFS
  • Поз.: 9

7 P010-430011

  • P010-430011 - CONNECTOR
  • Поз.: 12

8 31NB-20190

  • 31NB-20190 - ELBOW-90
  • ORFS
  • Поз.: 14

9 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 15

10 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 16

11 X520-110012

  • X520-110012 - ELBOW-90
  • ORFS
  • Поз.: 19

12 X520-110020

  • X520-110020 - ELBOW-90
  • ORFS
  • Поз.: 20

13 31NB-50280

  • 31NB-50280 - ELBOW-90
  • Поз.: 22

14 X530-110001

  • X530-110001 - ELBOW-45
  • ORFS
  • Поз.: 23

15 X820-085353

  • X820-085353 - TEE-R/TYPE
  • ORFS
  • Поз.: 27

16 31NA-22310

  • 31NA-22310 - TEE-BRANCH TYPE
  • Поз.: 30

17 X700-100103

  • X700-100103 - PLUG-ORFS
  • Поз.: 32

18 S037-101526

  • S037-101526 - BOLT-W/WASHER
  • Поз.: 34

19 S543-160002

  • S543-160002 - CLAMP-TUBE
  • Поз.: 35

20 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 37

21 31NA-23100

  • 31NA-23100 - HOSE ASSY
  • ORFS(0X90)
  • Поз.: 38

22 P860-042025

  • P860-042025 - HOSE ASSY-SYN 0X90
  • Поз.: 39

23 P930-062020

  • P930-062020 - HOSE ASSY-ORFS 0X90
  • Поз.: 43

24 P930-082022

  • P930-082022 - HOSE ASSY-ORFS 0X90
  • Поз.: 45

25 P930-082034

  • P930-082034 - HOSE ASSY-ORFS 0X90
  • Поз.: 46

26 X400-042042

  • X400-042042 - HOSE ASSY-ORFS 0X0
  • Поз.: 53

27 X400-042044

  • X400-042044 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 53

28 X400-062050

  • X400-062050 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 54

29 X400-062075

  • X400-062075 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 55

30 X420-042062

  • X420-042062 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 68

31 X420-042067

  • X420-042067 - HOSE ASSY-ORFS 0X90
  • Поз.: 69

32 X420-062042

  • X420-062042 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 70

33 X410-042027

  • X410-042027 - HOSE ASSY-ORFS 0X45
  • Поз.: 76

34 S631-011004

  • S631-011004 - O-RING
  • Поз.: 77

35 S631-014004

  • S631-014004 - O-RING
  • Поз.: 78

36 S631-018004

  • S631-018004 - O-RING
  • Поз.: 79

37 S631-029004

  • S631-029004 - O-RING
  • Поз.: 81

38 S631-038004

  • S631-038004 - O-RING
  • Поз.: 82

39 S621-011001

  • S621-011001 - O-RING
  • Поз.: 83

40 S621-012001

  • S621-012001 - O-RING
  • Поз.: 84

41 S621-014001

  • S621-014001 - O-RING
  • Поз.: 85

42 S621-021001

  • S621-021001 - O-RING
  • Поз.: 87
