R360LC-7A
/
Гидравлическая система
/

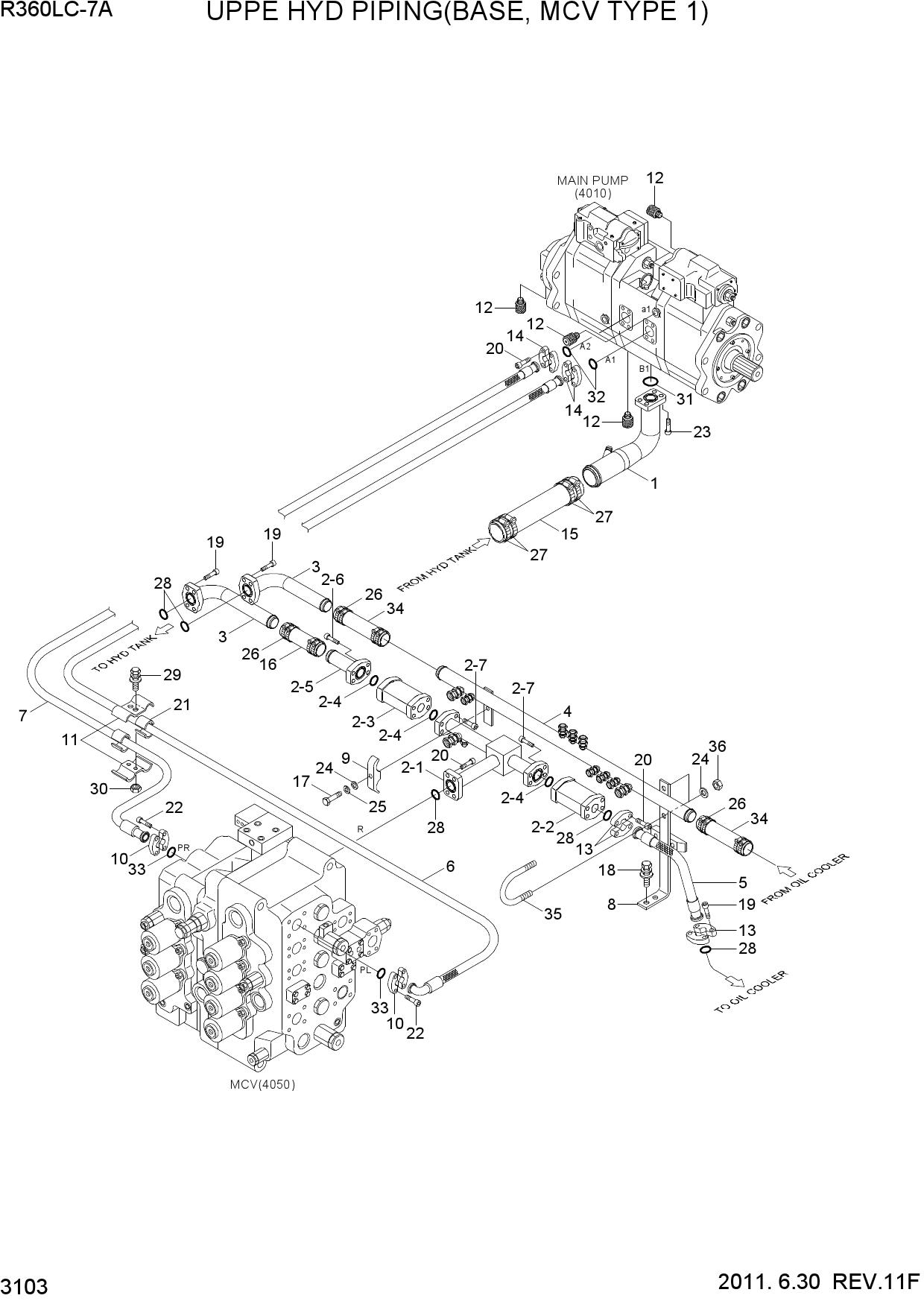

UPPER HYD PIPING(BASE, MCV TYPE 1)

UPPER HYD PIPING(BASE, MCV TYPE 1)

UPPER HYD PIPING(BASE, MCV TYPE 1)

1 31NA-11011

  • 31NA-11011 - PIPE WA-SUCTION
  • Поз.: 1

2 31NA-11142

  • 31NA-11142 - PIPE SUB ASSY
  • Поз.: 2

3 31NA-11022

  • 31NA-11022 - PIPE WA
  • Поз.: 2-1

4 31ND-11120

  • 31ND-11120 - CHECK VALVE ASSY
  • Поз.: 2-2

5 31ND-11130

  • 31ND-11130 - CHECK VALVE ASSY
  • Поз.: 2-3

6 Y172-006004

  • Y172-006004 - O-RING
  • Поз.: 2-4

7 31NB-12060

  • 31NB-12060 - PIPE WA
  • Поз.: 2-5

8 S109-120456

  • S109-120456 - BOLT-SOCKET
  • Поз.: 2-6

9 S109-120356

  • S109-120356 - BOLT-SOCKET
  • Поз.: 2-7

10 31NA-11040

  • 31NA-11040 - PIPE WA
  • Поз.: 3

11 31NA-11052

  • 31NA-11052 - PIPE WA
  • Поз.: 4

12 31NA-11130

  • 31NA-11130 - HOSE ASSY
  • Поз.: 5

13 31NA-11110

  • 31NA-11110 - HOSE ASSY
  • Поз.: 6

14 31NA-11120

  • 31NA-11120 - HOSE ASSY
  • Поз.: 7

15 31NA-11190

  • 31NA-11190 - BRACKET WA
  • Поз.: 8

16 31EH-11130

  • 31EH-11130 - CLAMP-PIPE
  • Поз.: 9

17 31NA-12070

  • 31NA-12070 - FLANGE-HYD
  • SPLIT
  • Поз.: 10

18 34E7-01390

  • 34E7-01390 - CLAMP
  • Поз.: 11

19 31EK-11130

  • 31EK-11130 - COUPLING-SCREW
  • Поз.: 12

20 31EK-11130

  • 31EK-11130 - COUPLING-SCREW
  • Поз.: 12

21 P173-280108

  • P173-280108 - FLANGE-HYD
  • SPLIT
  • Поз.: 13

22 P174-160115

  • P174-160115 - FLANGE-SPLIT
  • Поз.: 14

23 P760-101035

  • P760-101035 - HOSE-RUBBER
  • Поз.: 15

24 31NB-13080

  • 31NB-13080 - HOSE
  • Поз.: 16

25 S017-100906

  • S017-100906 - BOLT-HEX
  • Поз.: 17

26 S037-103026

  • S037-103026 - BOLT-W/WASHER
  • Поз.: 18

27 S109-120306

  • S109-120306 - BOLT-SOCKET
  • Поз.: 19

28 S109-120356

  • S109-120356 - BOLT-SOCKET
  • Поз.: 20

29 34E7-03510

  • 34E7-03510 - GROMMET
  • Поз.: 21

30 S109-140406

  • S109-140406 - BOLT-SOCKET
  • Поз.: 22

31 S109-16040D

  • S109-16040D - BOLT-SOCKET
  • Поз.: 23

32 S403-10200B

  • S403-10200B - WASHER-PLAIN
  • Поз.: 24

33 S411-100006

  • S411-100006 - WASHER-SPRING
  • Поз.: 25

34 S572-750006

  • S572-750006 - CLAMP-HOSE WIRE TYPE
  • Поз.: 26

35 31N6-11190

  • 31N6-11190 - CLAMP-HOSE WIRE TYPE
  • Поз.: 27

36 Y172-006004

  • Y172-006004 - O-RING
  • Поз.: 28

37 S037-122526

  • S037-122526 - BOLT-W/WASHER
  • Поз.: 29

38 S275-12000B

  • S275-12000B - NUT-SELF LOCKING
  • Поз.: 30

39 S631-085001

  • S631-085001 - O-RING
  • Поз.: 31

40 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 32

41 Y171-027004

  • Y171-027004 - O-RING
  • Поз.: 33

42 31NB-13090

  • 31NB-13090 - HOSE
  • Поз.: 34

43 S070-026163

  • S070-026163 - U-BOLT
  • Поз.: 35

44 S205-10100B

  • S205-10100B - NUT-HEX
  • Поз.: 36
