R360LC-7A
/
Гидравлическая система
/

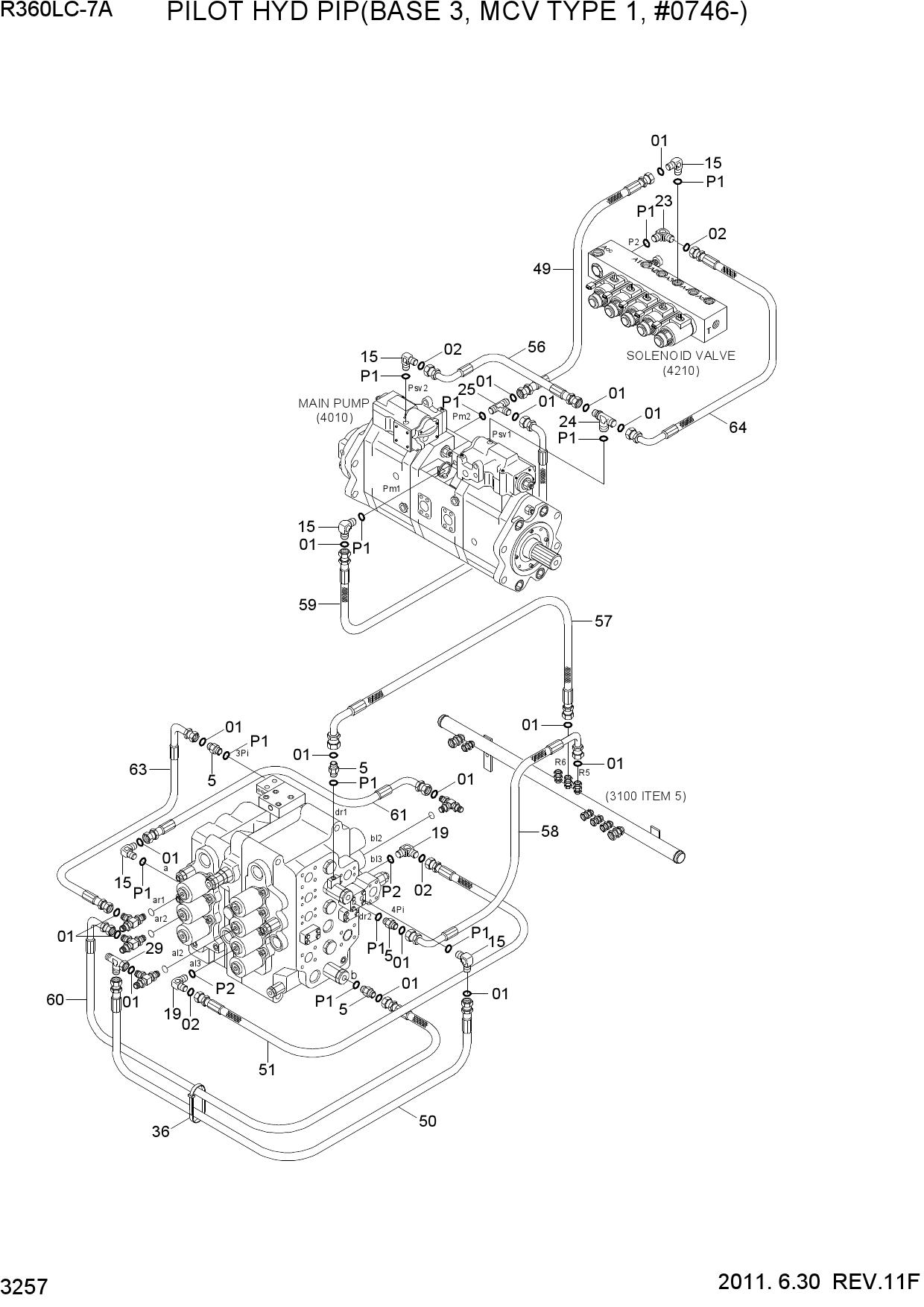

PILOT HYD PIP(BASE 3,MCV TYPE1,#0746-)

PILOT HYD PIP(BASE 3,MCV TYPE1,#0746-)

PILOT HYD PIP(BASE 3,MCV TYPE1,#0746-)

1 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 5

2 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 15

3 X520-110012

  • X520-110012 - ELBOW-90
  • ORFS
  • Поз.: 19

4 X530-110001

  • X530-110001 - ELBOW-45
  • ORFS
  • Поз.: 23

5 X810-045151

  • X810-045151 - TEE-B/TYPE
  • ORFS
  • Поз.: 24

6 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 25

7 X840-525152

  • X840-525152 - TEE-R/TYPE
  • SWIVEL
  • ORFS
  • Поз.: 29

8 S551-050203

  • S551-050203 - CLAMP-BAND
  • Поз.: 36

9 X400-042018

  • X400-042018 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 49

10 X400-042021

  • X400-042021 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 50

11 X400-042024

  • X400-042024 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 51

12 X410-042008

  • X410-042008 - HOSE ASSY-ORFS 0X45
  • Поз.: 56

13 X420-042009

  • X420-042009 - HOSE ASSY-ORFS 0X90
  • Поз.: 57

14 X420-042011

  • X420-042011 - HOSE ASSY-ORFS 0X90
  • Поз.: 58

15 X420-042013

  • X420-042013 - HOSE ASSY-ORFS 0X90
  • Поз.: 59

16 X420-042015

  • X420-042015 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 60

17 X420-042018

  • X420-042018 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 61

18 X420-042023

  • X420-042023 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 63

19 X420-042025

  • X420-042025 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 64

20 S621-011001

  • S621-011001 - O-RING
  • Поз.: 001

21 S621-012001

  • S621-012001 - O-RING
  • Поз.: 002
