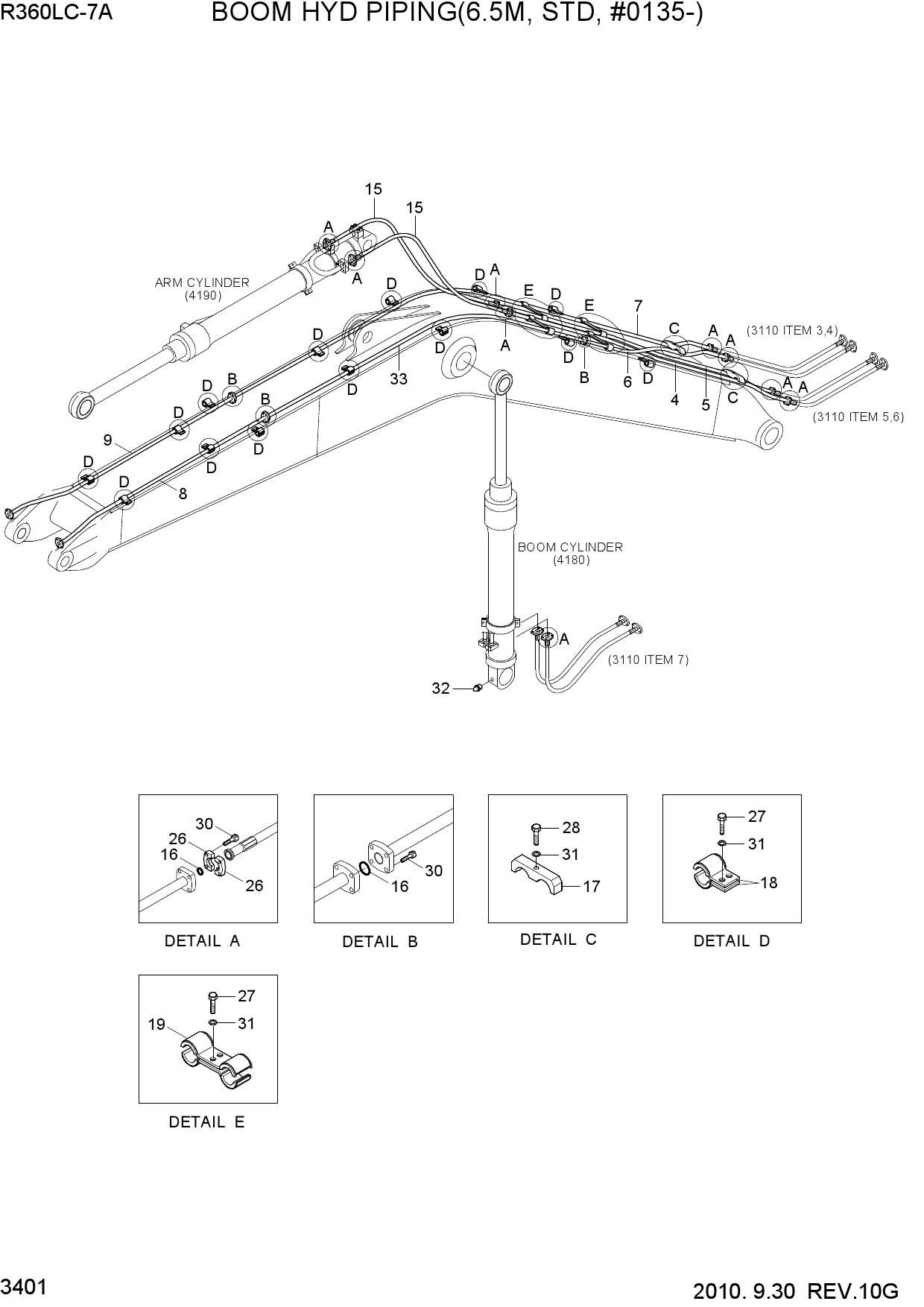

BOOM HYD PIPING(6.5M, STD, #0135-)

BOOM HYD PIPING(6.5M, STD, #0135-)

BOOM HYD PIPING(6.5M, STD, #0135-)

1 31NA-50310

  • 31NA-50310 - PIPE ASSY
  • Поз.: 4

2 31NA-50311

  • 31NA-50311 - PIPE WA
  • Поз.: 4

3 31NA-50320

  • 31NA-50320 - PIPE ASSY
  • Поз.: 5

4 31NA-50321

  • 31NA-50321 - PIPE WA
  • Поз.: 5

5 31NA-50330

  • 31NA-50330 - PIPE ASSY
  • Поз.: 6

6 31NA-50370

  • 31NA-50370 - PIPE WA
  • Поз.: 6

7 31NA-50340

  • 31NA-50340 - PIPE ASSY
  • Поз.: 7

8 31NA-50341

  • 31NA-50341 - PIPE WA
  • Поз.: 7

9 31NA-50350

  • 31NA-50350 - PIPE ASSY
  • Поз.: 8

10 31NA-50351

  • 31NA-50351 - PIPE WA
  • Поз.: 8

11 31NA-50360

  • 31NA-50360 - PIPE ASSY
  • Поз.: 9

12 31NA-50361

  • 31NA-50361 - PIPE WA
  • Поз.: 9

13 P680-207425

  • P680-207425 - HOSE ASSY-FLG
  • Поз.: 15

14 Y171-027004

  • Y171-027004 - O-RING
  • Поз.: 16

15 Y171-027004

  • Y171-027004 - O-RING
  • Поз.: 16

16 31NB-51310

  • 31NB-51310 - CLAMP ASSY
  • Поз.: 17

17 31ND-51001

  • 31ND-51001 - CLAMP ASSY
  • Поз.: 18

18 31ND-51011

  • 31ND-51011 - CLAMP ASSY
  • Поз.: 19

19 P174-200106

  • P174-200106 - FLANGE-SPLIT
  • Поз.: 26

20 S017-16050D

  • S017-16050D - BOLT-HEX
  • Поз.: 27

21 S017-16080D

  • S017-16080D - BOLT-HEX
  • Поз.: 28

22 S109-120506

  • S109-120506 - BOLT-SOCKET
  • Поз.: 30

23 S109-120506

  • S109-120506 - BOLT-SOCKET
  • Поз.: 30

24 S411-160006

  • S411-160006 - WASHER-SPRING
  • Поз.: 31

25 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 32

26 31NA-50380

  • 31NA-50380 - PIPE WA
  • Поз.: 33
