R360LC-7A
/
Гидравлическая система
/

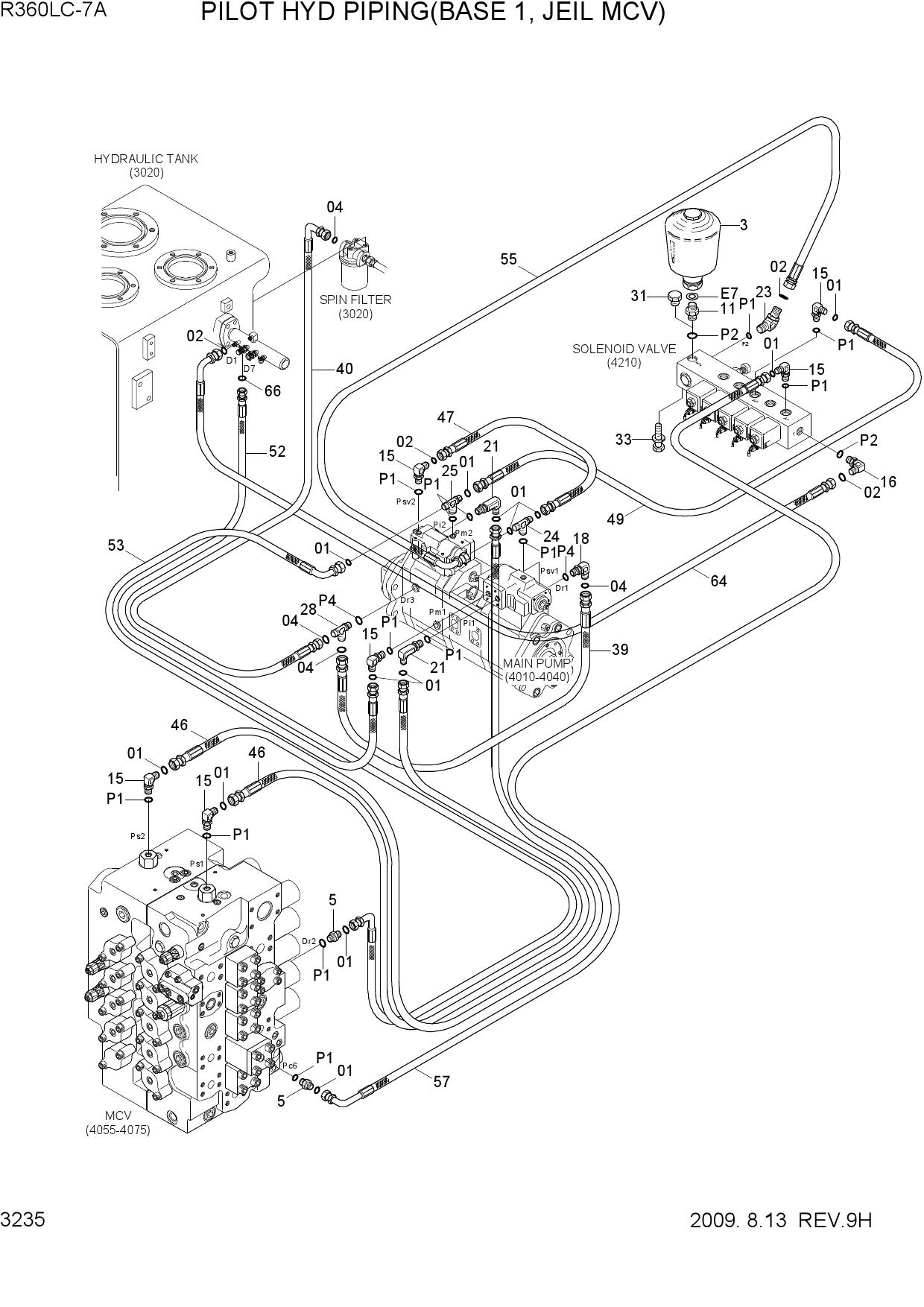

PILOT HYD PIP(BASE 1,MCV TYPE3,#0443-)

PILOT HYD PIP(BASE 1,MCV TYPE3,#0443-)

PILOT HYD PIP(BASE 1,MCV TYPE3,#0443-)

1 31EC-02190

  • 31EC-02190 - ACCUMULATOR
  • Поз.: 3

2 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 5

3 31NA-24200

  • 31NA-24200 - CONNECTOR
  • Поз.: 11

4 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 15

5 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 16

6 X520-110004

  • X520-110004 - ELBOW-90
  • ORFS
  • Поз.: 18

7 31N6-25110

  • 31N6-25110 - ELBOW-90
  • ORFS
  • LONG
  • Поз.: 21

8 X530-110001

  • X530-110001 - ELBOW-45
  • ORFS
  • Поз.: 23

9 X810-045151

  • X810-045151 - TEE-B/TYPE
  • ORFS
  • Поз.: 24

10 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 25

11 X820-125454

  • X820-125454 - TEE-R/TYPE
  • ORFS
  • Поз.: 28

12 P220-110103

  • P220-110103 - PLUG-HEX
  • Поз.: 31

13 S035-082526

  • S035-082526 - BOLT-W/WASHER
  • Поз.: 33

14 P910-122021

  • P910-122021 - HOSE ASSY-ORFS 0X0
  • Поз.: 39

15 P930-122014

  • P930-122014 - HOSE ASSY-ORFS 0X90
  • Поз.: 40

16 P910-043051

  • P910-043051 - HOSE ASSY-ORFS 0X0
  • Поз.: 46

17 P910-043056

  • P910-043056 - HOSE ASSY-ORFS 0X0
  • Поз.: 46

18 X400-042008

  • X400-042008 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 47

19 X400-042018

  • X400-042018 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 49

20 X420-042012

  • X420-042012 - HOSE ASSY-ORFS 0X90
  • Поз.: 52

21 X420-042013

  • X420-042013 - HOSE ASSY-ORFS 0X90
  • Поз.: 53

22 X420-042025

  • X420-042025 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 55

23 X420-042044

  • X420-042044 - HOSE ASSY-ORFS 0X90
  • Поз.: 57

24 X420-062044

  • X420-062044 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 64

25 S621-011001

  • S621-011001 - O-RING
  • Поз.: 001

26 S621-012001

  • S621-012001 - O-RING
  • Поз.: 002

27 S621-018001

  • S621-018001 - O-RING
  • Поз.: 004
