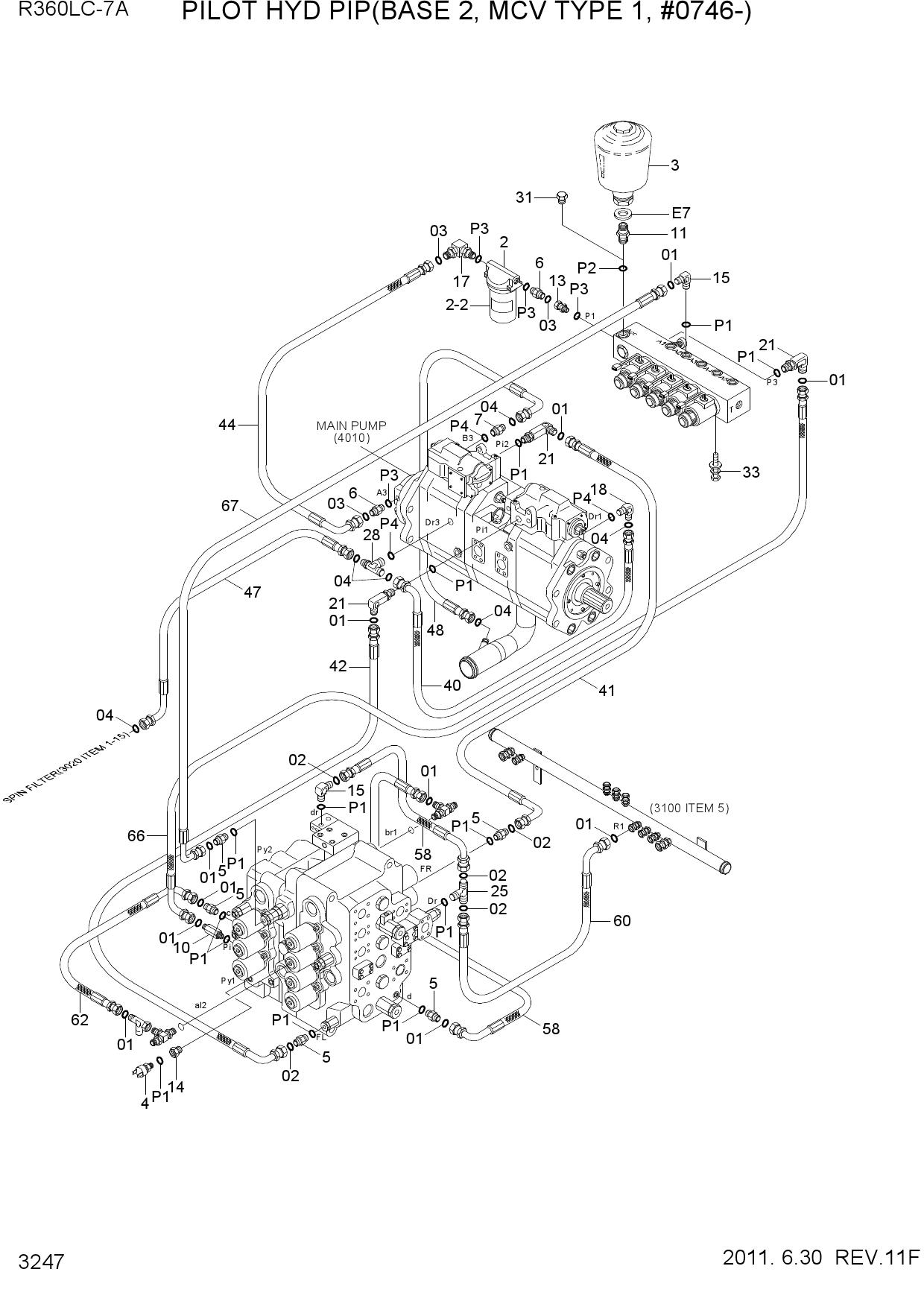

PILOT HYD PIP(BASE 2,MCV TYPE1,#0746-)

PILOT HYD PIP(BASE 2,MCV TYPE1,#0746-)

PILOT HYD PIP(BASE 2,MCV TYPE1,#0746-)

1 31MH-20310

  • 31MH-20310 - FILTER-LINE
  • Поз.: 002

2 31EC-02190

  • 31EC-02190 - ACCUMULATOR
  • Поз.: 003

3 31NA-20100

  • 31NA-20100 - SWITCH-PRESSURE
  • Поз.: 004

4 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 5

5 X500-110003

  • X500-110003 - CONNECTOR-ORFS
  • Поз.: 6

6 X500-110004

  • X500-110004 - CONNECTOR-ORFS
  • Поз.: 7

7 31N8-40100

  • 31N8-40100 - CONNECTOR-LONG
  • ORFS
  • Поз.: 10

8 31NA-24200

  • 31NA-24200 - CONNECTOR
  • Поз.: 11

9 31N6-22400

  • 31N6-22400 - ADAPTOR
  • Поз.: 13

10 31NB-20190

  • 31NB-20190 - ELBOW-90
  • ORFS
  • Поз.: 14

11 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 15

12 X520-110003

  • X520-110003 - ELBOW-90
  • ORFS
  • Поз.: 17

13 X520-110004

  • X520-110004 - ELBOW-90
  • ORFS
  • Поз.: 18

14 31N6-25110

  • 31N6-25110 - ELBOW-90
  • ORFS
  • LONG
  • Поз.: 21

15 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 25

16 X820-125454

  • X820-125454 - TEE-R/TYPE
  • ORFS
  • Поз.: 28

17 P220-110103

  • P220-110103 - PLUG-HEX
  • Поз.: 31

18 S035-082526

  • S035-082526 - BOLT-W/WASHER
  • Поз.: 33

19 P910-122021

  • P910-122021 - HOSE ASSY-ORFS 0X0
  • Поз.: 40

20 P930-043043

  • P930-043043 - HOSE ASSY-ORFS 0X90
  • Поз.: 41

21 P930-043048

  • P930-043048 - HOSE ASSY-ORFS 0X90
  • Поз.: 42

22 P930-082017

  • P930-082017 - HOSE ASSY-ORFS 0X90
  • Поз.: 44

23 P930-122014

  • P930-122014 - HOSE ASSY-ORFS 0X90
  • Поз.: 47

24 P930-122015

  • P930-122015 - HOSE ASSY-ORFS 0X90
  • Поз.: 48

25 X420-042011

  • X420-042011 - HOSE ASSY-ORFS 0X90
  • Поз.: 58

26 X420-042015

  • X420-042015 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 60

27 X420-042019

  • X420-042019 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 62

28 X420-042046

  • X420-042046 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 66

29 X420-042050

  • X420-042050 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 67

30 S621-011001

  • S621-011001 - O-RING
  • Поз.: 001

31 S621-012001

  • S621-012001 - O-RING
  • Поз.: 002

32 S621-014001

  • S621-014001 - O-RING
  • Поз.: 003

33 S621-018001

  • S621-018001 - O-RING
  • Поз.: 004
