R360LC-7A
/
Гидравлическая система
/

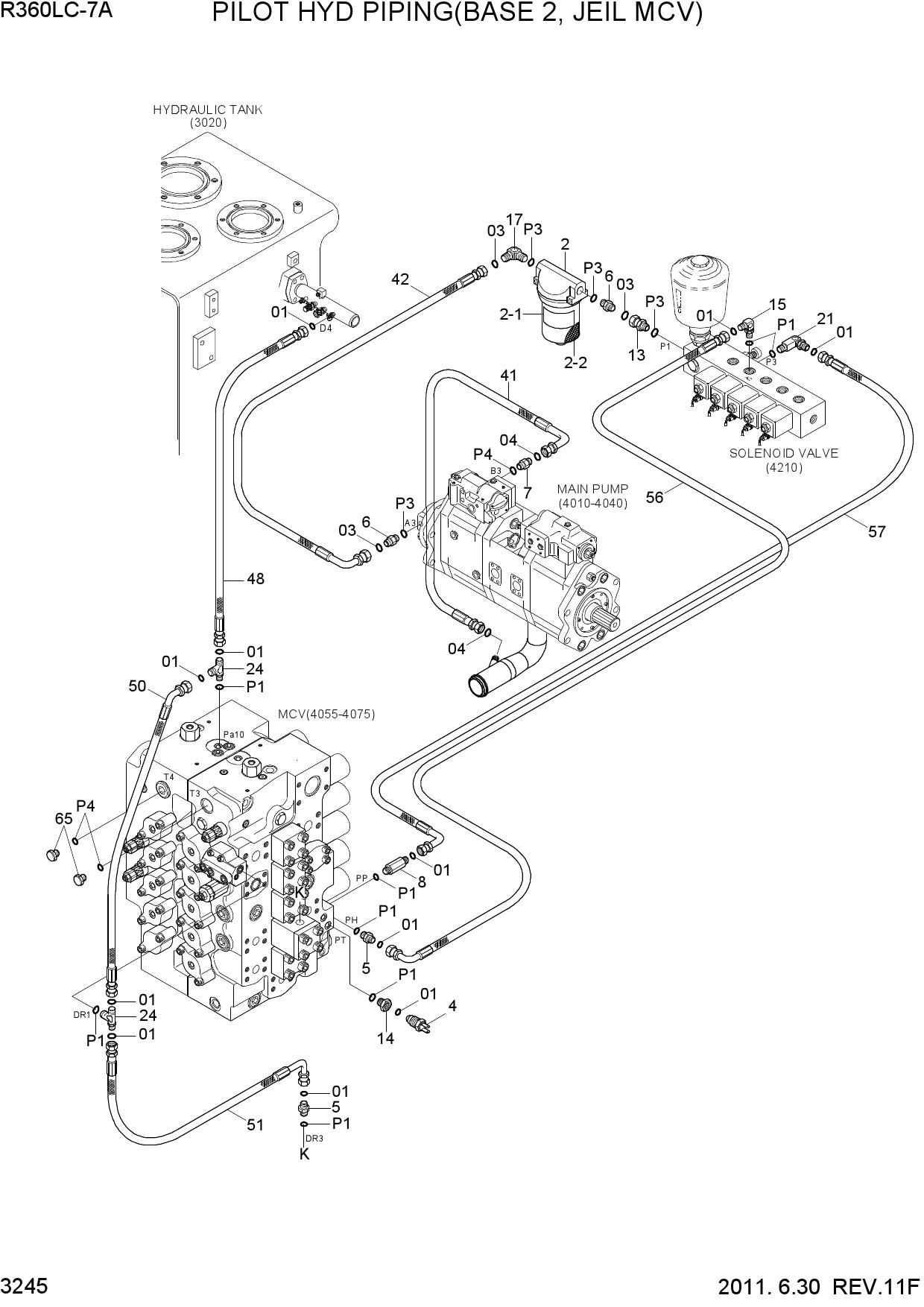

PILOT HYD PIP(BASE 2,MCV TYPE3,#0443-)

PILOT HYD PIP(BASE 2,MCV TYPE3,#0443-)

PILOT HYD PIP(BASE 2,MCV TYPE3,#0443-)

1 31MH-20310

  • 31MH-20310 - FILTER-LINE
  • Поз.: 2

2 31E3-0044

  • 31E3-0044 - BODY
  • Поз.: 2-1

3 31MH-20320

  • 31MH-20320 - ELEMENT-LINE FILTER
  • Поз.: 2-2

4 31NA-20080

  • 31NA-20080 - SWITCH-PRESSURE
  • Поз.: 004

5 31NA-20100

  • 31NA-20100 - SWITCH-PRESSURE
  • Поз.: 004

6 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 5

7 X500-110003

  • X500-110003 - CONNECTOR-ORFS
  • Поз.: 6

8 X500-110004

  • X500-110004 - CONNECTOR-ORFS
  • Поз.: 7

9 X511-104516

  • X511-104516 - CONNECTOR-LONG
  • ORFS
  • Поз.: 8

10 31N6-22400

  • 31N6-22400 - ADAPTOR
  • Поз.: 13

11 31NB-20190

  • 31NB-20190 - ELBOW-90
  • ORFS
  • Поз.: 14

12 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 15

13 X520-110003

  • X520-110003 - ELBOW-90
  • ORFS
  • Поз.: 17

14 31N6-25110

  • 31N6-25110 - ELBOW-90
  • ORFS
  • LONG
  • Поз.: 21

15 X810-045151

  • X810-045151 - TEE-B/TYPE
  • ORFS
  • Поз.: 24

16 P930-122015

  • P930-122015 - HOSE ASSY-ORFS 0X90
  • Поз.: 41

17 P930-082017

  • P930-082017 - HOSE ASSY-ORFS 0X90
  • Поз.: 42

18 X400-042010

  • X400-042010 - HOSE ASSY-ORFS 0X0
  • Поз.: 48

19 X410-042009

  • X410-042009 - HOSE ASSY-ORFS 0X45
  • Поз.: 50

20 X420-042010

  • X420-042010 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 51

21 X420-042037

  • X420-042037 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 56

22 X420-042044

  • X420-042044 - HOSE ASSY-ORFS 0X90
  • Поз.: 57

23 P220-110105

  • P220-110105 - PLUG-HEX
  • Поз.: 65

24 S621-011001

  • S621-011001 - O-RING
  • Поз.: 001

25 S621-014001

  • S621-014001 - O-RING
  • Поз.: 003

26 S621-018001

  • S621-018001 - O-RING
  • Поз.: 004
