Гусеничные экскаваторы
/
R360LC-7A
/
Гидравлическая система
/

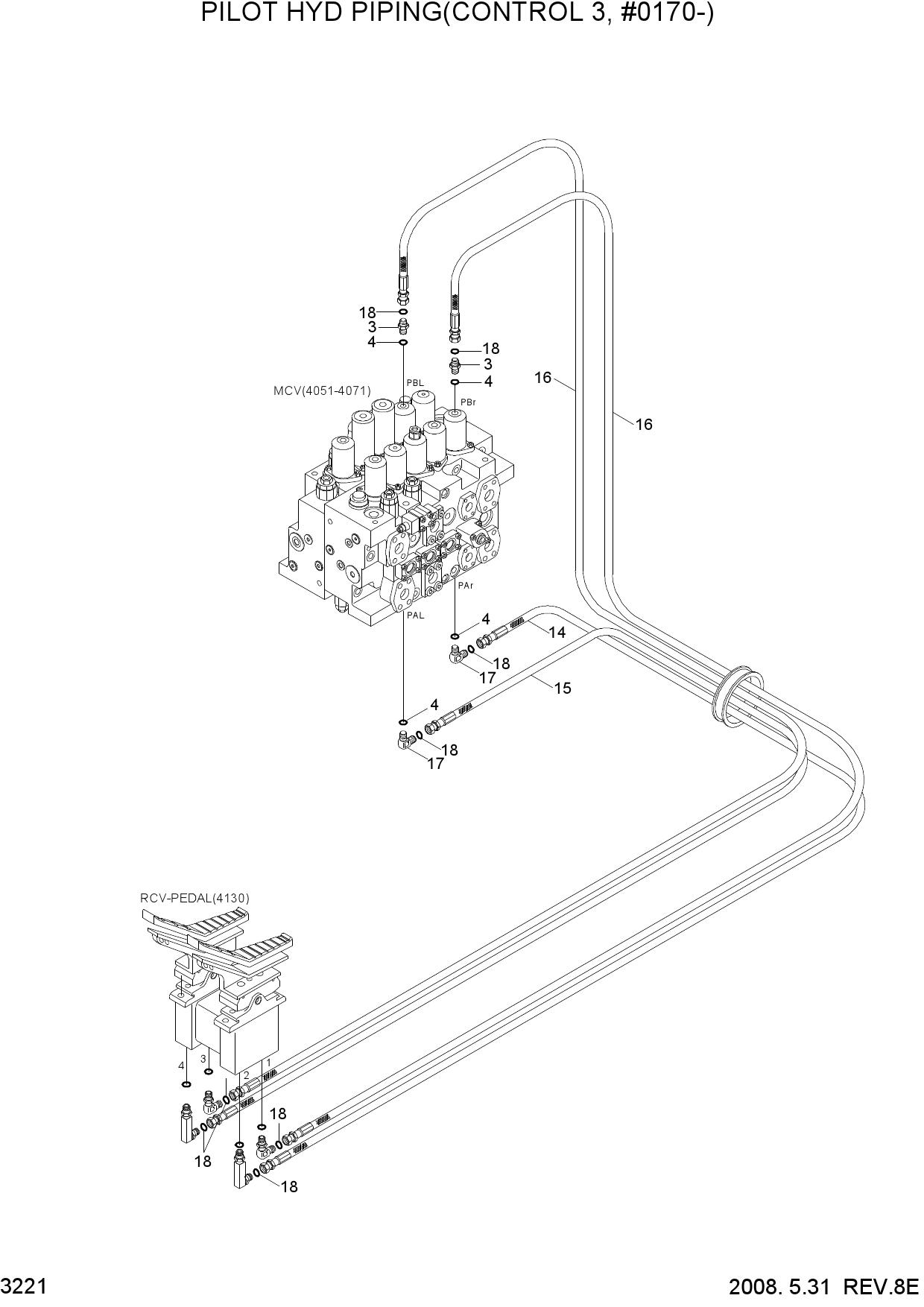

PILOT HYD PIP(CNTL 3,MCV TYPE 2,#0170-)

PILOT HYD PIP(CNTL 3,MCV TYPE 2,#0170-)

PILOT HYD PIP(CNTL 3,MCV TYPE 2,#0170-)

1 X500-110002

  • X500-110002 - CONNECTOR-ORFS
  • Поз.: 3

2 S631-014004

  • S631-014004 - O-RING
  • Поз.: 4

3 X400-062068

  • X400-062068 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 14

4 X400-062069

  • X400-062069 - HOSE ASSY-SYNFLEX ORFS
  • Поз.: 15

5 X400-062079

  • X400-062079 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 16

6 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 17

7 S621-012001

  • S621-012001 - O-RING
  • Поз.: 18
