Bobcat
/
443
/

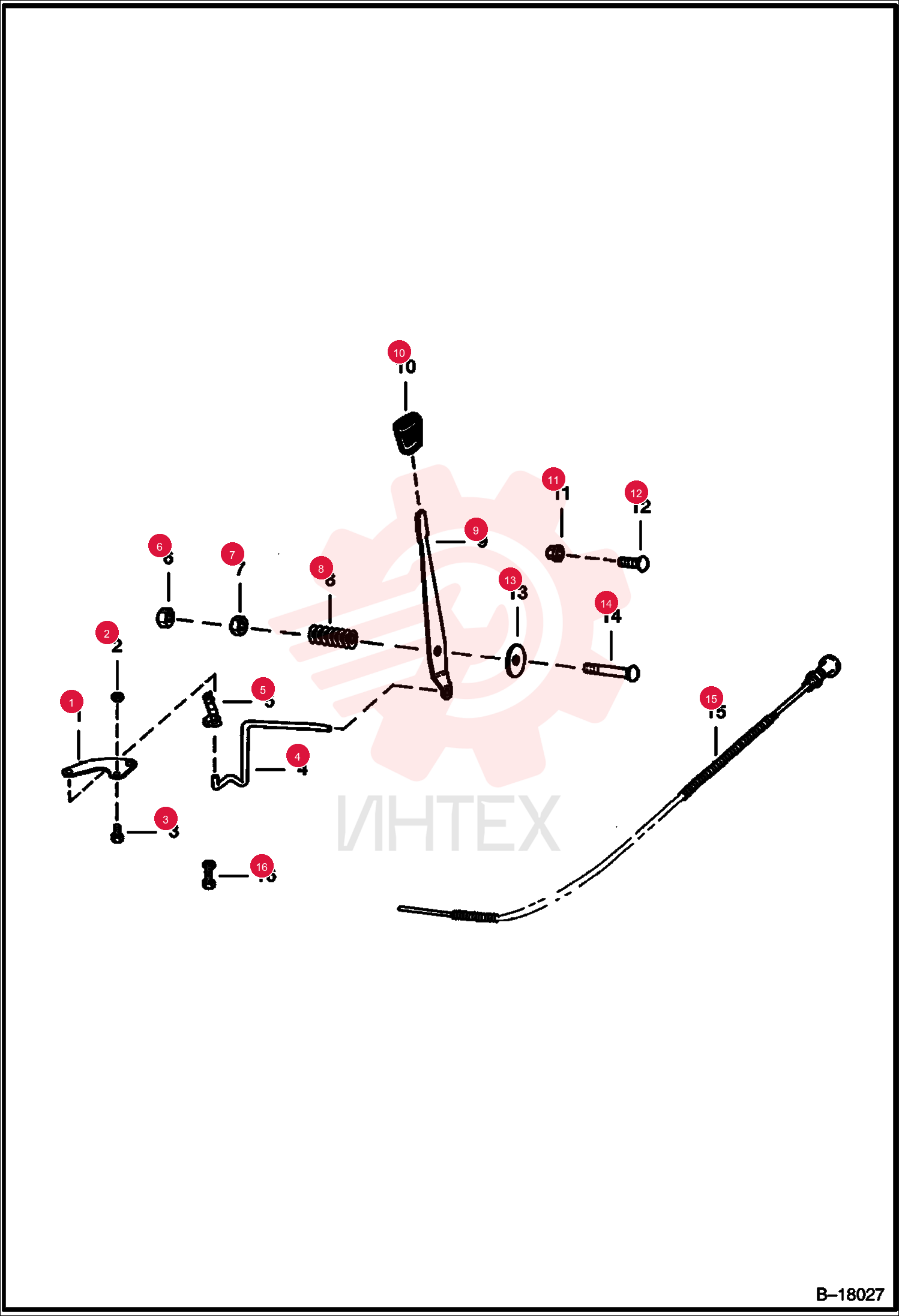

ADAPTOR 6564384 (2)

ADAPTOR 6564384 (2)

ADAPTOR 6564384 (2)

1 6564384

  • 6564384 - ADAPTOR

2 61D4

  • 61D4 - NUT 5

3 1CM616

  • 1CM616 - SCREW HEX CAP

4 6564377

  • 6564377 - ROD

5 6512274

  • 6512274 - CLIP
  • NLA - Was 6512274

6 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

7 61D6

  • 61D6 - NUT HEX FINISHED GR5

8 6704453

  • 6704453 - SPRING COMPRESSION

9 6564275

  • 6564275 - LEVER

10 6564452

  • 6564452 - GRIP LEVER

11 57D5

  • 57D5 - NUT HEX FLNG GR8

12 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • Was 6553808

13 6562127

  • 6562127 - WASHER

14 7C632

  • 7C632 - BOLT

15 6564461

  • 6564461 - CABLE
  • shut off
