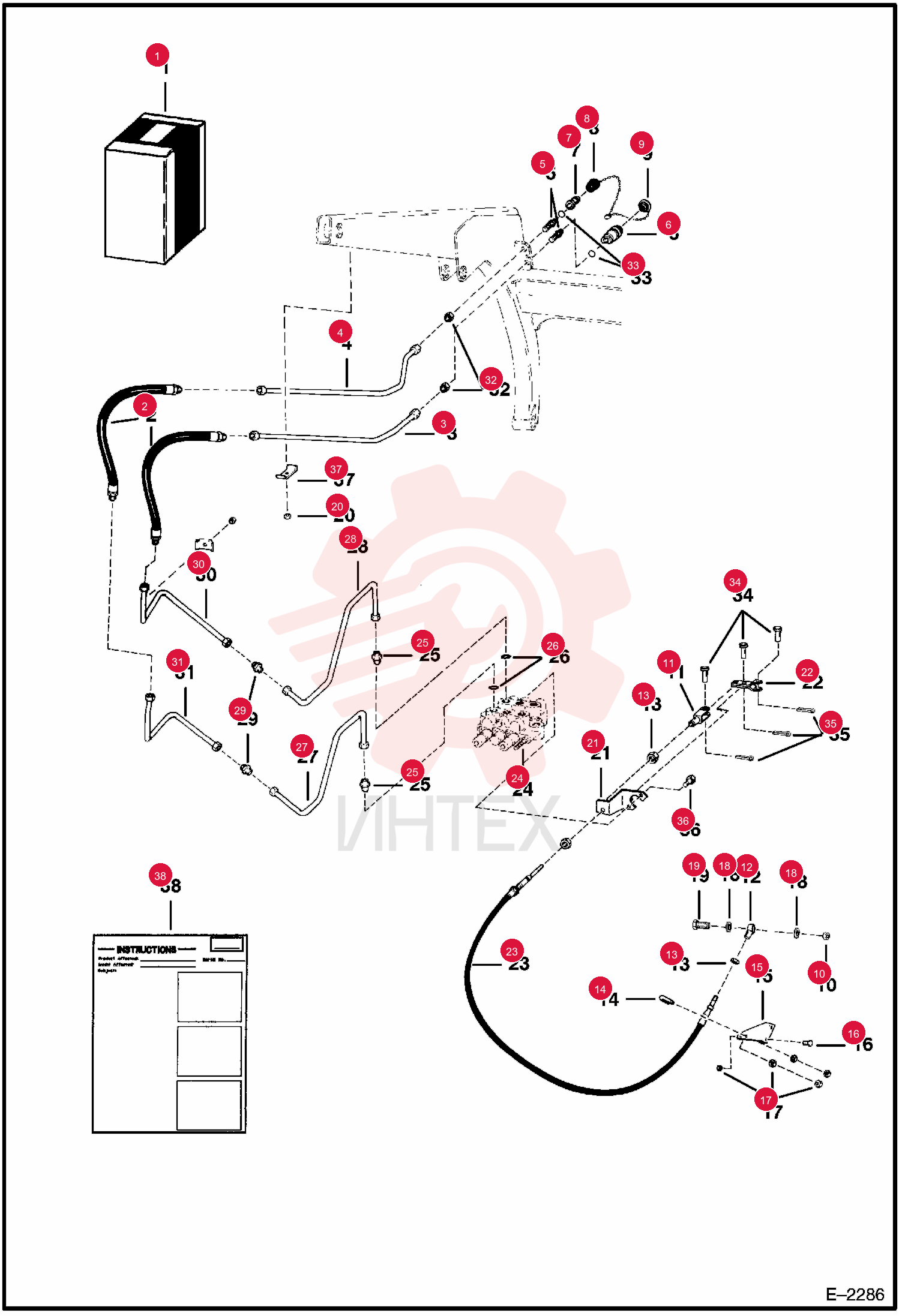

HOSE 6530855 (1)

HOSE 6530855 (1)

HOSE 6530855 (1)

1 6530855

  • 6530855 - HOSE
  • Was 6565078

2 6564122

  • 6564122 - TUBE

3 6564123

  • 6564123 - TUBE

4 45K6

  • 45K6 - CONNECTR

5 7246788

  • 7246788 - COUPLER
  • FF FEMALE
  • - straight - case drain - Was 6667805

6 7246788EF

  • 7246788EF - COUPLER FF FEMALE 3/8 BDY 1/2 SAE THREAD

7 25K30024

  • 25K30024 - O RING 10
  • For poppet syle couplers

8 73K116

  • 73K116 - RING
  • For poppet syle couplers

9 7246789

  • 7246789 - COUPLER FF MALE HTMA
  • - Was 6667806

10 7246789EF

  • 7246789EF - COUPLER FF MALE 3/8 BODY 1/2 SAE THREAD

11 3679001

  • 3679001 - CAP

12 3679000

  • 3679000 - PLUG-DUST

13 62D4

  • 62D4 - NUT HEX FINISHED GR5

14 2J4200

  • 2J4200 - CLEVIS

15 6593671

  • 6593671 - CONNECTOR

16 8D4

  • 8D4 - NUT

17 6592766

  • 6592766 - U-BOLT

18 6564802

  • 6564802 - MOUNT

19 17C512

  • 17C512 - BOLT 5

20 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

21 25E13

  • 25E13 - WASHER FLAT PLAIN

22 17C416

  • 17C416 - BOLT

23 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

24 6592937

  • 6592937 - MOUNT

25 6592940

  • 6592940 - ARM

26 6599469

  • 6599469 - CABLE

27 731794

  • 731794 - CONNECTR

28 79K10

  • 79K10 - O RING 10

29 6565144

  • 6565144 - TUBE

30 6565145

  • 6565145 - TUBE

31 87F6

  • 87F6 - UNION HYDR LARGE HEX

32 6592960

  • 6592960 - TUBE

33 6592961

  • 6592961 - TUBE

34 86F6

  • 86F6 - NUT HYDR BHD LOCK

35 79K8

  • 79K8 - O RING 10

36 1304227

  • 1304227 - PIN

37 1F208

  • 1F208 - PIN

38 73G412

  • 73G412 - SCREW

39 6500989

  • 6500989 - TUBE CLAMP

40 6566718

  • 6566718 - INSTRUCTIONS
