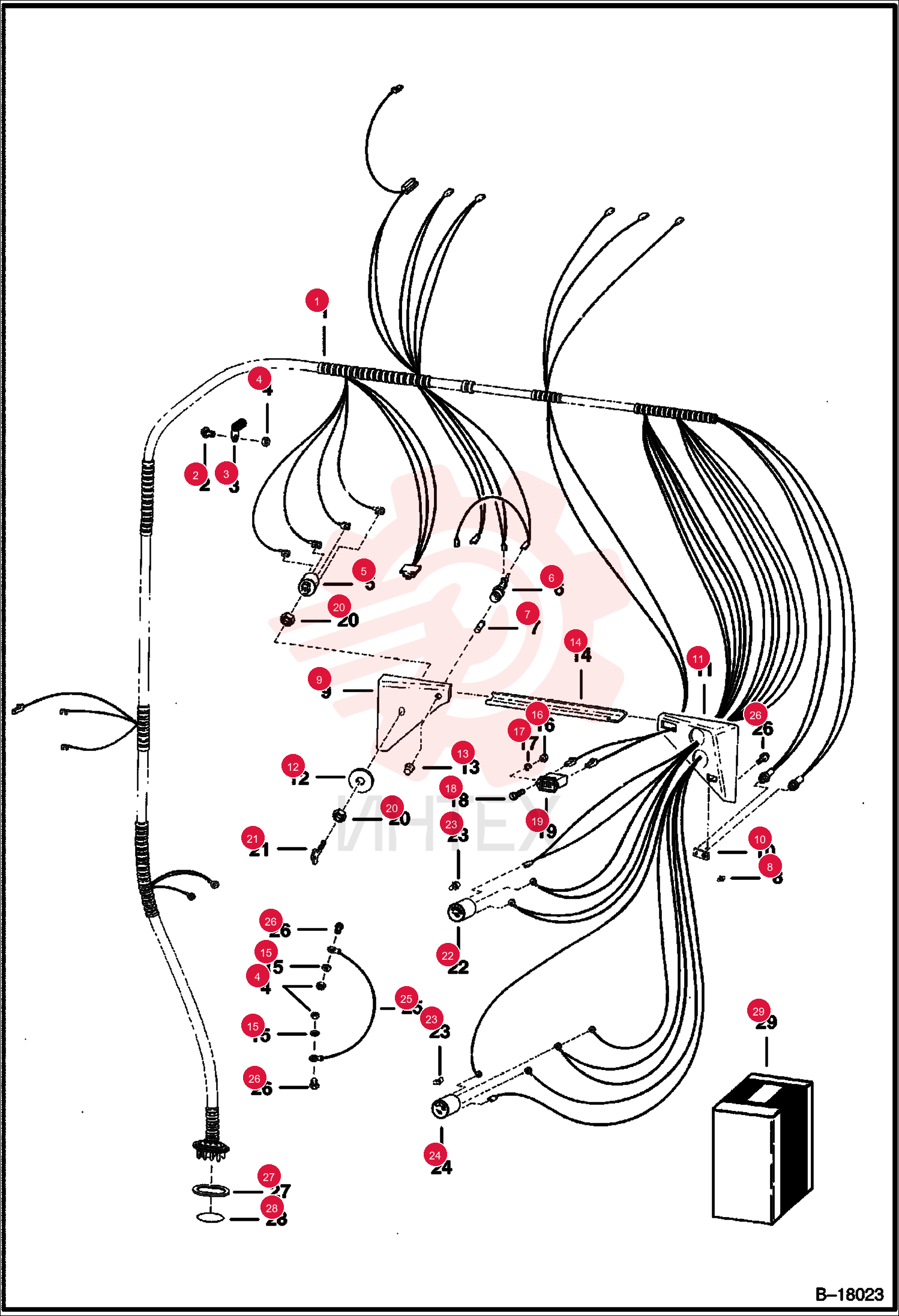

HARNESS 6531619 (2)

HARNESS 6531619 (2)

HARNESS 6531619 (2)

1 6531619

  • 6531619 - HARNESS

2 17C512

  • 17C512 - BOLT 5

3 30H45

  • 30H45 - CLIP

4 61D5

  • 61D5 - NUT HEX FINISHED GR5

5 6665606

  • 6665606 - SWITCH
  • IGN
  • ignition

6 6513469

  • 6513469 - HOLDER
  • FUSE

7 1319451

  • 1319451 - FUSE 5

8 6572065

  • 6572065 - LAMP

9 6572056

  • 6572056 - LENS

10 6531551

  • 6531551 - PANEL

11 6703705

  • 6703705 - TAG
  • brake start - for NLA/6519592 switch - Was 6563431

12 6709028

  • 6709028 - PLATE 10
  • brake start - for 6665606 switch - Was 6708701

13 6514642

  • 6514642 - CAP 5

14 6531618

  • 6531618 - CROSSMEMBER INSTR

15 25E15

  • 25E15 - WASHER FLAT PLAIN

16 12D6

  • 12D6 - NUT HEX MACH SCREW

17 12E6

  • 12E6 - WASHER

18 65G608

  • 65G608 - SCREW PNH SLTD TAP

19 6664886

  • 6664886 - METER HOUR
  • Was 6631657

20 6674202

  • 6674202 - NUT
  • for 6665606 Switch

21 6598721

  • 6598721 - NUT
  • for NLA/6519592 Switch

22 6512809

  • 6512809 - KEYSET 10
  • for NLA/6519592 Switch

23 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

24 6669664

  • 6669664 - GAUGE VOLT
  • W/O clamp

25 6599696

  • 6599696 - SOCK AND BULB
  • assy.

26 895771

  • 895771 - #161 BULB

27 6669663

  • 6669663 - GAUGE COOLANT TEMP
  • eng temp - W/O clamp

28 6594283

  • 6594283 - WIRE ASSY NEGATIVE
  • ground

29 84G3112

  • 84G3112 - SCREW THD ROLLING TT

30 6564590

  • 6564590 - FLANGE

31 25K40100

  • 25K40100 - O RING 10

32 6724282

  • 6724282 - KIT
  • SWITCH IGN
