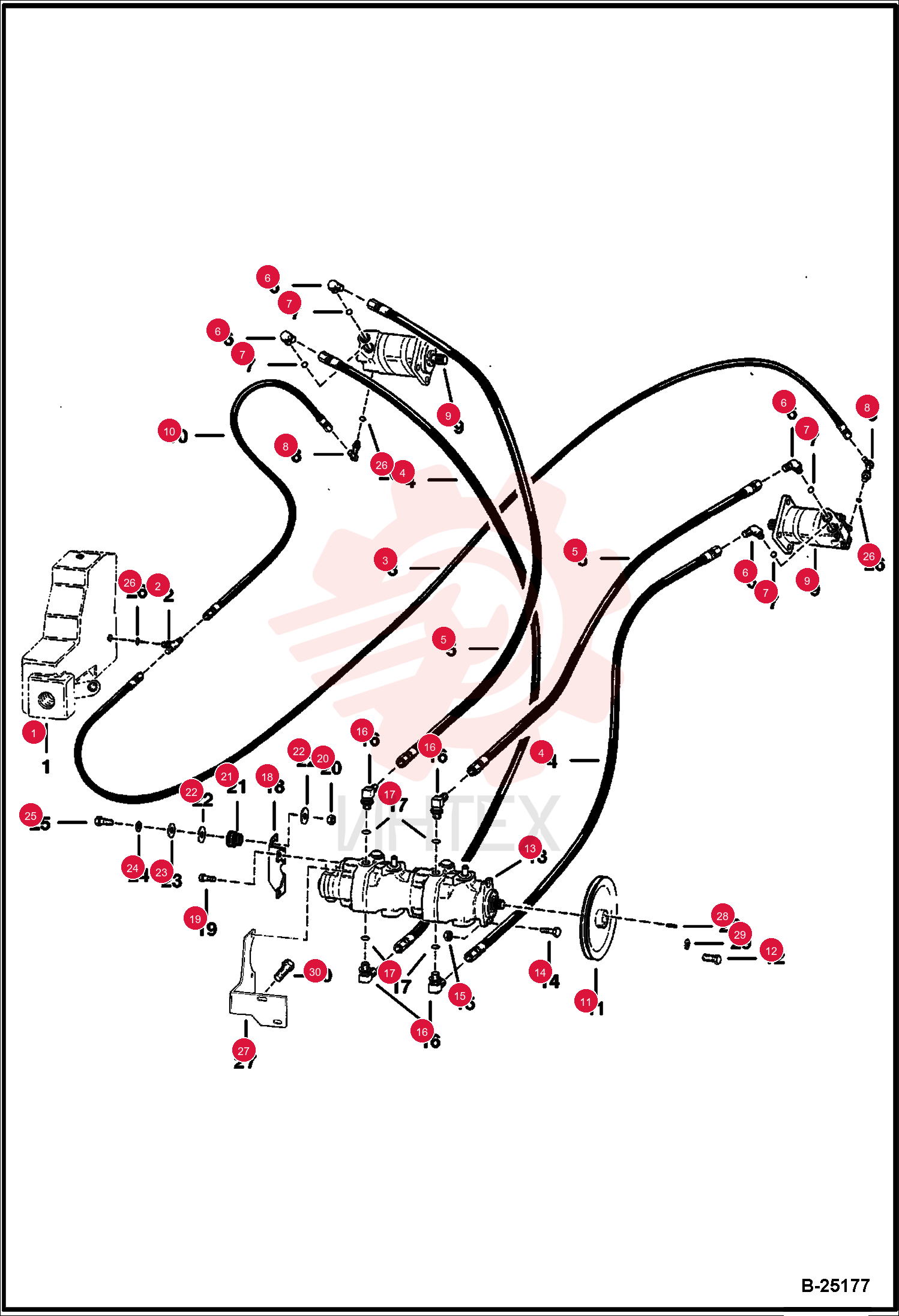

TANK 6564006 (2)

TANK 6564006 (2)

TANK 6564006 (2)

1 6564006

  • 6564006 - TANK

2 19K3

  • 19K3 - FITTING

3 6530858

  • 6530858 - HOSE

4 6530861

  • 6530861 - HOSE

5 6530860

  • 6530860 - HOSE

6 18K7

  • 18K7 - FITTING
  • W/Ref. 7

7 79K10

  • 79K10 - O RING 10

8 17K3

  • 17K3 - ELBOW
  • W/Ref. 26

9 6529344

  • 6529344 - HOSE
  • 14'' (356 mm)

10 6531174

  • 6531174 - PULLEY
  • tapered - Keyed

11 17C616

  • 17C616 - BOLT 5

12 35C628

  • 35C628 - BOLT

13 57D6

  • 57D6 - NUT HEX FLNG GR8

14 17KB1012

  • 17KB1012 - FITTING
  • HYD ELBOW
  • W/Ref. 17 - Was 1302104

15 79K12

  • 79K12 - O RING 10
  • Was 79K-16

16 6564055

  • 6564055 - MOUNT

17 7172914

  • 7172914 - BRACKET
  • PUMP GEAR
  • Use W/ 7003484 pump

18 17C628

  • 17C628 - BOLT

19 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

20 6560633

  • 6560633 - DAMPER
  • VIBRATION

21 6564692

  • 6564692 - WASHER

22 6565472

  • 6565472 - WASHER
  • .062" (1
  • 5748 mm) thick

23 6515817

  • 6515817 - WASHER
  • Use W/ 7003484 pump - .1793" (4
  • 554 mm) thick

24 25E21

  • 25E21 - WASHER FLAT PLAIN

25 17C844

  • 17C844 - BOLT

26 79K4

  • 79K4 - O RING 10

27 6563990

  • 6563990 - MOUNT
  • BRACKET

28 6598880

  • 6598880 - KEY
  • Use W/Tapered Shaft

29 616783

  • 616783 - WASHER

30 5CM1020

  • 5CM1020 - SCREW FL THD HEX CAP
