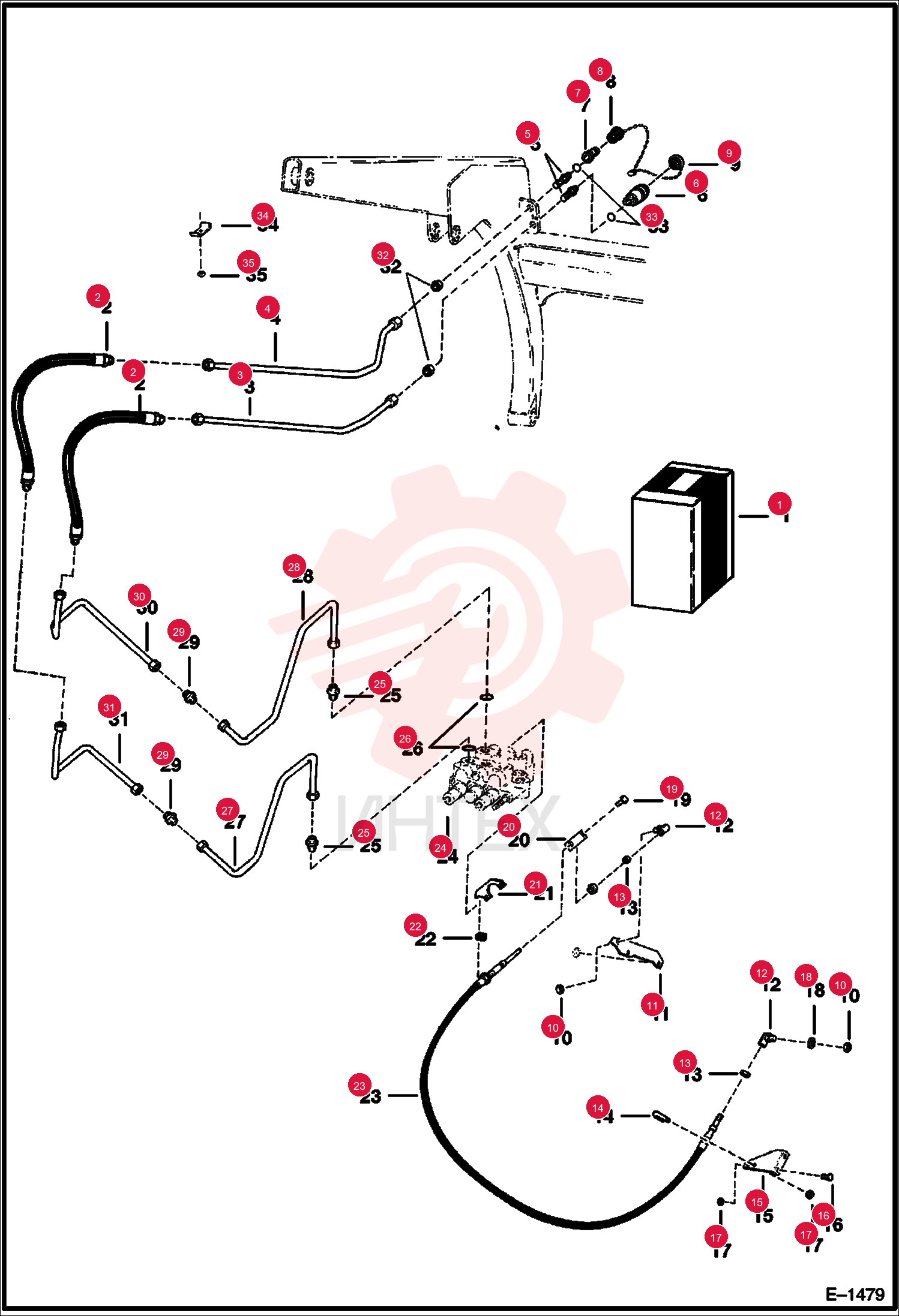

HOSE 6530855 (2)

HOSE 6530855 (2)

HOSE 6530855 (2)

1 6530855

  • 6530855 - HOSE
  • Was 6565078

2 6564122

  • 6564122 - TUBE

3 6564123

  • 6564123 - TUBE

4 45K6

  • 45K6 - CONNECTR

5 7246788

  • 7246788 - COUPLER
  • FF FEMALE
  • - straight - case drain - Was 6667805

6 7246788EF

  • 7246788EF - COUPLER FF FEMALE 3/8 BDY 1/2 SAE THREAD

7 25K30024

  • 25K30024 - O RING 10
  • For poppet syle couplers

8 73K116

  • 73K116 - RING
  • For poppet syle couplers

9 7246789EF

  • 7246789EF - COUPLER FF MALE 3/8 BODY 1/2 SAE THREAD

10 7246789

  • 7246789 - COUPLER FF MALE HTMA
  • - Was 6667806

11 3679001

  • 3679001 - CAP

12 3679000

  • 3679000 - PLUG-DUST

13 62D4

  • 62D4 - NUT HEX FINISHED GR5

14 6565268

  • 6565268 - MOUNT

15 6554858

  • 6554858 - BALL JOINT

16 8D4

  • 8D4 - NUT

17 6592766

  • 6592766 - U-BOLT

18 6564802

  • 6564802 - MOUNT

19 17C512

  • 17C512 - BOLT 5

20 61D5

  • 61D5 - NUT HEX FINISHED GR5

21 25E13

  • 25E13 - WASHER FLAT PLAIN

22 31C412

  • 31C412 - BOLT

23 6564246

  • 6564246 - CONNECTOR

24 6565386

  • 6565386 - GUIDE

25 6599469

  • 6599469 - CABLE

26 6592337

  • 6592337 - VALVE

27 731794

  • 731794 - CONNECTR

28 79K10

  • 79K10 - O RING 10

29 6565144

  • 6565144 - TUBE

30 6565145

  • 6565145 - TUBE

31 87F6

  • 87F6 - UNION HYDR LARGE HEX

32 6592960

  • 6592960 - TUBE

33 6592961

  • 6592961 - TUBE

34 86F6

  • 86F6 - NUT HYDR BHD LOCK

35 79K8

  • 79K8 - O RING 10

36 6502203

  • 6502203 - CLAMP

37 59D6

  • 59D6 - NUT LOCK HEX PT
