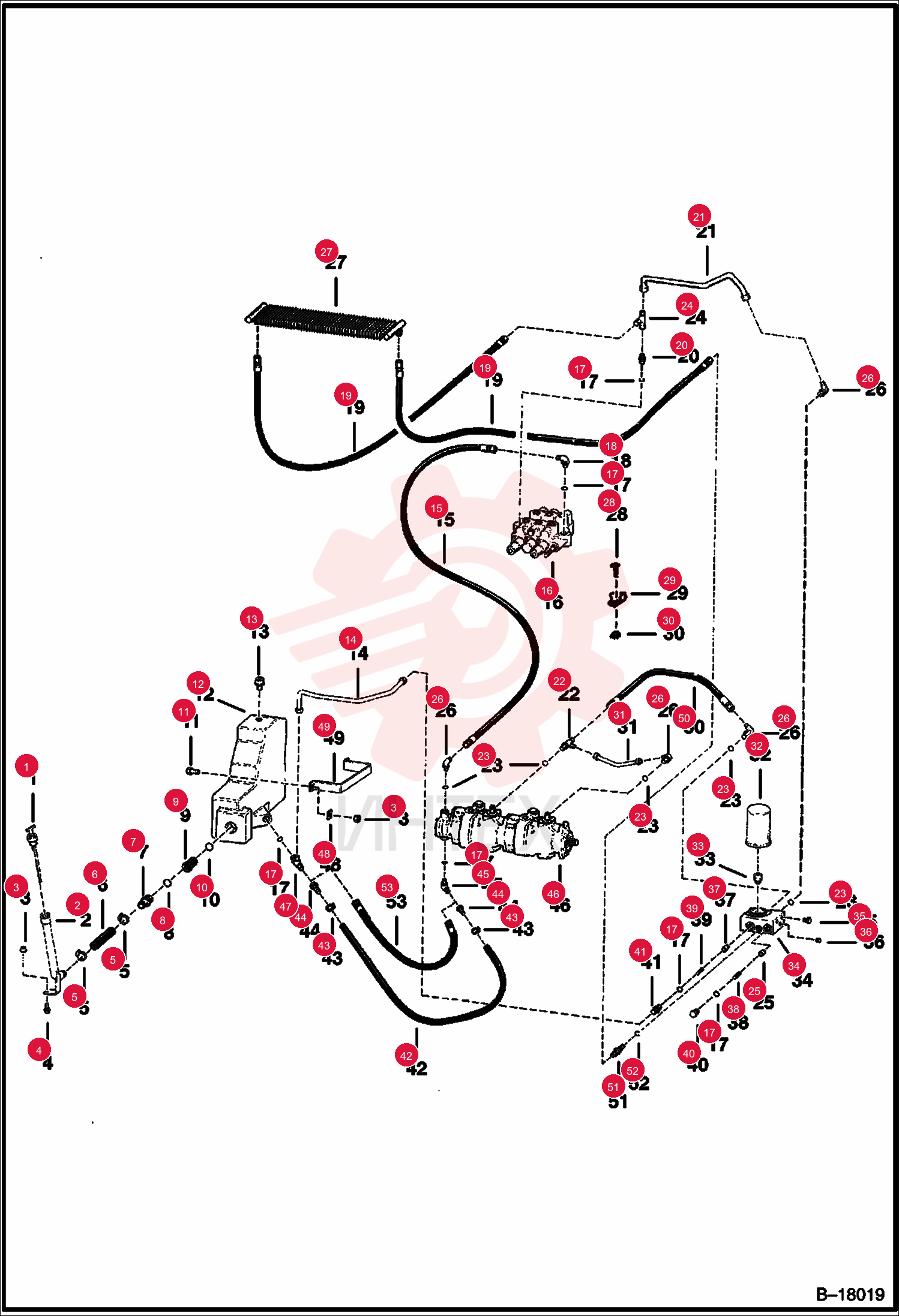

DIPSTICK HYDR 6564143 (2)
1 6564143
- 6564143 - DIPSTICK HYDR
2 6564146
- 6564146 - TUBE
3 85D6
- 85D6 - NUT PRETRQ HEX LOCK
4 84G3716
- 84G3716 - SCREW THD ROLLING TT
5 44H20
- 44H20 - CLAMP
- Was 6666864
6 6673824
- 6673824 - HOSE BULK/FOOT
- Was 1310810
7 1578365
- 1578365 - FITTING
8 79K20
- 79K20 - O RING 10
9 6564059
- 6564059 - SCREEN
10 25K40108
- 25K40108 - O RING 10
11 17C620
- 17C620 - BOLT
12 6564006
- 6564006 - TANK
13 7025626
- 7025626 - VENT
- BREATHER
- Was 6682923
14 6532575
- 6532575 - TUBE
15 6530857
- 6530857 - HOSE
- Was 6565078
16 6592337
- 6592337 - VALVE
17 79K10
- 79K10 - O RING 10
18 6565505
- 6565505 - ELBOW
19 6532572
- 6532572 - ASSY
- HOSE
20 731794
- 731794 - CONNECTR
21 6532576
- 6532576 - TUBE
22 21K6
- 21K6 - FITTING
- W/Ref. 23
23 79K8
- 79K8 - O RING 10
24 13K6
- 13K6 - TEE
25 6565620
- 6565620 - POPPET
26 17K6
- 17K6 - ELBOW
- W/Ref. 23
27 6564086
- 6564086 - COOLER
- OIL
28 10C512
- 10C512 - BOLT SQ NECK RND HD
- Was 6553808
29 30H41
- 30H41 - CLIP
30 61D5
- 61D5 - NUT HEX FINISHED GR5
31 6564119
- 6564119 - TUBE
32 6661248
- 6661248 - FILTER
- OIL HYD 12
- #3 media - 152
- 4 mm (6") long - Was 6599543
33 6563977
- 6563977 - INSERT PORT BLOCK
34 17C612
- 17C612 - SCREW HEX CAP
35 40K2
- 40K2 - PLUG HEX
36 7320430
- 7320430 - VALVE POPPET
- Was 6734350
37 6532403
- 6532403 - SPRING
38 6563978
- 6563978 - SPRING
39 6561811
- 6561811 - PLUG
40 6562656
- 6562656 - ADAPTOR
41 6630058
- 6630058 - HOSE
- BULK
- bulk sold per foot - Was 6565617
42 42H12
- 42H12 - CLAMP 10
- Use W/Ref. 42
43 6630059
- 6630059 - FITTING
- Use W/Ref. 42
44 17K7
- 17K7 - ELBOW
- W/Ref. 17
45 21K7
- 21K7 - FITTING
- TEE
- W/Ref. 17
46 6559447
- 6559447 - WASHER
47 6564151
- 6564151 - TANK BAND
- Must be formed to fit tank
48 6532571
- 6532571 - TUBE
49 755056
- 755056 - CONNECTR
50 79K6
- 79K6 - O RING 10
51 6714728
- 6714728 - HOSE
- 1 piece - can be used in place of Ref. 42
- 43
- 44 - Was 6701002
