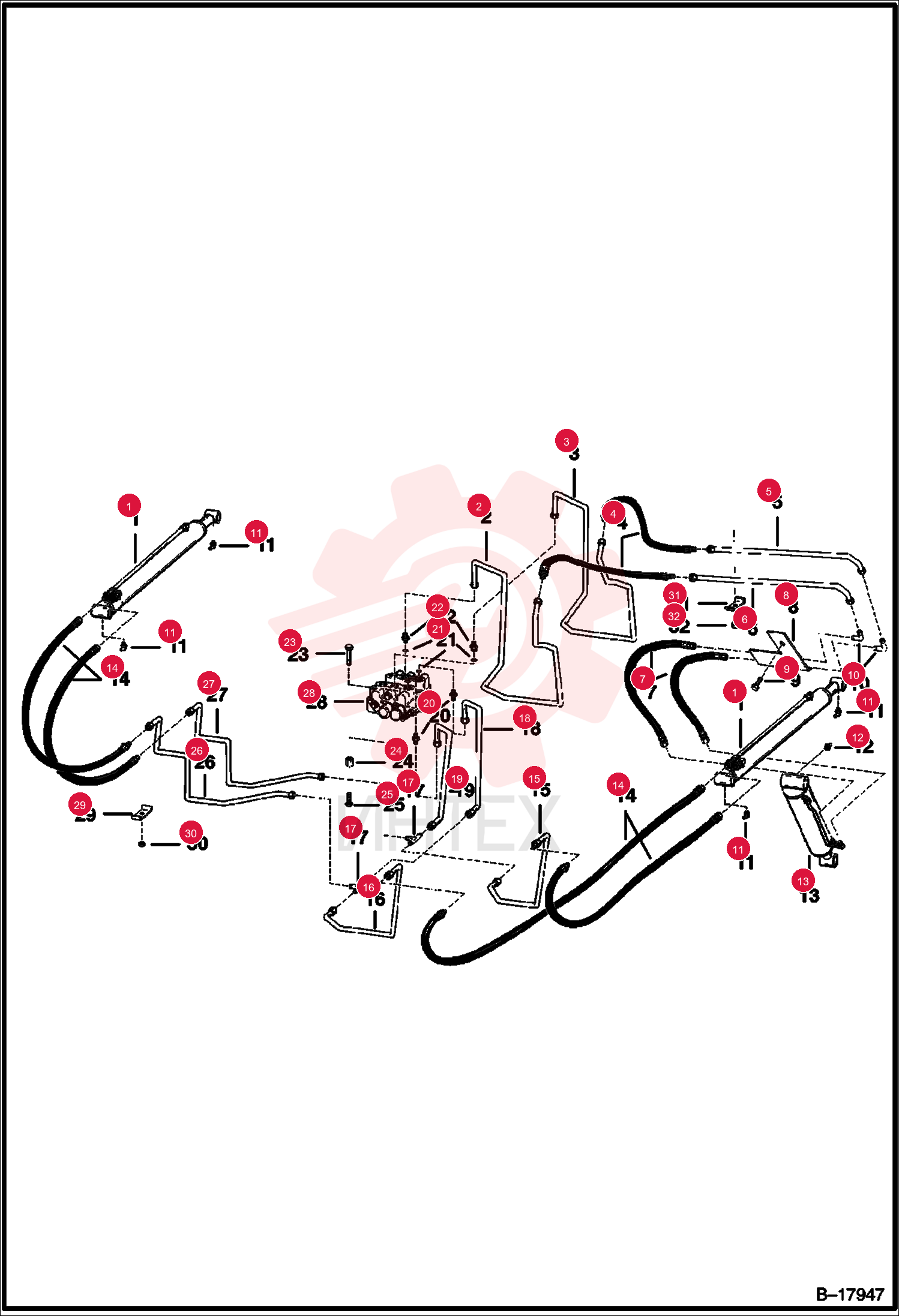

TUBE 6564113 (2)

TUBE 6564113 (2)

TUBE 6564113 (2)

1 6564113

  • 6564113 - TUBE

2 6564114

  • 6564114 - TUBE

3 6530855

  • 6530855 - HOSE

4 6706073

  • 6706073 - TUBELINE
  • Use W/O Ref. 10

5 6564116

  • 6564116 - TUBE
  • Use W/Ref. 10

6 6706072

  • 6706072 - TUBELINE
  • Use W/O Ref. 10

7 6564115

  • 6564115 - TUBE
  • Use W/Ref. 10

8 6706074

  • 6706074 - HOSE
  • Use W/O Ref. 10

9 6530857

  • 6530857 - HOSE
  • Use W/Ref. 10 - Was 6565078

10 6553422

  • 6553422 - BRACKET

11 84G3724

  • 84G3724 - SCREW THD ROLLING TT

12 77F6

  • 77F6 - ELBOW HYDR 90 UNION
  • 37 degree flared union

13 11H15

  • 11H15 - FTG GREASE STRAIGHT

14 10H25

  • 10H25 - FTG GREASE STRAIGHT

15 6592700

  • 6592700 - CYLINDER
  • TILT
  • TILT

16 6530859

  • 6530859 - HOSE

17 6564107

  • 6564107 - TUBELINE

18 6564108

  • 6564108 - TUBELINE

19 10K5

  • 10K5 - TEE

20 6564112

  • 6564112 - TUBE

21 731795

  • 731795 - CONNECTR
  • W/Ref. 21

22 79K10

  • 79K10 - O RING 10

23 731794

  • 731794 - CONNECTR
  • W/Ref. 21

24 17C556

  • 17C556 - BOLT

25 17C508

  • 17C508 - BOLT

26 6564110

  • 6564110 - TUBELINE

27 6564109

  • 6564109 - TUBELINE

28 6500989

  • 6500989 - TUBE CLAMP

29 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

30 6502203

  • 6502203 - CLAMP

31 59D6

  • 59D6 - NUT LOCK HEX PT
