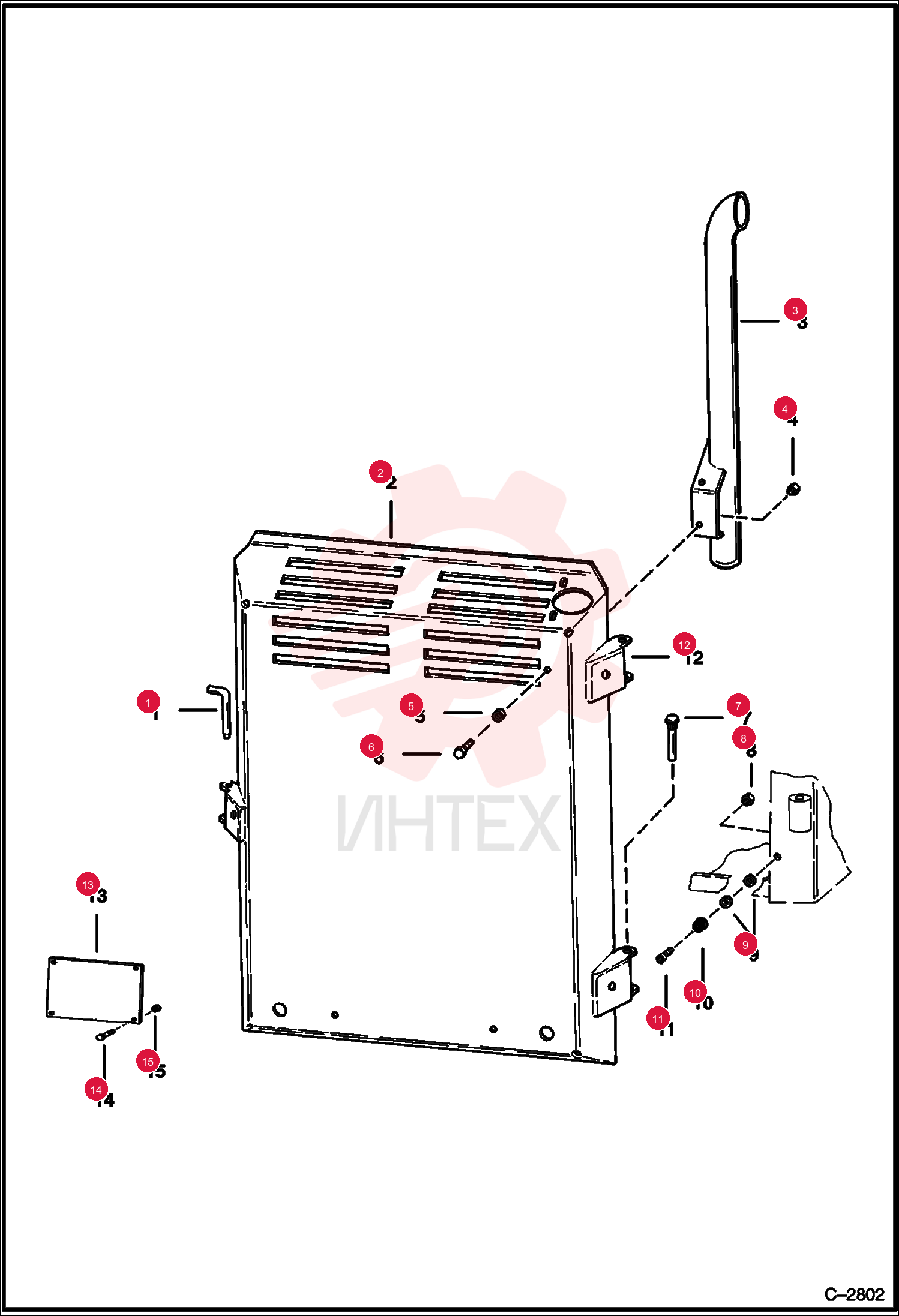

PIN LATCH 6564192 (2)

PIN LATCH 6564192 (2)

PIN LATCH 6564192 (2)

1 6564192

  • 6564192 - PIN LATCH

2 6712642

  • 6712642 - PIPE
  • EXHAUST
  • short

3 6565813

  • 6565813 - PIPE
  • EXHAUST
  • long

4 61D6

  • 61D6 - NUT HEX FINISHED GR5

5 25E17

  • 25E17 - WASHER FLAT PLAIN

6 17C612

  • 17C612 - SCREW HEX CAP

7 6564340

  • 6564340 - PIN HINGE

8 83D5

  • 83D5 - LKNUT HEX FLG GR8

9 25E16

  • 25E16 - WASHER FLAT PLAIN

10 6511847

  • 6511847 - BUMPER

11 73G516

  • 73G516 - SCREW

12 6562225

  • 6562225 - HINGE

13 6707884

  • 6707884 - COVER

14 25G514

  • 25G514 - BOLT

15 83D5

  • 83D5 - LKNUT HEX FLG GR8
