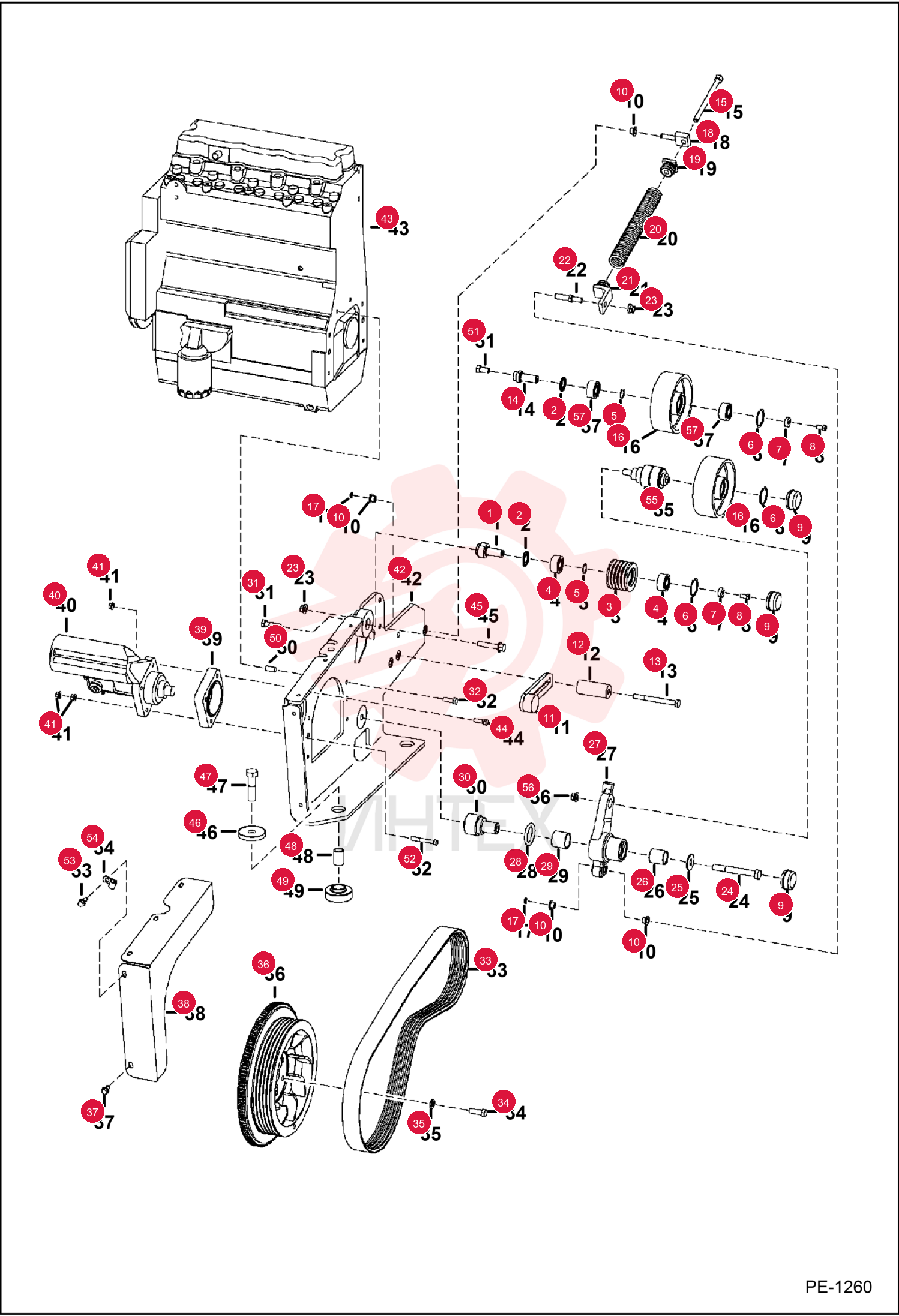

PIN 6800293 (2)
1 6800293
- 6800293 - PIN
- top idler
2 6665307
- 6665307 - SEAL
3 6800688
- 6800688 - PULLEY
- top idler
4 6661229
- 6661229 - BEARING
- BALL
5 6701159
- 6701159 - SHIM
6 6665308
- 6665308 - RING
- RETAINER
7 6707697
- 6707697 - WASHER
8 17C612
- 17C612 - SCREW HEX CAP
9 6660967
- 6660967 - CAP
- GREASE
- Use 6658266 grease
10 1313116
- 1313116 - BUSHING
11 6800238
- 6800238 - STOP
- idler
12 6801005
- 6801005 - SPACER
- 3.5" (88.9 mm) long
13 6810144
- 6810144 - WASHER
- .106" thick
14 17C880
- 17C880 - BOLT
- .5" dia x 5" length
15 17C828
- 17C828 - BOLT
- .5" x 1.75"
16 6800450
- 6800450 - BOLT
17 6800475
- 6800475 - IDLER
- drive
18 6518955
- 6518955 - SNAP RING
19 6587182
- 6587182 - SWVL PIN
- swivel
20 6568425
- 6568425 - ADAPTER
21 6569498
- 6569498 - SPRING ASSEMBLY
22 6596850
- 6596850 - BRACKET
- idler
23 6596851
- 6596851 - PIN
- idler
24 55D8
- 55D8 - NUT
25 17C1080
- 17C1080 - SCREW
26 6596839
- 6596839 - WASHER
27 6671035
- 6671035 - BEARING
28 6802839
- 6802839 - LINK IDLER
- idler
29 6661377
- 6661377 - SEAL
30 6802852
- 6802852 - BEARING
31 6802854
- 6802854 - LINK IDLER
32 17C828
- 17C828 - BOLT
33 1CM1030
- 1CM1030 - BOLT
34 6669565
- 6669565 - BELT
- DRIVE
- drive
35 18C824
- 18C824 - BOLT
36 6557929
- 6557929 - WASHER
37 6800808
- 6800808 - FLYWHEEL
- engine
38 6515771
- 6515771 - GEAR
- RING
39 84G3712
- 84G3712 - SCREW THD ROLLING TT
40 6805563
- 6805563 - SHIELD DRIVE
- drive
41 6562480
- 6562480 - BLOCK
- starter
42 97D6
- 97D6 - NUT 10
43 6805974
- 6805974 - MOUNT REAR
- rear engine - Was 6800320
44 17C644
- 17C644 - BOLT
45 35C840
- 35C840 - BOLT
46 6802984
- 6802984 - WASHER
47 17C1248
- 17C1248 - BOLT
48 6806112
- 6806112 - SPACER TUBE
- tube
49 6661785
- 6661785 - MOUNT ENGINE
- engine
50 6924344
- 6924344 - DOWEL
- Was 3725347
51 17C652
- 17C652 - BOLT
52 84G3716
- 84G3716 - SCREW THD ROLLING TT
53 30H31
- 30H31 - CLAMP 10
54 6691330
- 6691330 - BEARING
55 95D8
- 95D8 - NUT
