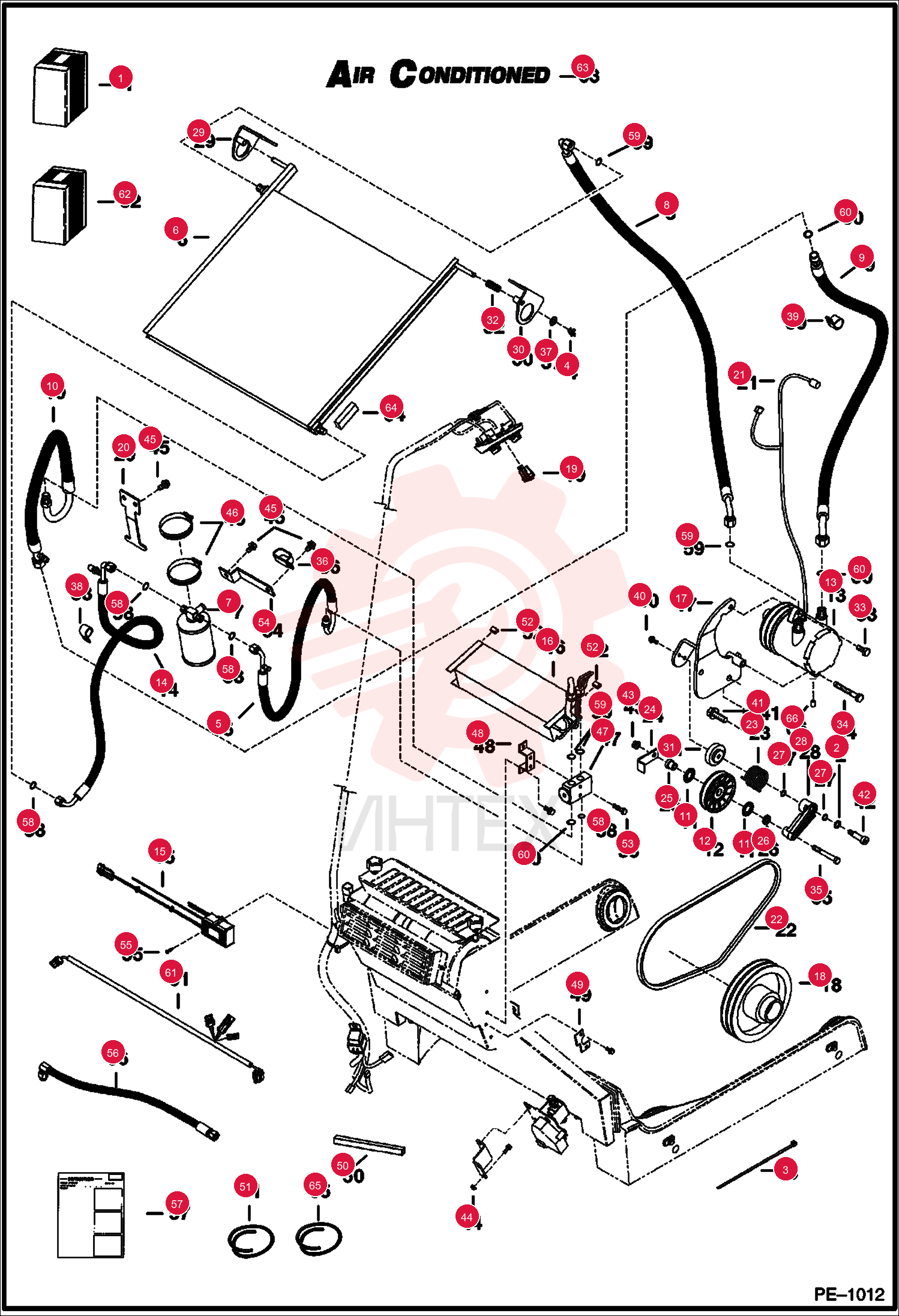

KIT, A/C 6808381

KIT, A/C 6808381

KIT, A/C 6808381

1 6808381

  • 6808381 - KIT
  • A/C
  • Ref. 2 - 57

2 6655781

  • 6655781 - BEARING
  • THRUST
  • thrust

3 6624289

  • 6624289 - STRAP
  • TIE

4 6631418

  • 6631418 - RING RUE

5 6677122

  • 6677122 - CAP

6 6675366

  • 6675366 - HOSE
  • ac

7 6675371

  • 6675371 - CONDENSER

8 6676062

  • 6676062 - VALVE
  • RELIEF PRESS

9 6674235

  • 6674235 - RECEIVER
  • DRIER A/C
  • reciever

10 6675368

  • 6675368 - HOSE
  • ac

11 6675369

  • 6675369 - HOSE
  • ac

12 6677121

  • 6677121 - CAP

13 6675370

  • 6675370 - HOSE
  • ac

14 6660995

  • 6660995 - RING
  • GREASE

15 6662997

  • 6662997 - PULLEY
  • FAN DRIVE IDLER
  • idler

16 6679145

  • 6679145 - CLUTCH

17 6733655

  • 6733655 - COMPRESSOR
  • A/C
  • W/Ref. 66

18 6676399

  • 6676399 - VALVE CORE

19 6675779

  • 6675779 - SWITCH
  • PRESS
  • pressure

20 6675686

  • 6675686 - HOSE
  • ac

21 6683004

  • 6683004 - THERMOSTAT
  • Was 6675790

22 6683003

  • 6683003 - COIL
  • EVAPORATOR
  • evaporator - Was 6675533

23 6811014

  • 6811014 - MOUNT
  • compressor - Was 6806870

24 6675365

  • 6675365 - PULLEY
  • ENG
  • engine

25 7169112

  • 7169112 - SWITCH
  • ROCKER A/C
  • Was 6719176

26 6806273

  • 6806273 - MOUNT REC/DRIER
  • reciever drier

27 6719630

  • 6719630 - HARNESS A/C
  • ac

28 6807036

  • 6807036 - BELT COMP.
  • compressor

29 6700722

  • 6700722 - SPRING
  • torsion

30 6702474

  • 6702474 - RETAINER
  • belt

31 6704443

  • 6704443 - BUSHING

32 6704444

  • 6704444 - WASHER

33 6704820

  • 6704820 - O-RING

34 6725212

  • 6725212 - ARM
  • IDLER
  • pulley

35 6806882

  • 6806882 - BRACKET
  • LH
  • left

36 6806883

  • 6806883 - BRACKET
  • RH
  • right

37 6807422

  • 6807422 - BOSS

38 6807576

  • 6807576 - SPRING
  • compression

39 5CM1025

  • 5CM1025 - SCREW FL THD HEX CAP

40 5CM1080

  • 5CM1080 - SCREW

41 17C648

  • 17C648 - SCREW HEX CAP

42 31H46

  • 31H46 - CLAMP
  • Was 31H000042B

43 25E17

  • 25E17 - WASHER FLAT PLAIN

44 30H50

  • 30H50 - CLAMP

45 30H65

  • 30H65 - CLIP

46 35C410

  • 35C410 - SCREW HEX HD W/F GR5

47 17C828

  • 17C828 - BOLT
  • Was 35C000824B

48 38C820

  • 38C820 - SCREW

49 55D6

  • 55D6 - NUT

50 57D5

  • 57D5 - NUT HEX FLNG GR8

51 84G3712

  • 84G3712 - SCREW THD ROLLING TT

52 44H48

  • 44H48 - CLAMP
  • Was 6515576

53 6675534

  • 6675534 - BLOCK
  • VALVE A/C

54 6676984

  • 6676984 - BRACKET
  • TANK
  • Was 6675536

55 6677105

  • 6677105 - COVER
  • Was 6675537

56 6676538

  • 6676538 - INSULATION TAPE FT
  • bulk - sold per foot

57 6676539

  • 6676539 - CLIP PANEL

58 1CM635

  • 1CM635 - BOLT

59 6727326

  • 6727326 - MOUNT
  • clamp

60 6726621

  • 6726621 - SCREW

61 6808285

  • 6808285 - HOSE

62 6901075

  • 6901075 - INSTRUCTIONS

63 7009976

  • 7009976 - O-RING
  • #6 - Was 6675824

64 7009977

  • 7009977 - O-RING
  • #8 - Was 6675538

65 7009978

  • 7009978 - O-RING
  • #10 - Was 6675825

66 6726357

  • 6726357 - HVAC ADPTR HARN
  • hvac jumper - connects the old hvac harness' (6725275 or 6717877 ) to the ac harness (6719630 ) and the thermostat

67 7302291

  • 7302291 - KIT
  • BELT TENSIONER
  • Ref. 2
  • 11
  • 12
  • 24-28
  • 42 & (1) 61D6 nut
  • (1) 73G656 bolt & (1) 6700115 spring

68 6729077

  • 6729077 - DECAL
  • Air Conditioned

69 6732732

  • 6732732 - BUSHING
  • Use W/Ref. 13 (6733655 compressor)
