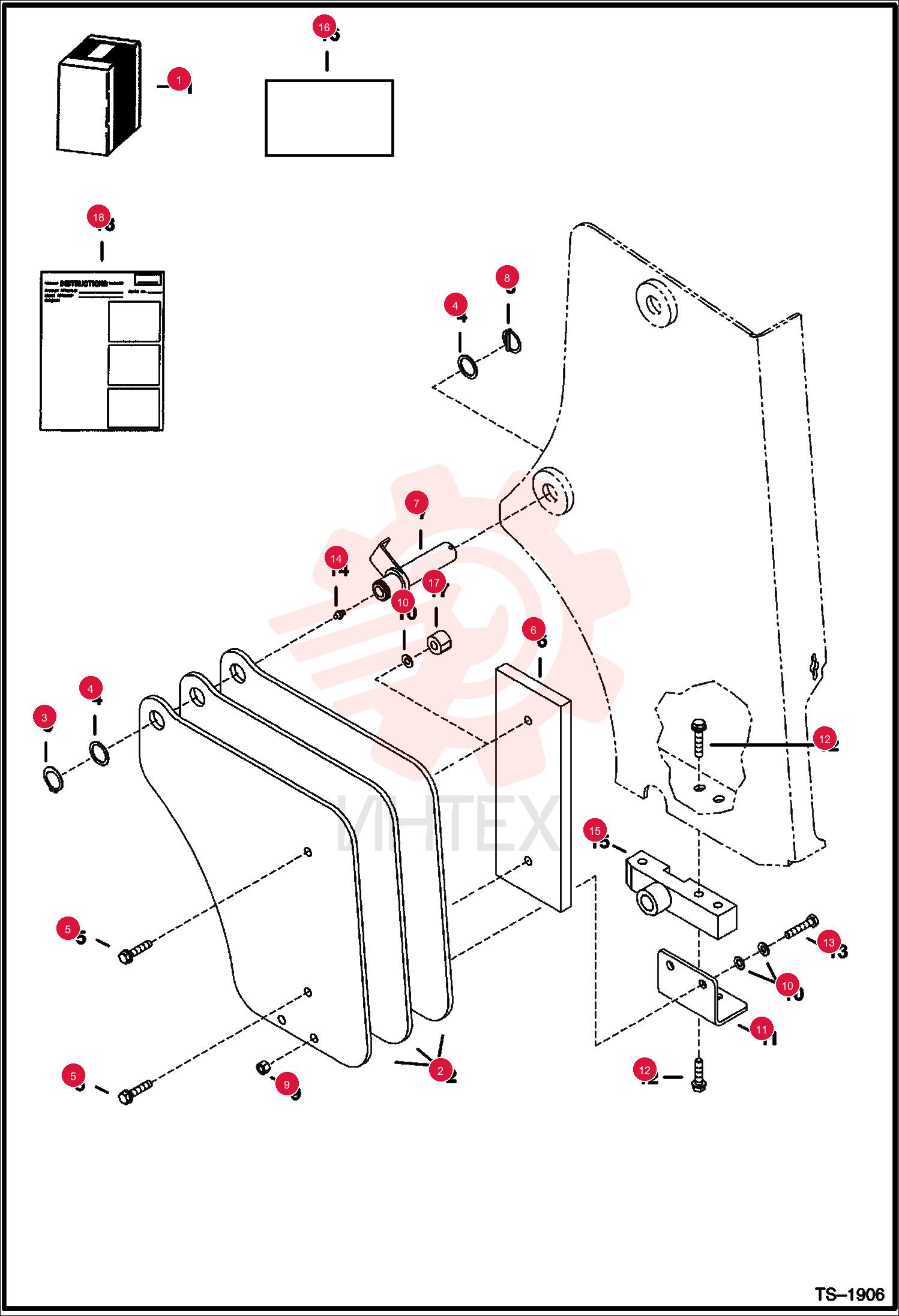

WEIGHT 6805763 (2)

WEIGHT 6805763 (2)

WEIGHT 6805763 (2)

1 6805763

  • 6805763 - WEIGHT
  • 78.5 lbs (34
  • 5 kg)

2 6668787

  • 6668787 - RING
  • SNAP
  • retaining

3 6803046

  • 6803046 - WASHER

4 31C1236

  • 31C1236 - BOLT
  • 3650 lb

5 31C1236

  • 31C1236 - BOLT
  • 3500 lb

6 6806430

  • 6806430 - PLATE
  • 62 lbs (27
  • 3 kg)

7 6715876

  • 6715876 - PIN

8 6510020

  • 6510020 - PIN
  • LOCK

9 53D12

  • 53D12 - NUT
  • Was 83D000012B

10 27E12

  • 27E12 - WASHER

11 6805762

  • 6805762 - MOUNT RH
  • R.H.

12 6805761

  • 6805761 - MOUNT LH
  • L.H.

13 31C1228

  • 31C1228 - BOLT

14 17C1248

  • 17C1248 - BOLT

15 10H25

  • 10H25 - FTG GREASE STRAIGHT

16 6803245

  • 6803245 - BUSHING

17 6806071

  • 6806071 - DECAL
  • 3500 lb

18 6807724

  • 6807724 - DECAL LOAD
  • 3650 lb - Was 6806947

19 6805764

  • 6805764 - BUSHING
  • 3500 lb

20 6900833

  • 6900833 - INSTRUCTIONS
