963
/

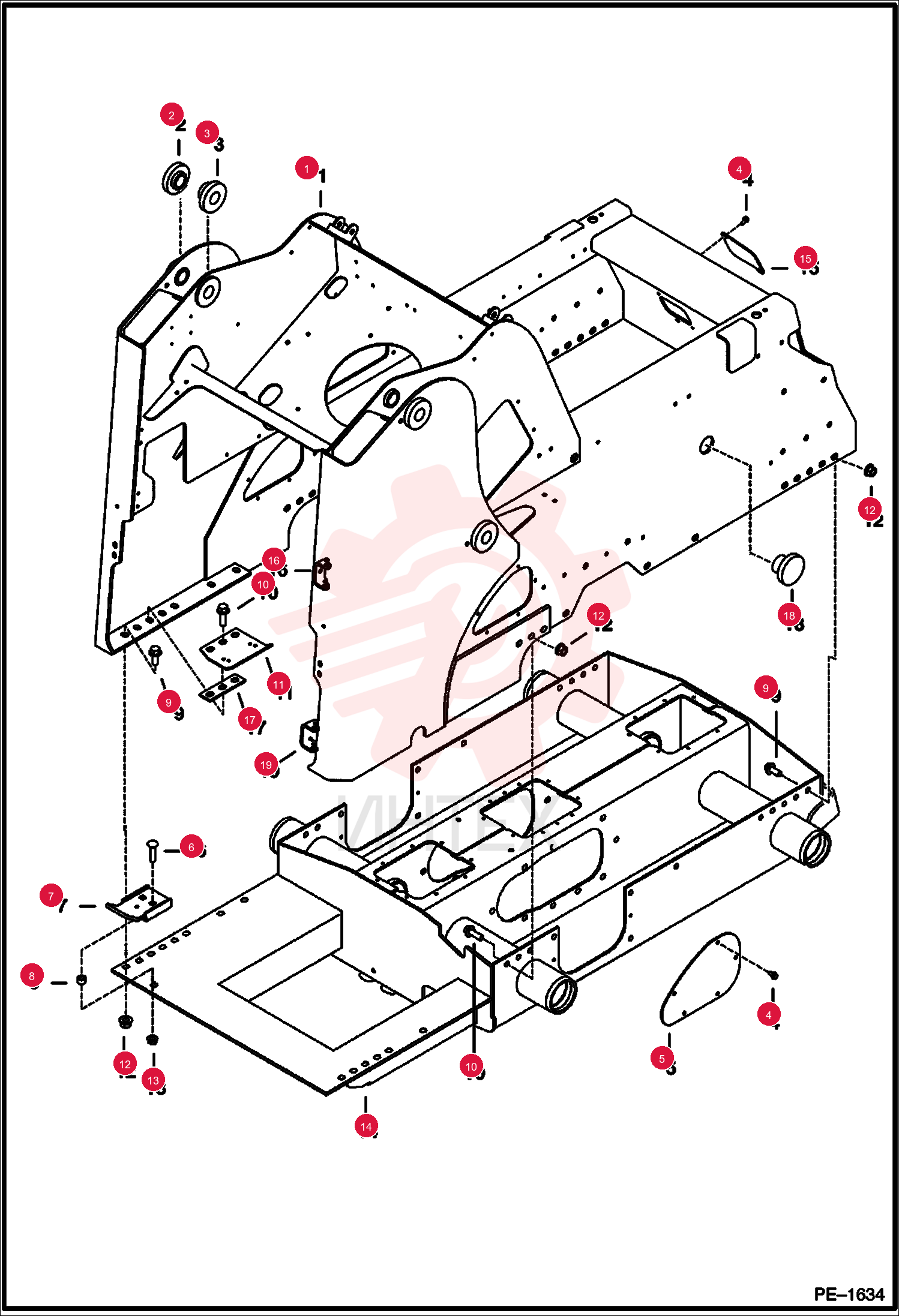

MAIN FRAME 6805582

MAIN FRAME 6805582

MAIN FRAME 6805582

1 6805582

  • 6805582 - MAIN FRAME

2 6597280

  • 6597280 - BUSHING

3 6597281

  • 6597281 - BUSHING

4 84G3712

  • 84G3712 - SCREW THD ROLLING TT

5 6805462

  • 6805462 - COVER ACCESS

6 37C1040

  • 37C1040 - BOLT

7 6806890

  • 6806890 - BRACKET

8 6807262

  • 6807262 - SPACER

9 31C1228

  • 31C1228 - BOLT

10 31C1236

  • 31C1236 - BOLT

11 6597595

  • 6597595 - BRACKET

12 53D12

  • 53D12 - NUT
  • Was 83D000012B

13 53D10

  • 53D10 - NUT

14 6737088

  • 6737088 - COVER
  • ACCESS
  • access - Was 6577812

15 6708987

  • 6708987 - HINGE
  • WELD-ON

16 6806893

  • 6806893 - PLATE
  • 3 hole spacer

17 6718796

  • 6718796 - PLUG

18 6806563

  • 6806563 - BRACKET
  • Weld On
