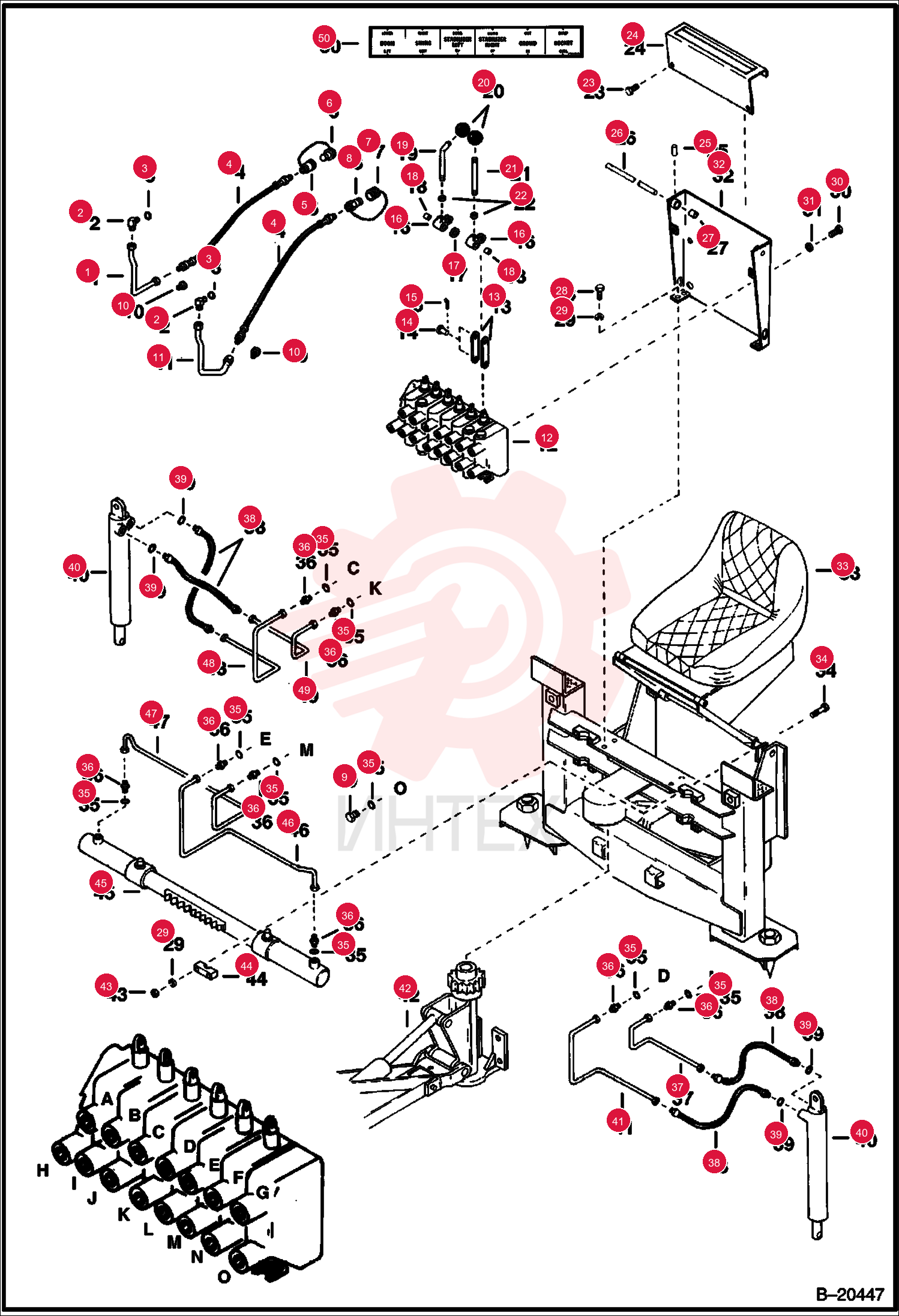

TUBE 6519819 (1)

TUBE 6519819 (1)

TUBE 6519819 (1)

1 6519819

  • 6519819 - TUBE

2 17K7

  • 17K7 - ELBOW
  • W/Ref. 3

3 79K10

  • 79K10 - O RING 10
  • Was 91F000007B

4 6504514

  • 6504514 - ASSY
  • HOSE

5 25K40026

  • 25K40026 - O RING 10

6 6598756

  • 6598756 - COUPLER
  • female

7 6515167

  • 6515167 - CAP
  • W/chain

8 6515168

  • 6515168 - CAP
  • W/chain

9 6598755

  • 6598755 - COUPLER
  • male

10 24K6

  • 24K6 - PLUG HYDR ORING BOSS
  • W/Ref. 35

11 93F7

  • 93F7 - CONNCTR

12 6510131

  • 6510131 - LINKS

13 6518002

  • 6518002 - PIN

14 1F208

  • 1F208 - PIN

15 6510132

  • 6510132 - LEVER
  • lever - W/Bushings

16 6510315

  • 6510315 - BUSHING

17 6510129

  • 6510129 - HANDLE
  • control

18 6510130

  • 6510130 - KNOB

19 6510128

  • 6510128 - ROD
  • control

20 7D6

  • 7D6 - NUT

21 84G3112

  • 84G3112 - SCREW THD ROLLING TT
  • Was 14G-512

22 6518005

  • 6518005 - COVER

23 659648

  • 659648 - PIN
  • Was 654724

24 6518000

  • 6518000 - LEVER

25 17C620

  • 17C620 - BOLT

26 4E6

  • 4E6 - WASHER

27 17C716

  • 17C716 - BOLT

28 4E7

  • 4E7 - WASHER

29 6518004

  • 6518004 - BRACKET

30 17C644

  • 17C644 - BOLT

31 79K8

  • 79K8 - O RING 10
  • Was 91F000006B

32 15K6

  • 15K6 - ADAPTER
  • W/Ref. 35

33 6510138

  • 6510138 - TUBE

34 6510199

  • 6510199 - ASSY
  • HOSE

35 79K6

  • 79K6 - O RING 10
  • Was 91F000005B

36 6510140

  • 6510140 - TUBE

37 61D6

  • 61D6 - NUT HEX FINISHED GR5

38 6518969

  • 6518969 - RING
  • RETAINER

39 6518012

  • 6518012 - CYLINDER

40 6510136

  • 6510136 - TUBE

41 6510141

  • 6510141 - TUBE

42 6510139

  • 6510139 - TUBE

43 6561627

  • 6561627 - DECAL
  • levers
