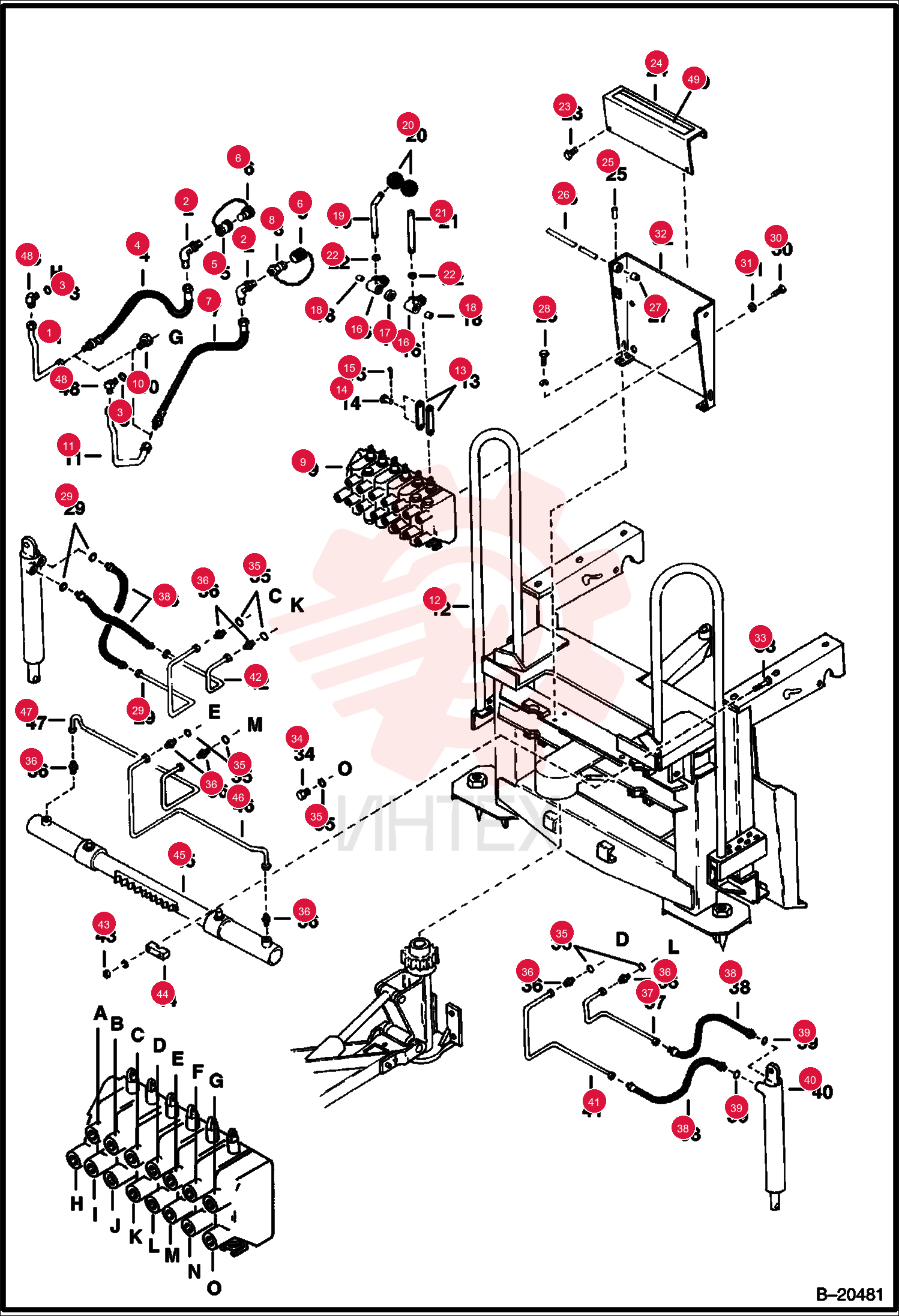

TUBE 6519819 (2)

TUBE 6519819 (2)

TUBE 6519819 (2)

1 6519819

  • 6519819 - TUBE

2 17K7

  • 17K7 - ELBOW
  • Use with poppet couplers

3 17KB1012

  • 17KB1012 - FITTING
  • HYD ELBOW
  • Use with flush face couplers - Was 1302104B

4 79K10

  • 79K10 - O RING 10
  • Use with poppet couplers

5 79K12

  • 79K12 - O RING 10
  • Use with flush face couplers

6 6560787

  • 6560787 - HOSE

7 6598758

  • 6598758 - COUPLER FF FEMALE
  • straight

8 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

9 48K16

  • 48K16 - O RING 10
  • for poppet coupler

10 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

11 6513709

  • 6513709 - CAP AND PLUG
  • assy. - rubber

12 6515168

  • 6515168 - CAP
  • steel

13 6515167

  • 6515167 - CAP
  • steel

14 6560786

  • 6560786 - ASSY
  • HOSE

15 6598757

  • 6598757 - COUPLER
  • POPPET MALE
  • straight

16 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

17 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

18 6518006

  • 6518006 - VALVE

19 93F7

  • 93F7 - CONNCTR

20 6510131

  • 6510131 - LINKS

21 6518002

  • 6518002 - PIN

22 6510316

  • 6510316 - PIN

23 1F208

  • 1F208 - PIN

24 6510132

  • 6510132 - LEVER

25 6510315

  • 6510315 - BUSHING

26 6510129

  • 6510129 - HANDLE

27 6510130

  • 6510130 - KNOB

28 6510128

  • 6510128 - ROD

29 7D6

  • 7D6 - NUT

30 84G3112

  • 84G3112 - SCREW THD ROLLING TT
  • Was 14G-512

31 6518005

  • 6518005 - COVER

32 659648

  • 659648 - PIN
  • Was 654724

33 6518000

  • 6518000 - LEVER

34 6518001

  • 6518001 - SPACER

35 17C620

  • 17C620 - BOLT

36 6510141

  • 6510141 - TUBE

37 17C716

  • 17C716 - BOLT

38 4E7

  • 4E7 - WASHER

39 6518004

  • 6518004 - BRACKET
  • valve mtg.

40 17C644

  • 17C644 - BOLT

41 24K6

  • 24K6 - PLUG HYDR ORING BOSS

42 79K8

  • 79K8 - O RING 10

43 15K6

  • 15K6 - ADAPTER
  • W/Ref. 35

44 6510138

  • 6510138 - TUBE

45 6510199

  • 6510199 - ASSY
  • HOSE

46 79K6

  • 79K6 - O RING 10

47 6510140

  • 6510140 - TUBE

48 6510139

  • 6510139 - TUBE

49 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

50 6518969

  • 6518969 - RING
  • RETAINER

51 6518012

  • 6518012 - CYLINDER

52 6510136

  • 6510136 - TUBE

53 17K7

  • 17K7 - ELBOW

54 6561627

  • 6561627 - DECAL
