Bobcat
/
443
/

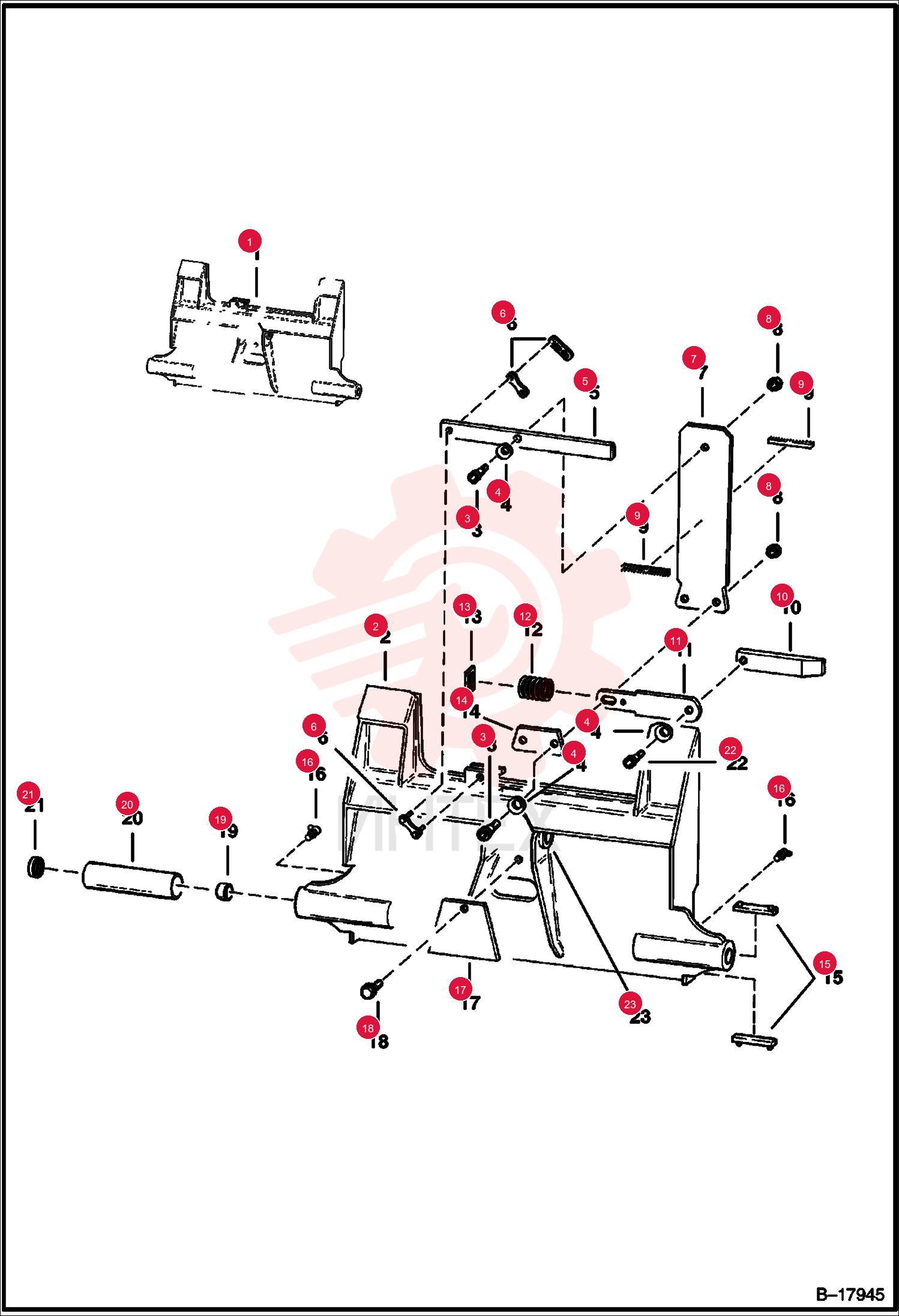

BOLT 38C810 (1)

BOLT 38C810 (1)

BOLT 38C810 (1)

1 38C810

  • 38C810 - BOLT
  • Was 661846B

2 6512913

  • 6512913 - WASHER

3 6563912

  • 6563912 - LEVER

4 6558077

  • 6558077 - LINK
  • CONNECTING

5 6563911

  • 6563911 - SLIDE

6 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

7 6565193

  • 6565193 - GROMMET

8 6563909

  • 6563909 - WEDGE

9 6563910

  • 6563910 - LINK

10 6565156

  • 6565156 - SPRING

11 6564454

  • 6564454 - WASHER

12 6563913

  • 6563913 - LINK

13 6562026

  • 6562026 - INSERT 5

14 12H15

  • 12H15 - FTG GREASE 90

15 6565192

  • 6565192 - COVER

16 84G3712

  • 84G3712 - SCREW THD ROLLING TT

17 215842

  • 215842 - PLUG
  • Use only on older models

18 6565160

  • 6565160 - BUSHING
  • weld on

19 1990599

  • 1990599 - GREASE SEAL

20 38C806

  • 38C806 - BOLT
  • Was 1308910B

21 6563830

  • 6563830 - BUSHING
  • weld-on
