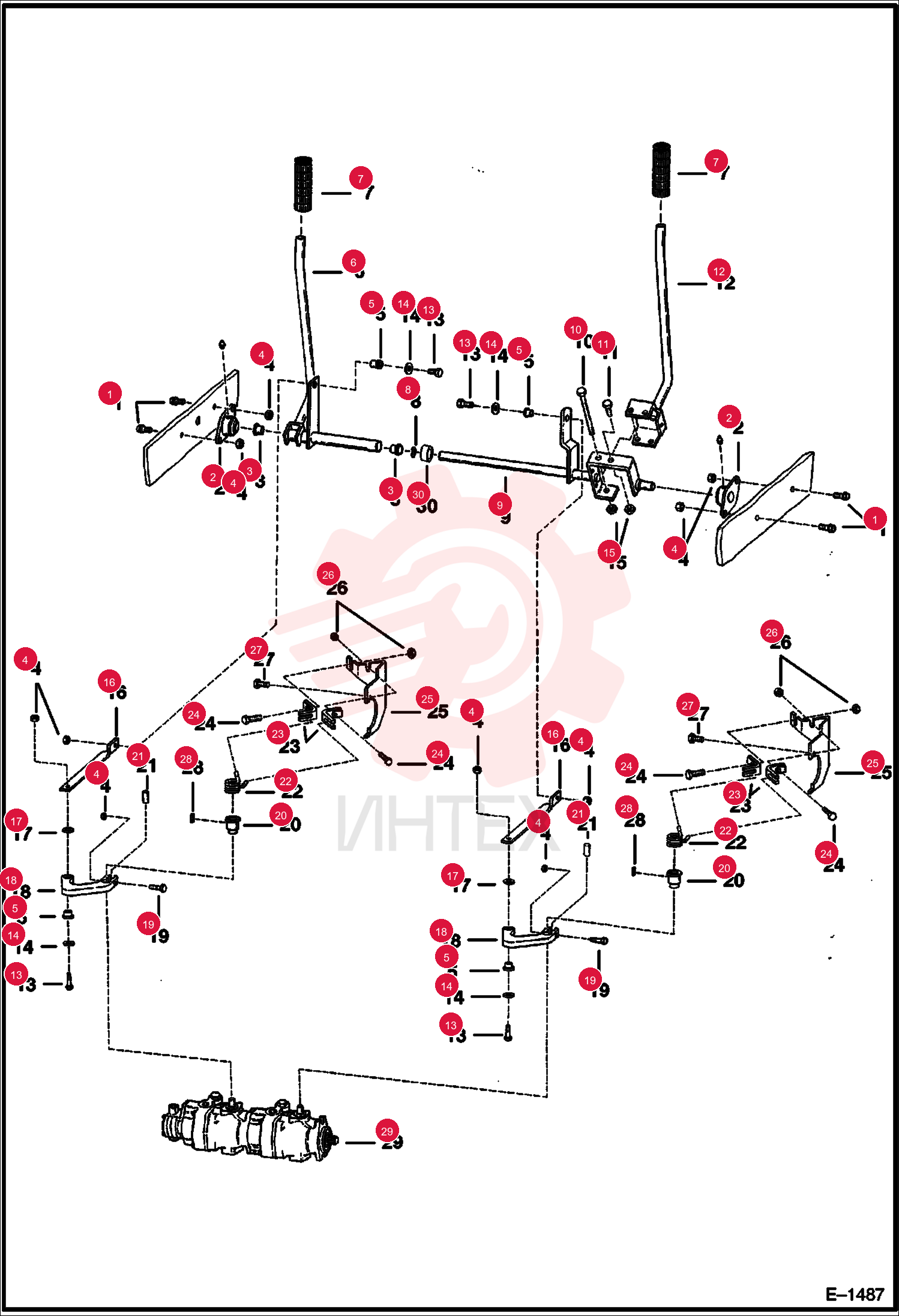

SCREW FLGD HEX CAP 35C612 (1)

SCREW FLGD HEX CAP 35C612 (1)

SCREW FLGD HEX CAP 35C612 (1)

1 35C612

  • 35C612 - SCREW FLGD HEX CAP
  • Was 31C000612B

2 6558736

  • 6558736 - BUSHING PIVOT

3 6512027

  • 6512027 - BUSHING

4 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

5 6665701

  • 6665701 - BUSHING
  • PRESS FIT
  • Was 6630081

6 6709408

  • 6709408 - STR LEVER

7 6513963

  • 6513963 - GRIP HANDLE

8 6599741

  • 6599741 - WASHER WAVE SPRING

9 6728012

  • 6728012 - SHFT ASSY
  • Use W/6728036 Spacer (Ref. 30)

10 6553081

  • 6553081 - BOLT AUX PIVOT

11 17C620

  • 17C620 - BOLT

12 6707406

  • 6707406 - LEVER

13 17C628

  • 17C628 - BOLT

14 6563914

  • 6563914 - WASHER

15 61D6

  • 61D6 - NUT HEX FINISHED GR5

16 6564245

  • 6564245 - LINK

17 25E29

  • 25E29 - WSHR

18 6564244

  • 6564244 - LEVER

19 17C632

  • 17C632 - BOLT 5

20 6564243

  • 6564243 - LEVER HUB

21 662342

  • 662342 - PIN

22 6564239

  • 6564239 - SPRING

23 6564241

  • 6564241 - GUIDE ASSEMBLY

24 6565191

  • 6565191 - BOLT

25 6564242

  • 6564242 - MOUNT

26 57D6

  • 57D6 - NUT HEX FLNG GR8

27 31C624

  • 31C624 - BOLT

28 6630170

  • 6630170 - KEY

29 6728036

  • 6728036 - SPACER
  • steering - Use W/Ref. 9
