Bobcat
/
443
/

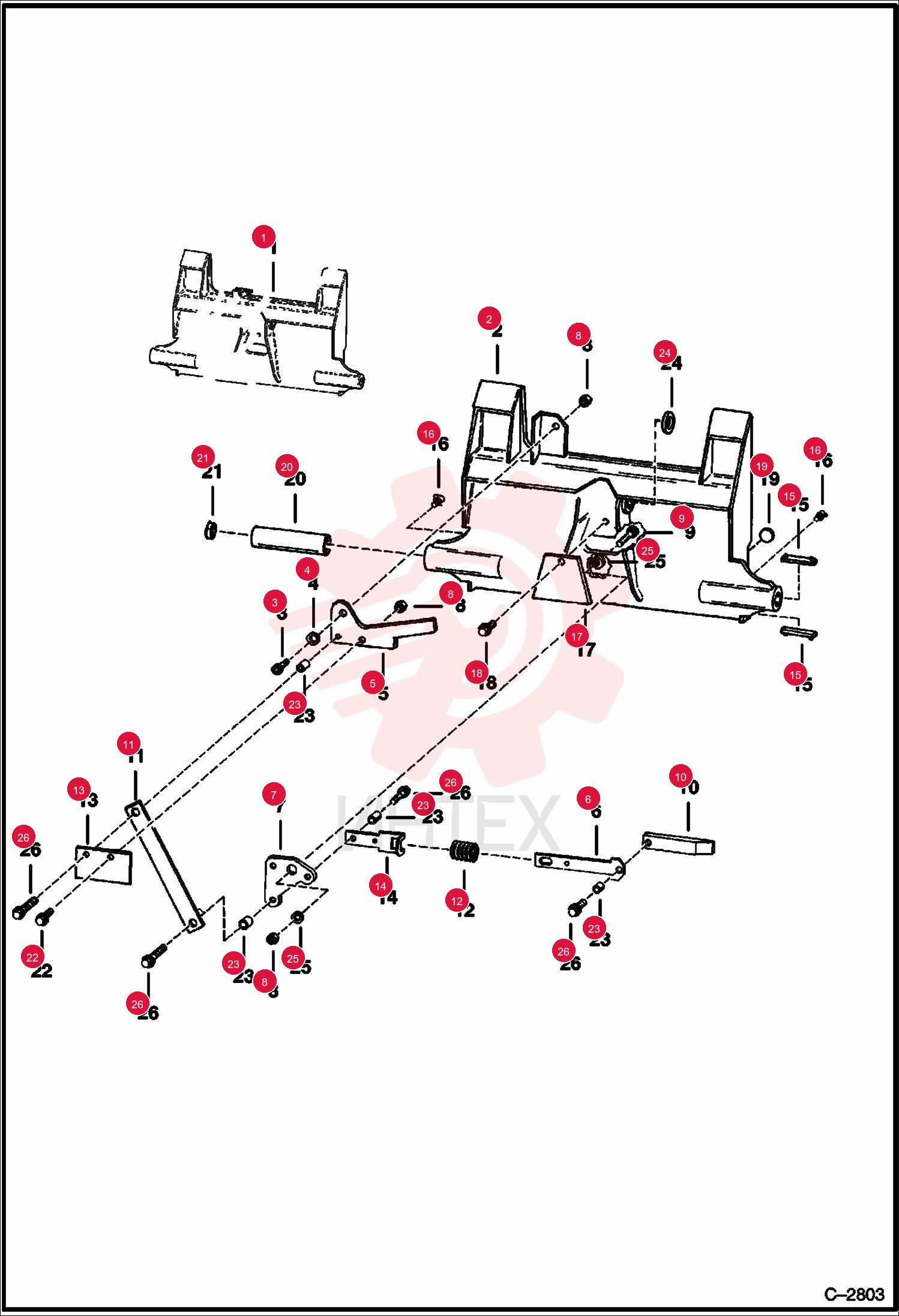

BOLT 38C810 (2)

BOLT 38C810 (2)

BOLT 38C810 (2)

1 38C810

  • 38C810 - BOLT
  • Was 661846B

2 25E21

  • 25E21 - WASHER FLAT PLAIN

3 6529720

  • 6529720 - LEVER

4 6529716

  • 6529716 - LINK WEDG
  • wedge

5 6531832

  • 6531832 - BELLCRANK

6 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

7 17C632

  • 17C632 - BOLT 5

8 6563909

  • 6563909 - WEDGE

9 6531833

  • 6531833 - LINK
  • 11.20'' (284 mm)

10 6565156

  • 6565156 - SPRING

11 6529721

  • 6529721 - SEAL

12 6529718

  • 6529718 - RETAINER
  • spring

13 6562026

  • 6562026 - INSERT 5

14 12H15

  • 12H15 - FTG GREASE 90

15 6565192

  • 6565192 - COVER

16 84G3712

  • 84G3712 - SCREW THD ROLLING TT

17 215842

  • 215842 - PLUG

18 6565160

  • 6565160 - BUSHING
  • weld on

19 1990599

  • 1990599 - GREASE SEAL

20 35C616

  • 35C616 - SCREW FLGD HEX CAP

21 6636022

  • 6636022 - SPACER

22 6563830

  • 6563830 - BUSHING
  • weld-on

23 25E18

  • 25E18 - WASHER FLAT PLAIN

24 35C612

  • 35C612 - SCREW FLGD HEX CAP
