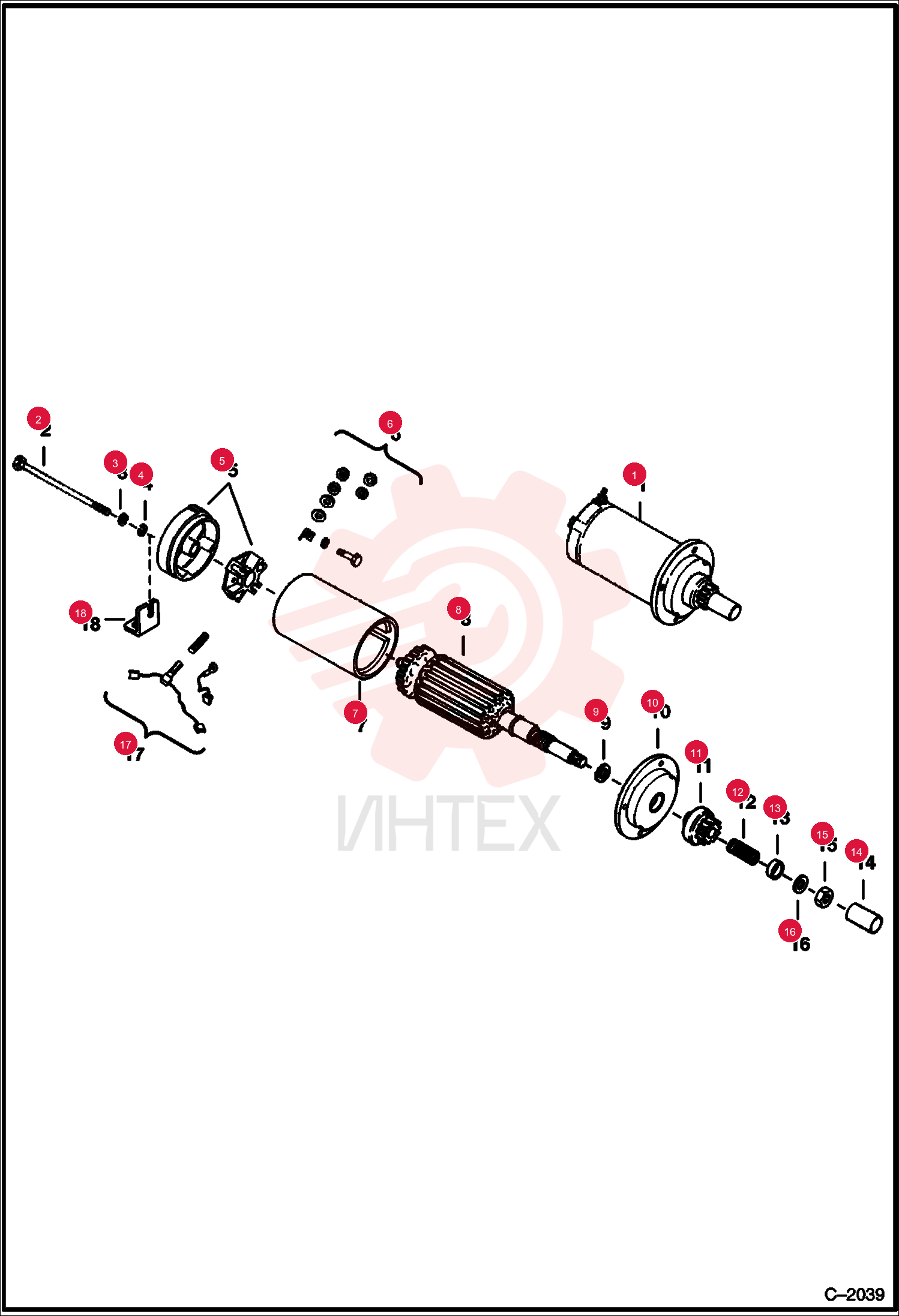

STARTER 6512287 (2)

STARTER 6512287 (2)

STARTER 6512287 (2)

1 6512287

  • 6512287 - STARTER

2 6512366

  • 6512366 - BOLT

3 6512372

  • 6512372 - WASHER

4 6512371

  • 6512371 - WASHER

5 6663995

  • 6663995 - CAP
  • commutator end - W/Ref. 6 & 17 - Was 6512369

6 6512367

  • 6512367 - CAP
  • drive end

7 6677325

  • 6677325 - KIT/STRTR REPAIR
  • drive

8 6512324

  • 6512324 - COVER
  • dust

9 6512193

  • 6512193 - KIT
  • BRUSH

10 6561936

  • 6561936 - BRKT STRT
