540
/

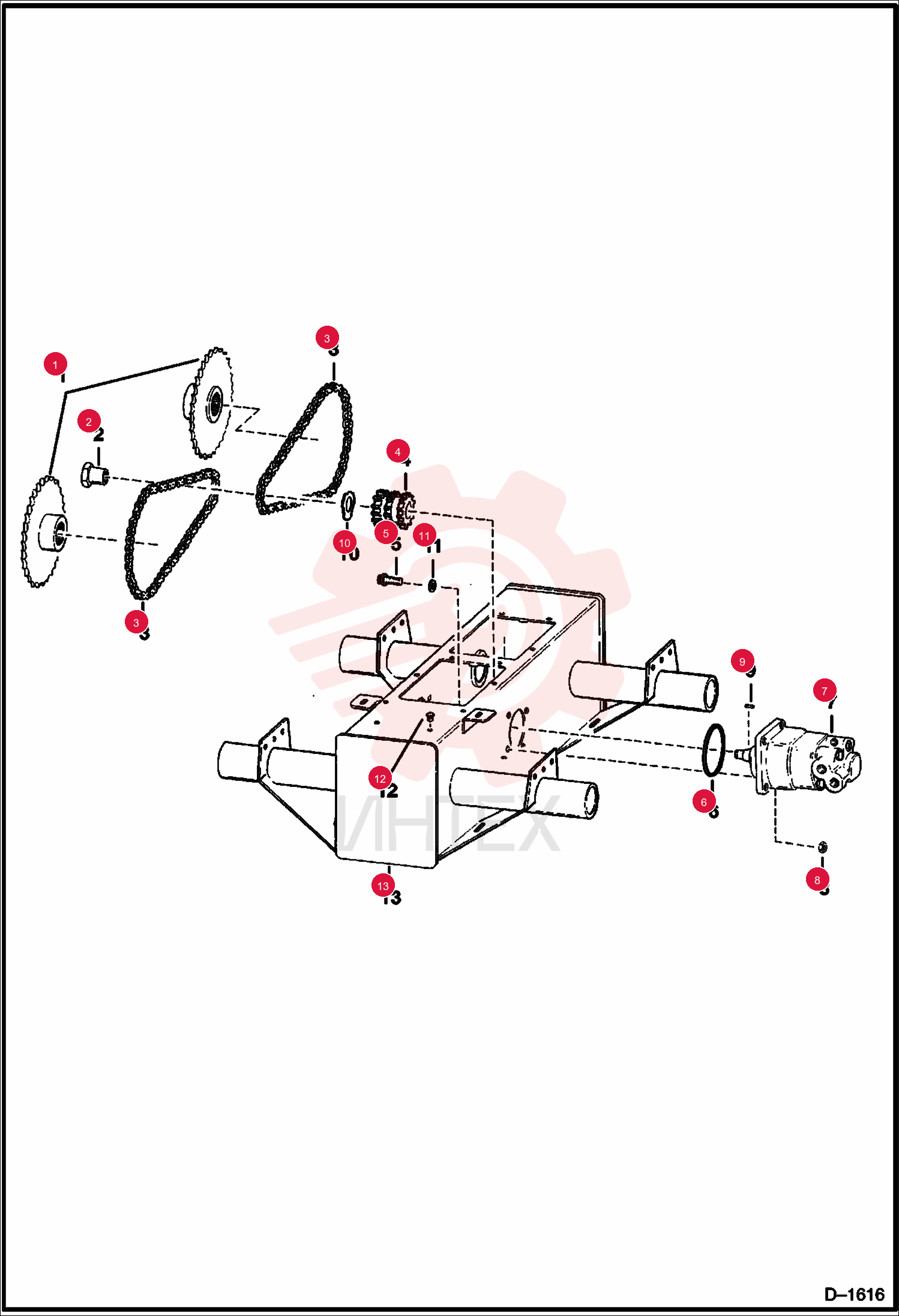

LINK 6515191

LINK 6515191

LINK 6515191

1 6515191

  • 6515191 - LINK
  • connector - Diamond - Use W/ 6630205 chain

2 6690990

  • 6690990 - CHAIN
  • Tsubaki

3 6630205

  • 6630205 - CHAIN
  • DRIVE
  • Diamond

4 6691089

  • 6691089 - LINK
  • connector - Tsubaki - Use W/ 6690990 chain

5 6552779

  • 6552779 - NUT

6 6548891

  • 6548891 - SPROCKET

7 6552780

  • 6552780 - SPROCKET CLUSTER

8 18C828

  • 18C828 - CAPSCREW

9 25K30424

  • 25K30424 - O RING 10

10 86D8

  • 86D8 - NUT PRETRQ HEX LOCK

11 6630089

  • 6630089 - KEY

12 6557937

  • 6557937 - WASHER

13 6557929

  • 6557929 - WASHER

14 6558506

  • 6558506 - PLUG
  • breather

15 6564299

  • 6564299 - CHAINCASE

16 6565284

  • 6565284 - CASE HSG
