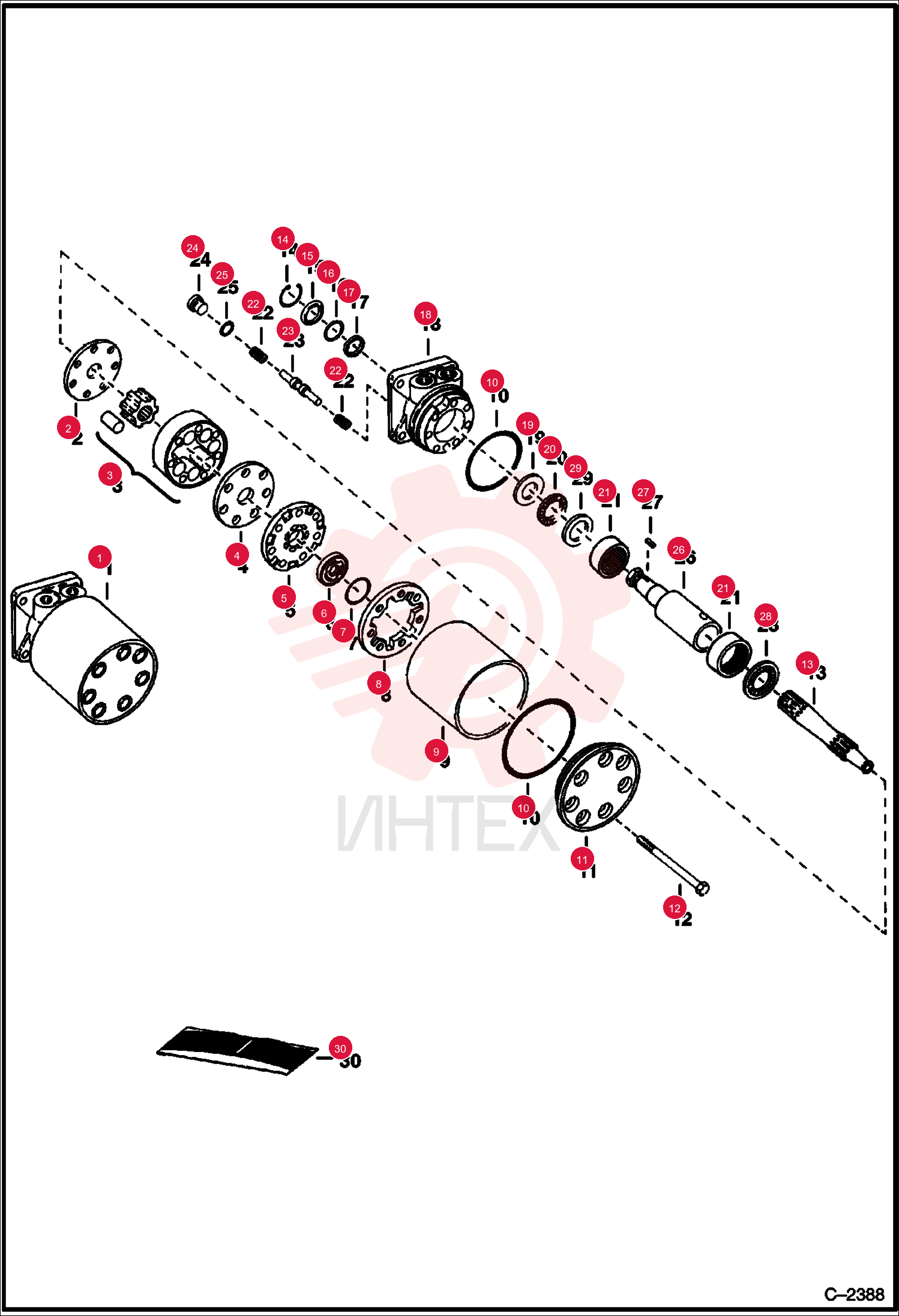

PLATE 6512296

PLATE 6512296

PLATE 6512296

1 6512296

  • 6512296 - PLATE
  • wear

2 6512299

  • 6512299 - MANIFOLD

3 6512302

  • 6512302 - COVER

4 6598050

  • 6598050 - HOUSING

5 6514066

  • 6514066 - WASHER
  • thrust

6 6514052

  • 6514052 - BEARING
  • thrust

7 6514065

  • 6514065 - BEARING
  • needle

8 6513543

  • 6513543 - SPOOL
  • spool - Closed Center

9 47K3

  • 47K3 - PLUG
  • W/Ref. 25

10 6514064

  • 6514064 - O-RING

11 6514053

  • 6514053 - KEY
  • square

12 6514056

  • 6514056 - BEARING
  • thrust

13 6598048

  • 6598048 - WASHER
  • thrust

14 6514896

  • 6514896 - SEAL KIT
  • Ref. 7
  • 10 & 14 - 17
