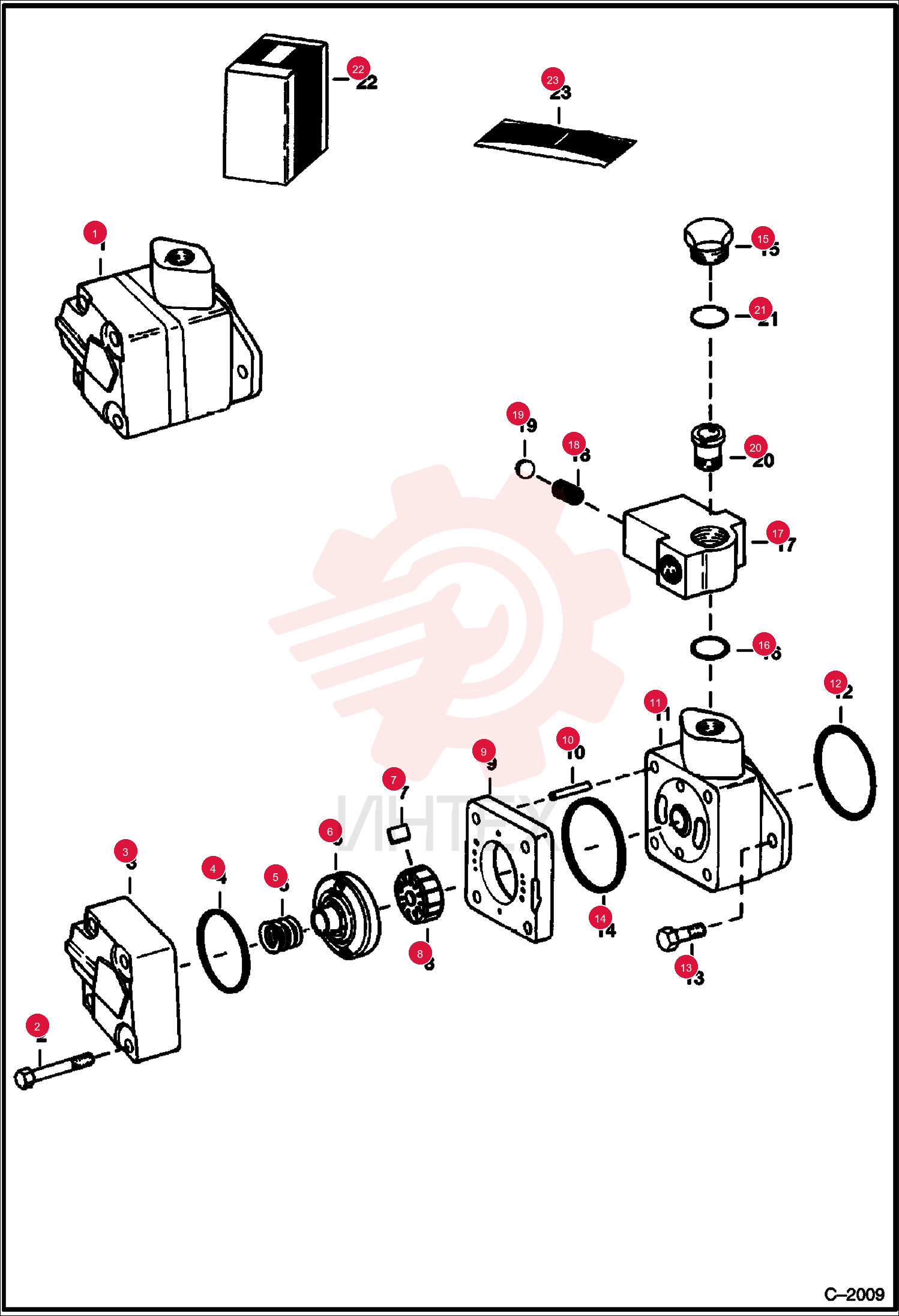

PUMP 6512594

PUMP 6512594

PUMP 6512594

1 6512594

  • 6512594 - PUMP
  • Ref. 2 - 13

2 17C648

  • 17C648 - SCREW HEX CAP

3 992510

  • 992510 - SPRING

4 6519704

  • 6519704 - O-RING

5 17C616

  • 17C616 - BOLT 5

6 79K16

  • 79K16 - O RING 10
  • Was 91F000010B

7 6559533

  • 6559533 - BLOCK

8 6559896

  • 6559896 - SPRING

9 6515078

  • 6515078 - POPPET

10 6560137

  • 6560137 - RETAINER

11 79K24

  • 79K24 - O RING 10
  • Was 91F000012B

12 992512

  • 992512 - KIT
  • cartridge - Ref. 7 - 9

13 6551834

  • 6551834 - SEAL KIT
  • Ref. 4
  • 12 & 14
