Bobcat
/
963
/

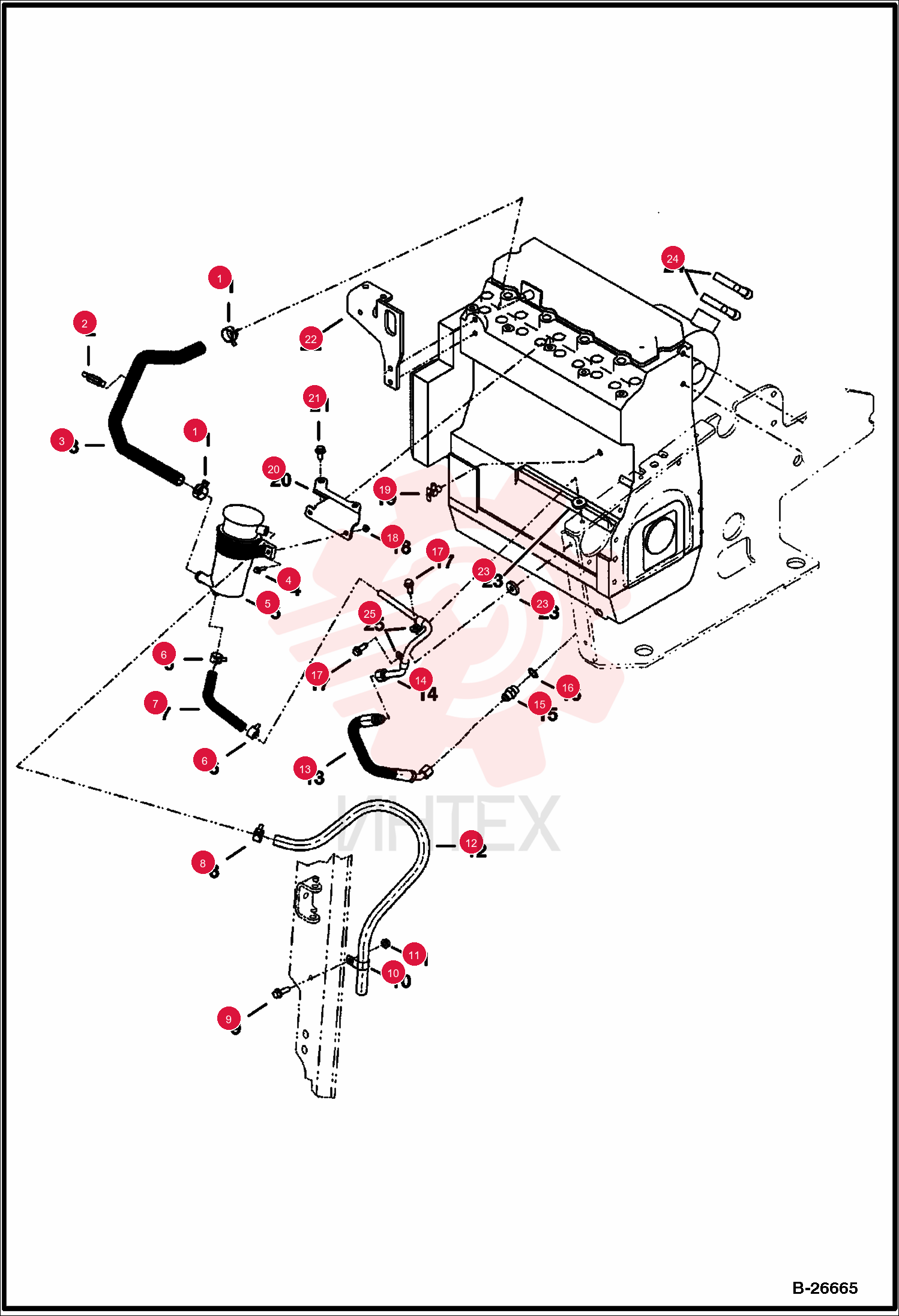

HOSECLAMP 5HM29 (1)

HOSECLAMP 5HM29 (1)

HOSECLAMP 5HM29 (1)

1 5HM29

  • 5HM29 - HOSECLAMP
  • Was 5HM00027B

2 6675704

  • 6675704 - CLIP

3 6675703

  • 6675703 - HOSE

4 29CM625

  • 29CM625 - SCREW FLGD HEX CAP

5 6675702

  • 6675702 - FILTER OIL SEPARATOR

6 5HM20

  • 5HM20 - HOSE CLAMP

7 6807278

  • 6807278 - HOSE

8 5HM23

  • 5HM23 - HOSE CLMP CONST TENS

9 35C620

  • 35C620 - BOLT 5

10 30H50

  • 30H50 - CLAMP

11 57D6

  • 57D6 - NUT HEX FLNG GR8

12 6672296

  • 6672296 - HOSE
  • breather

13 6671651

  • 6671651 - SPRING
  • inside of hose

14 6807277

  • 6807277 - HOSE

15 15K6

  • 15K6 - ADAPTER
  • W/Ref. 16

16 6571723

  • 6571723 - WASHER

17 84G3716

  • 84G3716 - SCREW THD ROLLING TT

18 43DM6

  • 43DM6 - NUT FLANGED HEX

19 6513679

  • 6513679 - DRAINCOCK VALVE

20 6807275

  • 6807275 - BRACKET BREATHER

21 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

22 6800742

  • 6800742 - BRACKET

23 6704484

  • 6704484 - WASHER

24 42HC250

  • 42HC250 - CLAMP
  • Was 6671626

25 30H31

  • 30H31 - CLAMP 10
