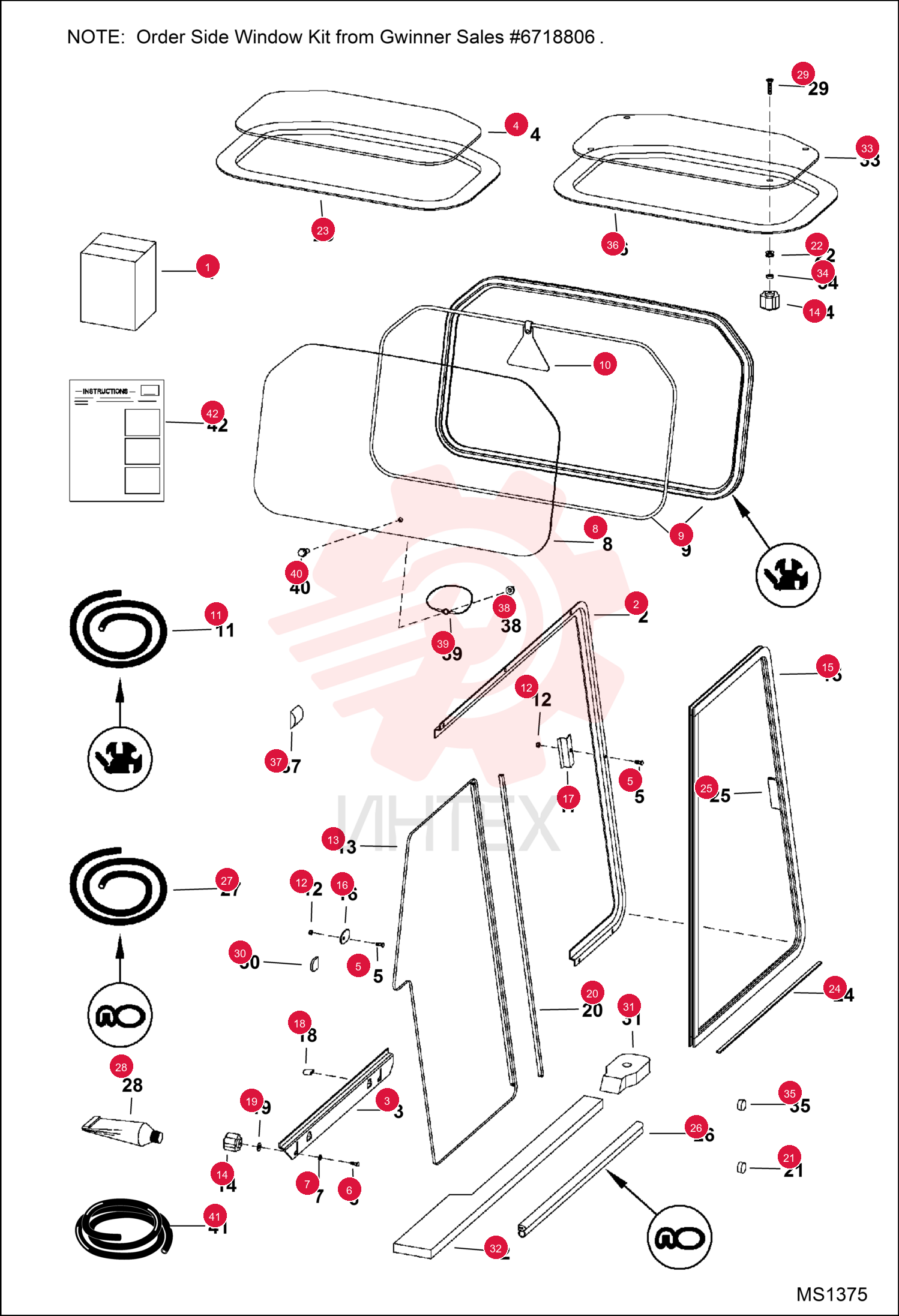

KIT, WINDOW SIDE 7131580

KIT, WINDOW SIDE 7131580

KIT, WINDOW SIDE 7131580

1 7131580

  • 7131580 - KIT
  • WINDOW SIDE
  • Ref. 2
  • 3
  • 5-7
  • 11-13
  • 15-32
  • 40 & 42

2 6718805

  • 6718805 - KIT
  • WINDOW REAR AND TOP
  • Ref. 8-10
  • 14
  • 33 & 41 - Was SALES

3 6717870

  • 6717870 - TRACK
  • LEFT
  • LH side

4 6717872

  • 6717872 - TRACK RIGHT
  • RH side

5 6717873

  • 6717873 - TRACK BOTTOM RH
  • RH bottom

6 6717871

  • 6717871 - TRACK BOTTOM LH
  • LH bottom

7 10C410

  • 10C410 - BOLT
  • carriage

8 10C416

  • 10C416 - BOLT
  • carriage

9 25E14

  • 25E14 - WASHER FLAT

10 6719413

  • 6719413 - WINDOW
  • REAR
  • rear - polycarbonate

11 6717874

  • 6717874 - WINDOW
  • CAB REAR
  • rear

12 6731478

  • 6731478 - TAG EXIT
  • Was 6559515

13 6554149

  • 6554149 - CORD
  • bulk - sold per foot

14 6675387

  • 6675387 - SEAL BULK
  • bulk - sold per foot - Was 6674524

15 59D4

  • 59D4 - NUT LOCK HEX PT

16 6691003

  • 6691003 - WINDOW
  • RIGHT REAR
  • rear - RH - W/Ref. 20 - Was 6674522

17 6691001

  • 6691001 - WINDOW
  • LEFT REAR
  • rear - LH - W/Ref. 20 - Was 6674520

18 6681614

  • 6681614 - KNOB
  • 0.69" deep thread

19 7003482

  • 7003482 - WINDOW RIGHT ASSEMBLY
  • sliding - W/Ref. 25 - Was 6691002

20 7003481

  • 7003481 - WINDOW LEFT ASSEMBLY
  • LH - sliding - W/Ref. 25- Was 6691000

21 6719063

  • 6719063 - STOP WINDOW

22 6719037

  • 6719037 - STRIKER

23 6719065

  • 6719065 - COVER TAB
  • tab

24 6675212

  • 6675212 - RETAINER BOLT
  • bolt

25 6675833

  • 6675833 - SEAL
  • rear window - dual wiper W/tape

26 6657719

  • 6657719 - PLUG
  • 0.75" dia hole

27 6675545

  • 6675545 - GROMMET

28 6678283

  • 6678283 - HANDLE
  • WINDOW SIDE
  • W/self adhesive strip

29 6555351

  • 6555351 - SEAL BULK/FT 15
  • bulk - sold per foot

30 91G420

  • 91G420 - SCREW
  • Use W/ 6681614 knob

31 91G416

  • 91G416 - SCREW
  • Use W/Ref. 14 (NLA/ 6674741 knob)

32 6677198

  • 6677198 - CAP VINYL
  • tab

33 6729011

  • 6729011 - SEAL
  • cab mount

34 6729009

  • 6729009 - SEAL
  • foam - RH

35 6729010

  • 6729010 - SEAL
  • foam - LH

36 7105034

  • 7105034 - WINDOW TOP
  • Was 7105035

37 6664085

  • 6664085 - BUSHING NYLON
  • nylon

38 6677973

  • 6677973 - PLUG
  • .22" dia hole

39 7103075

  • 7103075 - SEAL
  • side screen

40 83D5

  • 83D5 - LKNUT HEX FLG GR8

41 6555331

  • 6555331 - WIRE ROPE

42 35C516

  • 35C516 - SCREW HEX HD W/F GR5

43 6676927

  • 6676927 - FELT STRIP BULK/FT
  • bulk - sold per foot

44 6900853

  • 6900853 - INSTRUCTIONS
  • side windows

45 6900852

  • 6900852 - INSTRUCTIONS
