Главная
/
Бренды
/
Bobcat
/
963
/

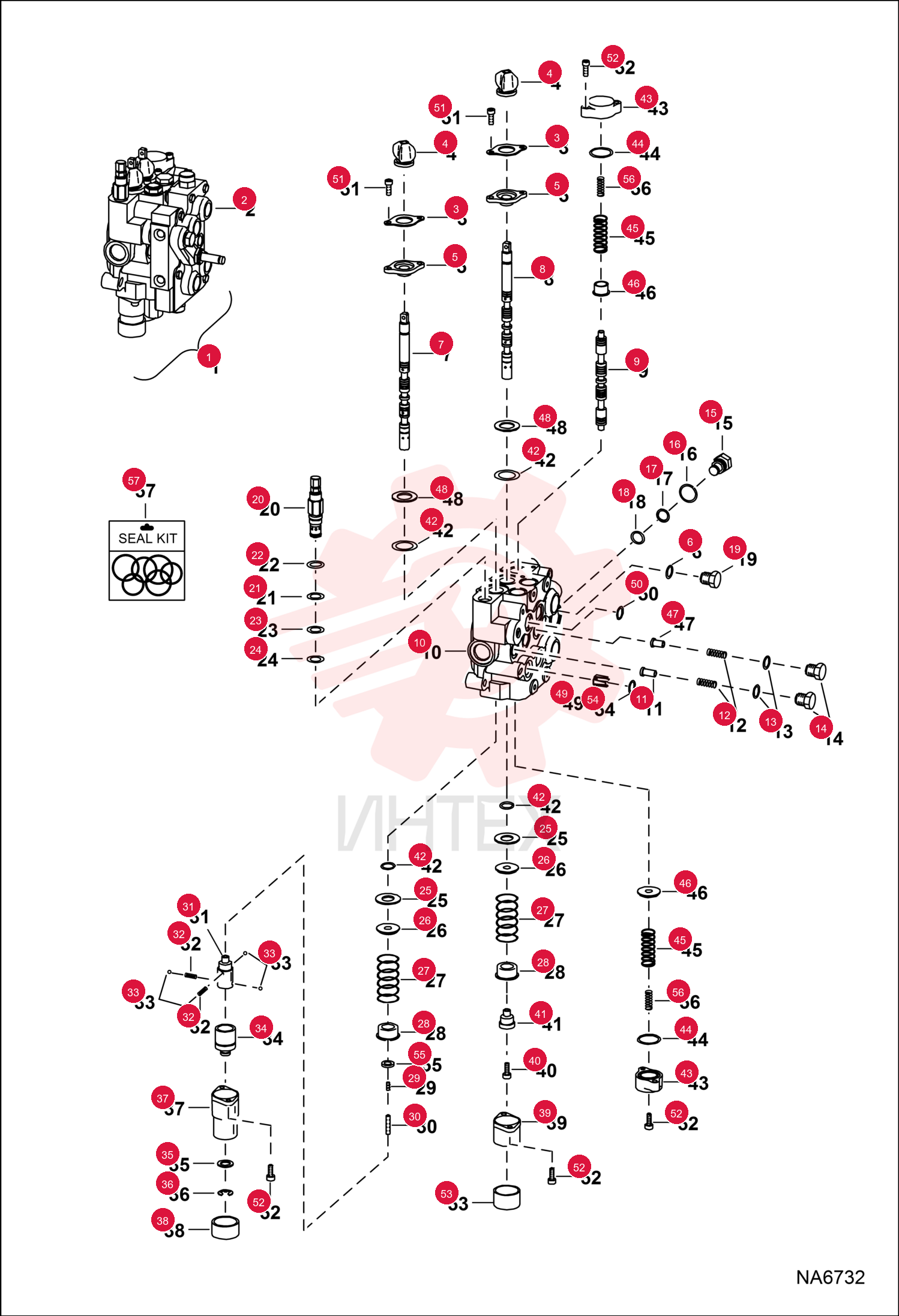

VALVE, CONTROL SERVICE 7222720 (2)

VALVE, CONTROL SERVICE 7222720 (2)

VALVE, CONTROL SERVICE 7222720 (2)

1 7222720

  • 7222720 - VALVE
  • CONTROL SERVICE
  • Ref. 2-56

2 6589564

  • 6589564 - RETAINER

3 6587763

  • 6587763 - BOOT

4 6589565

  • 6589565 - SEAL

5 95K12

  • 95K12 - O-RING

6 7108251

  • 7108251 - SPOOL
  • LIFT

7 7108242

  • 7108242 - SPOOL
  • TILT

8 7300937

  • 7300937 - SPOOL AUX
  • auxiliary - Was 6588074

9 6592115

  • 6592115 - SEAT
  • load check

10 6592117

  • 6592117 - SPRING
  • LOAD CHECK

11 79K8

  • 79K8 - O RING 10

12 6592116

  • 6592116 - NUT
  • load check

13 6592720

  • 6592720 - PLUG
  • W/Ref. 16-18

14 79K10

  • 79K10 - O RING 10

15 80K14

  • 80K14 - BKUP WSH5

16 58K014

  • 58K014 - O-RING 10
  • back-up washer required

17 6677106

  • 6677106 - O-RING
  • back-up washer not required

18 6816855

  • 6816855 - PLUG
  • W/Ref. 6

19 6676871

  • 6676871 - SEAL KIT

20 7219324

  • 7219324 - VALVE
  • RELIEF
  • W/ O-rings - pressure to be set in field - Was 6686360

21 6595663

  • 6595663 - BUSHING

22 7211397

  • 7211397 - WASHER
  • SPRING

23 6587580

  • 6587580 - SPRING

24 6592100

  • 6592100 - COLLAR

25 6596807

  • 6596807 - PLUG
  • plastic - 0.46" long

26 6586918

  • 6586918 - SCREW
  • DETENT

27 6587575

  • 6587575 - ADAPTER

28 6592107

  • 6592107 - SPRING
  • DETENT 5

29 6592105

  • 6592105 - BALL 5

30 6531270

  • 6531270 - SLEEVE
  • DETENT

31 6592098

  • 6592098 - WASHER

32 799119

  • 799119 - RING

33 6589226

  • 6589226 - COVER
  • END
  • 0.63" flange

34 6660644

  • 6660644 - CAP

35 7101345

  • 7101345 - BONNET
  • DETENT HYD VALVE

36 30G416

  • 30G416 - BOLT

37 6592109

  • 6592109 - ADAPTER

38 6683274

  • 6683274 - SEAL
  • SPOOL 10
  • - Was 7031367

39 6588781

  • 6588781 - END CAP
  • .87" thick

40 58K124

  • 58K124 - O RING 10

41 6596332

  • 6596332 - SPRING

42 7108780

  • 7108780 - SLEEVE

43 6596569

  • 6596569 - SEAT

44 1K127

  • 1K127 - O-RING 10

45 6800124

  • 6800124 - RESTRICTOR

46 55K204

  • 55K204 - O RING 10

47 29G412

  • 29G412 - BOLT

48 29G416

  • 29G416 - BOLT
  • 1" long

49 6662848

  • 6662848 - CAP

50 55K212

  • 55K212 - O RING 10

51 54K20002

  • 54K20002 - O'RING 10

52 6595131

  • 6595131 - SPRING

53 6816250

  • 6816250 - KIT
  • SEAL
  • one spool - Ref. 4
  • 29
  • 42
  • 48
  • 51 & 52

54 6816253

  • 6816253 - KIT
  • SEAL
  • complete - Ref. 4
  • 13
  • 16-18
  • 21-24
  • 42
  • 44
  • 48
  • 50 & 54 - also Order 6816250 seal kit

55 6632279

  • 6632279 - KIT
  • SEAL
  • main relief - Ref. 21-24

56 6809425

  • 6809425 - SEAL KIT
  • Ref. 13 & 16-18
