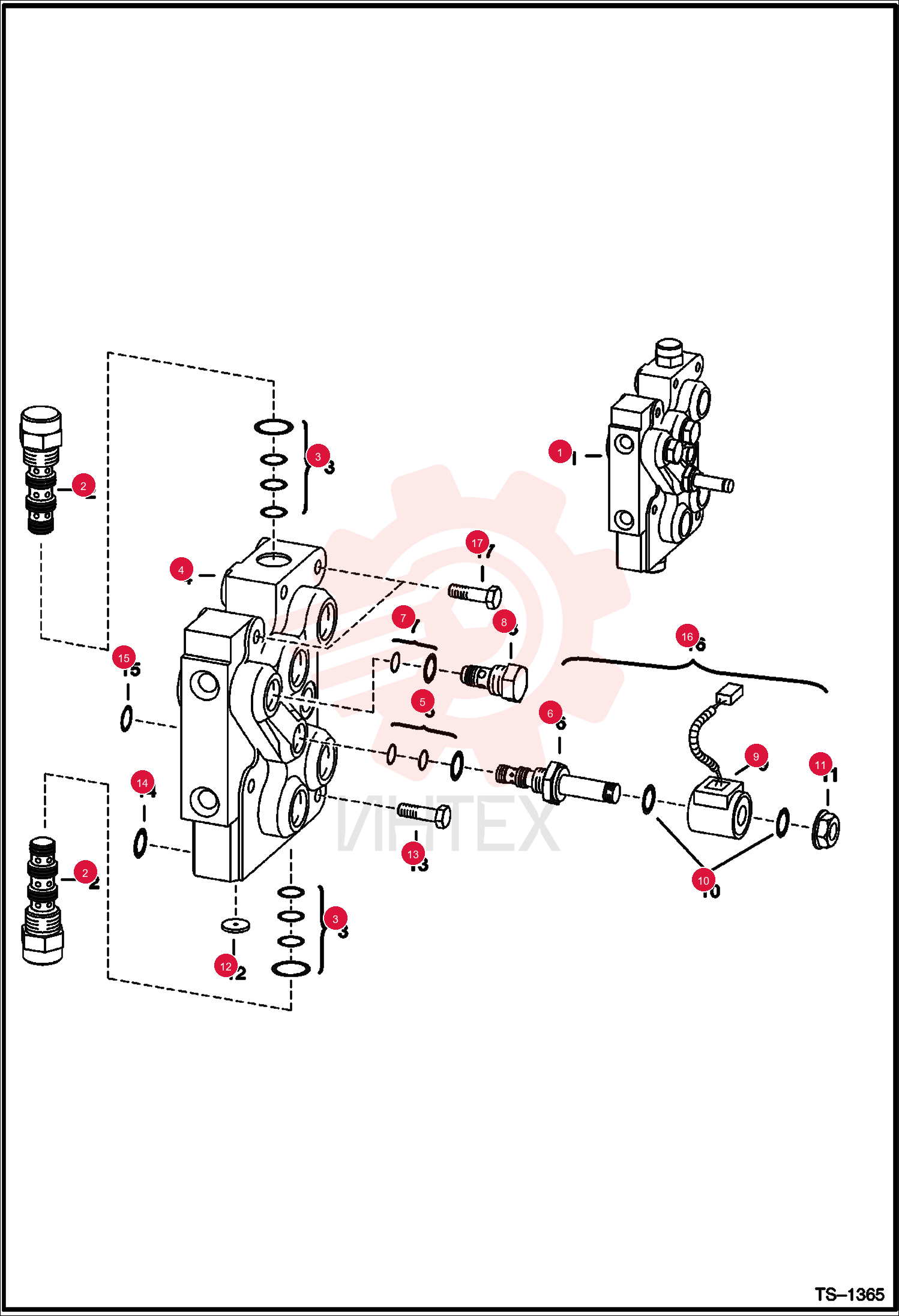

VALVE, BICS 7297071 (1)
1 7297071
- 7297071 - VALVE
- BICS
- E series coil compatible - Ref. 2-5
- 6 (7272731 stem)
- 7 & 8
2 6689739
- 6689739 - VALVE
- pilot operated - Was 6668765
3 6690431
- 6690431 - KIT
- SEAL
- Was 6669734
4 6669732
- 6669732 - KIT
- SEAL
5 6667687
- 6667687 - VALVE
- STEM SOLENOID
- 25
- 4 mm (1") across nut flat surface - D series coil compatible
6 7272731
- 7272731 - VALVE
- SOLENOID
- .87" across nut flat surface - E series coil compatible
7 6669733
- 6669733 - SEAL KIT
8 6669057
- 6669057 - VALVE
- CHECK
- filter
9 6671025
- 6671025 - COIL
- SOLENOID 08-12
- D series - one red & one black wire
10 7272732
- 7272732 - COIL SOLENOID ASSEMBLY
- E series - two red wires
11 54K20028
- 54K20028 - O RING 10
- pwm
12 6668820
- 6668820 - NUT
- D series coil compatible
13 7020647
- 7020647 - NUT
- E series coil compatible
14 6668791
- 6668791 - ORIFICE
15 43C532
- 43C532 - BOLT
- Use 6 bolts to mount down valve body
16 43C532
- 43C532 - BOLT
- Use W/Ref. 17
17 55K212
- 55K212 - O RING 10
18 55K204
- 55K204 - O RING 10
19 7304852
- 7304852 - VALVE
- CARTRIDGE
- Ref. 5
- 6 (7272731 stem)
- 9 (7272732 coil)
- 10 & 11 (7020647 nut)
20 7304852
- 7304852 - VALVE
- CARTRIDGE
- Ref. 5
- 6 (6667687 stem)
- 9 (6671025 coil)
- 10 & 11 (6668820 nut) - Was 6672471
21 43C524
- 43C524 - BOLT
- Use W/Ref. 13
