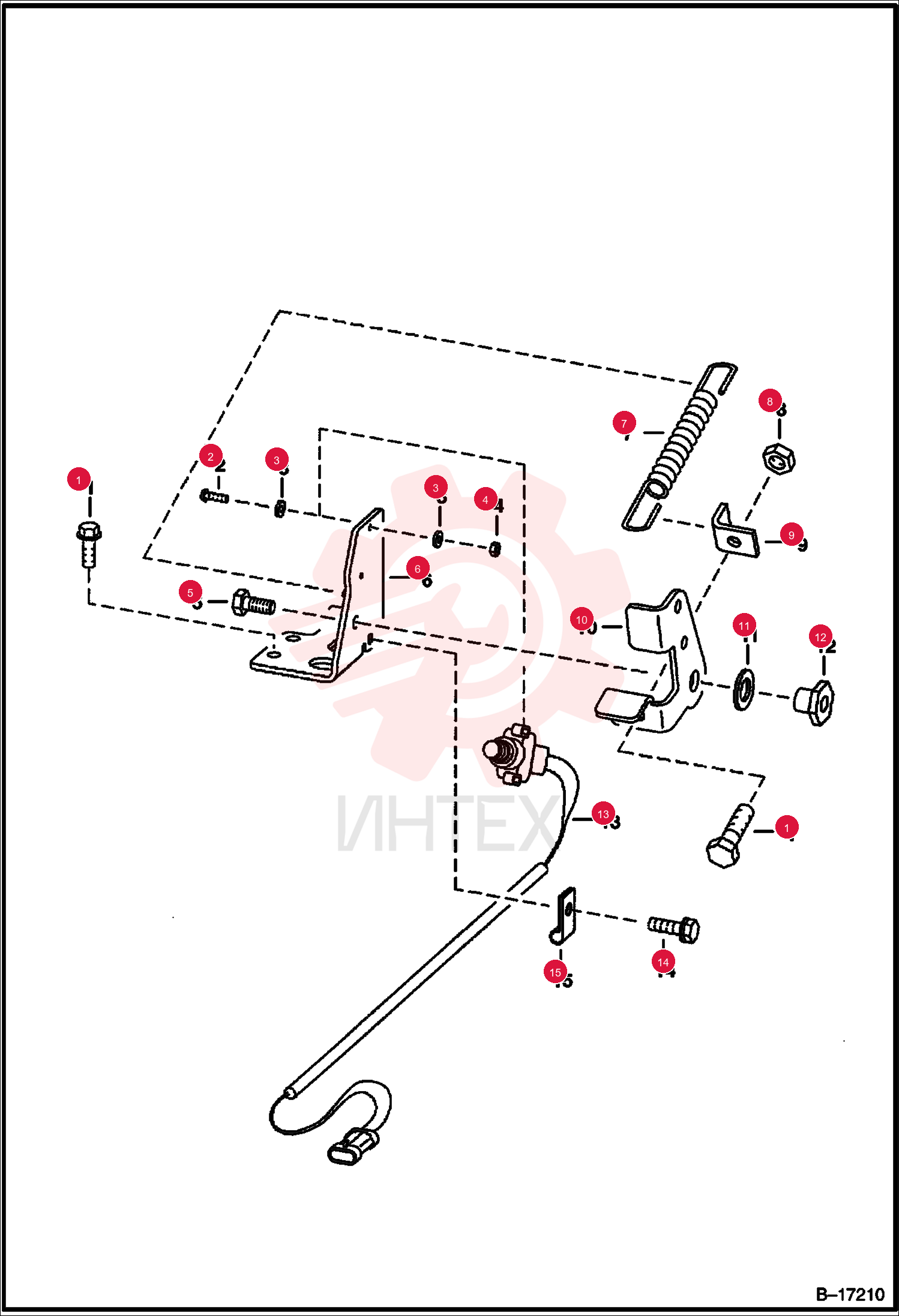

SCREW THD ROLLING TT 84G3712

SCREW THD ROLLING TT 84G3712

SCREW THD ROLLING TT 84G3712

1 84G3712

  • 84G3712 - SCREW THD ROLLING TT

2 23G812

  • 23G812 - SCREW

3 25E8

  • 25E8 - WSHR

4 12D8

  • 12D8 - NUT HEX MACH SCREW

5 17C610

  • 17C610 - BOLT

6 6707313

  • 6707313 - MOUNT

7 6585860

  • 6585860 - SPRING

8 95D6

  • 95D6 - NUT HEXAGON

9 6707315

  • 6707315 - MOUNT

10 6707314

  • 6707314 - PEDAL
  • brake

11 6700170

  • 6700170 - WASHER
  • plastic

12 6559479

  • 6559479 - NUT RETAINING

13 6664880

  • 6664880 - SWITCH

14 6707337

  • 6707337 - SWITCH
  • LOCK TRACTION
  • w/cover and connector

15 17C620

  • 17C620 - BOLT

16 30H23

  • 30H23 - CLAMP
