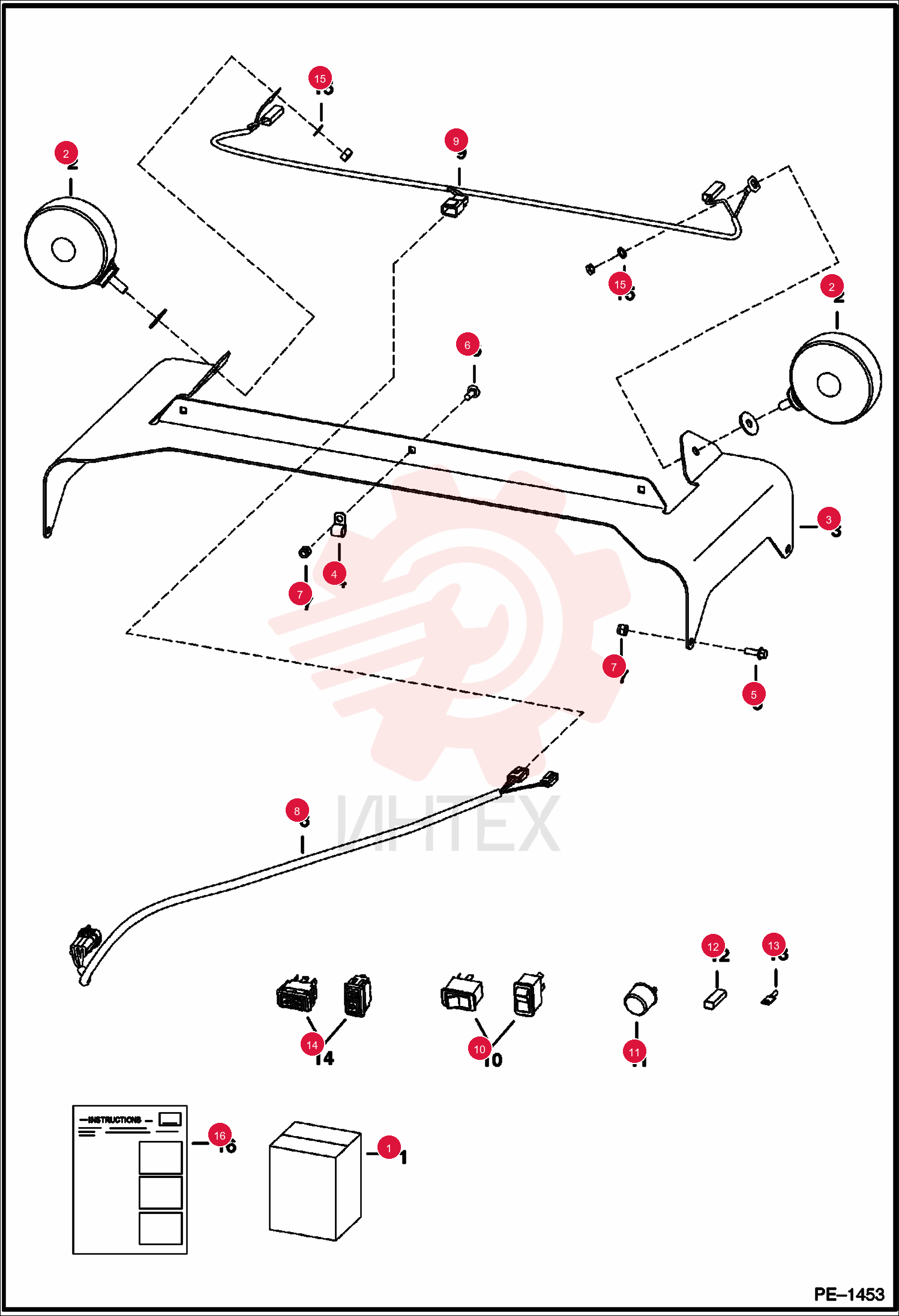

KIT, FLASHER 4-WAY

KIT, FLASHER 4-WAY

KIT, FLASHER 4-WAY

1 6718411

  • 6718411 - KIT
  • FLASHER 4-WAY
  • Ref. 2-16 - if loader is not equipped W/deluxe cab option Also Order 6727468 harness

2 6517516

  • 6517516 - LGHT ASY

3 6718326

  • 6718326 - MOUNT

4 30H21

  • 30H21 - CLAMP 10

5 35C412

  • 35C412 - SCREW FLGD HEX CAP

6 37C412

  • 37C412 - BOLT

7 59D4

  • 59D4 - NUT LOCK HEX PT

8 6718872

  • 6718872 - HARNESS
  • cab exterior

9 6718873

  • 6718873 - HARNESS
  • 4-way flasher

10 6668815

  • 6668815 - SWITCH
  • vertical

11 6665316

  • 6665316 - SWITCH
  • horizontal

12 6557904

  • 6557904 - FLASHER

13 614142

  • 614142 - SLEEVE 10

14 6515131

  • 6515131 - BLADE 5

15 6676872

  • 6676872 - INDICATOR
  • TURN SIGNAL
  • vertical

16 6675835

  • 6675835 - INDICATOR
  • TURN SIGNAL
  • horizontal

17 6E5

  • 6E5 - WASHER INTL T LOCK
  • lock

18 6900848

  • 6900848 - INSTRUCTIONS
